Search › Model › KP39
KP39

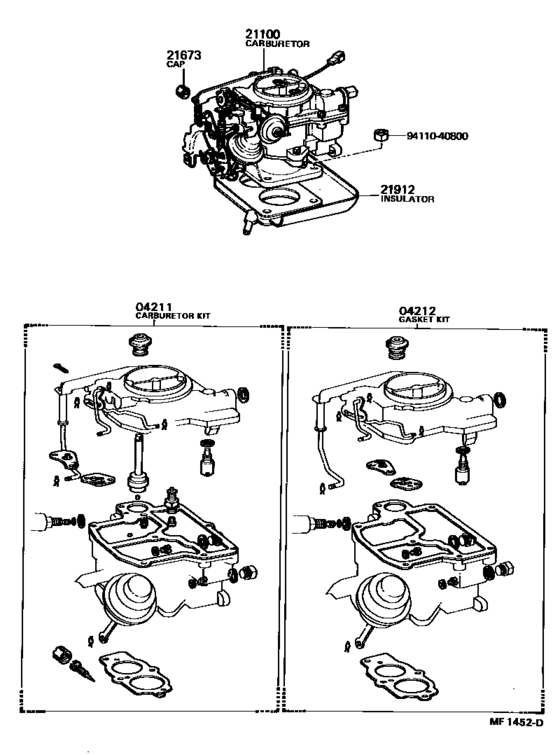

Carburetor Assembly ([11.1975 - ] (7511- )) 10
| # | OEM | Part name |
|---|---|---|
| 4211 | 04211-13081 | Carburetor Kit |
| 4211 | 04211-13083 | Carburetor Kit |
| 4212 | 04212-13022 | Gasket Kit, Carburetor |
| 4212 | 04212-13023 | Gasket Kit, Carburetor |
| 21100 | 21100-13410 | Carburetor Assy |
| 21673 | 21673-13280 | Cap, Idle Limit |
| 21912 | 21912-13031 | Insulator, Carburetor Heat |
| 21912 | 21912-13070 | Insulator, Carburetor Heat |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 04211-13081 | Carburetor Kit | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 04211-13083 | Carburetor Kit | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 04212-13022 | Gasket Kit, Carburetor | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 04212-13023 | Gasket Kit, Carburetor | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 21100-13410 | Carburetor Assy | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 21673-13280 | Cap, Idle Limit | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 21912-13031 | Insulator, Carburetor Heat | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 21912-13070 | Insulator, Carburetor Heat | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 94110-40800 | Nut(For Steering Damper) | Carburetor Assembly ([11.1975 - ] (7511- )) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Carburetor Assembly ([11.1975 - ] (7511- )) |
