KP37

Toyota PUBLICA · 1972 · 3,034 parts · 141 categories
KP37 ×

← Back to categories

3,034 items

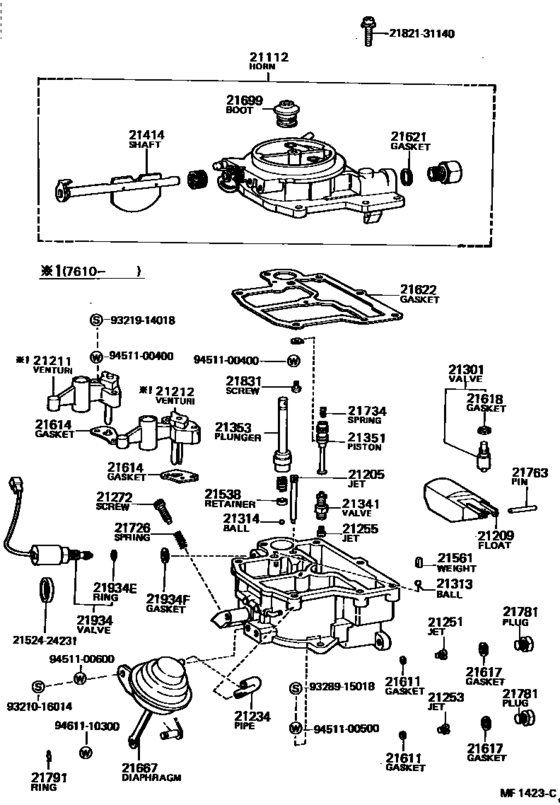

Carburetor ([11.1975 - 08.1978] (7511-7808)3KHJ) 119
#OEMPart name
21061 21061-24360 Valve Sub-Assy, Thermostatic
21061 21061-24500 Valve Sub-Assy, Thermostatic
21061 21061-13060 Valve Sub-Assy, Thermostatic
21112 21012-24360 Horn, Air
21112 21112-24500 Horn, Air
21191 21191-24361 Opener
21191 21191-24362 Opener
21191 21699-24360 Boot(For Opener)
21205 21205-13010 Jet Sub-Assy, Slow
21205 90999-44143 Jet Sub-Assy, Slow - POWER
21209 21209-24010 Float Sub-Assy
21209 21209-24480 Float Sub-Assy
21211 21211-24361 Venturi, 1St Small
21212 21212-24360 Venturi, 2Nd Small
21234 21234-24230 Pipe Or Hose
21234 90079-71001 Pipe Or Hose, Connecting
21234 21234-24360 Pipe Or Hose
21234 21234-24361 Pipe Or Hose
21235 21234-13010 Pipe Or Hose, Connecting
21235 21234-24160 Pipe Or Hose, Connecting
21235 21235-24231 Pipe Or Hose, Connecting
21235 21235-24360 Pipe Or Hose, Connecting
21251 90999-41086 Jet, 1St Main
21253 90999-42147 Jet, 2Nd Main
21253 90999-41147 Jet, 2Nd Main
21253 90999-42150 Jet, 2Nd Main
21253 90999-41150 Jet, 2Nd Main - 1ST MAIN
21255 90999-43060 Jet, Power
21271 21271-24100 Screw, Idle Adjusting
21271 21271-24470 Screw, Idle Adjusting
21271 21271-13270 Screw, Idle Adjusting
21272 21273-24230 Screw, 1St Idle Adjusting - THROTTLE ADJUSTING
21273 21814-33010 Screw, 1St Idle Adjusting
21275 21275-24360 Screw, Adjusting
21301 21301-24030 Valve Sub-Assy, Needle
21301 21301-24360 Valve Sub-Assy, Needle
21301 21301-24500 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-60010 Ball, Steel, No.2(For Pump Plunger)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21341 21341-24030 Valve, Power
21351 21351-33080 Piston, Power
21353 21305-22011 Plunger, Pump
21414 21054-24010 Shaft, Choke
21414 21403-22011 Shaft, Choke
21538 21538-31010 Retainer, Ball Check
21561 21561-22010 Weight, Pump Discharge
21611 21611-22010 Gasket, Main Jet
21614 21614-22010 Gasket, Venturi
21614 21614-24580 Gasket, Venturi
21614 21614-24360 Gasket, Venturi
21614 21614-13430 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-24030 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-24011 Gasket, Air Horn
21622 21622-24580 Gasket, Air Horn
21622 21622-24360 Gasket, Air Horn
21622 21622-13430 Gasket, Air Horn
21623 21623-24300 Gasket, Body Flange
21623 21623-24360 Gasket, Body Flange
21667 21667-24360 Diaphragm
21679 21679-24350 Positioner
21679 21679-24360 Positioner
21699 21699-21061 Boot(For Pump Plunger)
21699 21699-28150 Boot(For Pump Plunger)
21723 21723-21030 Spring, Idle Adjusting
21724 21726-40010 Spring, Throttle Adjusting
21726 21864-24230 Spring, Throttle Adjusting
21731 21864-24010 Spring, Throttle Adjusting
21734 21734-24030 Spring, Power Piston
21734 21734-24031 Spring, Power Piston
21735 21735-24030 Spring, Pump Arm
21735 21735-24360 Spring, Pump Arm
21756 21756-24360 Spring, Back(For Throttle Shaft)
21756 21865-24360 Spring, Back(For Throttle Shaft)
21763 21763-29270 Pin, Float Lever
21763 21763-61330 Pin, Float Lever
21763 21763-38010 Pin, Float Lever
21781 21781-30020 Plug, Main Passage(For Carburetor Jet)
21781 21781-16510 Plug, Main Passage(For Carburetor Jet)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21826 21826-24470 Screw, Pump Arm Set
21826 21826-31012 Screw, Pump Arm Set
21828 21841-24360 Screw, 1St Idle Set
21828 21841-24361 Screw, 1St Idle Set
21831 21842-33010 Screw, Power Piston Stop
21834 21834-31010 Screw, Set, No.1(For Carburetor Body Set)
21835 21835-40010 Screw, Set, No.1(For Carburetor Body Set)
21852 21852-30010 Nut, Throttle Lever Set
21864 21864-24360 Spring(For 1St Throttle Arm)
21865 21756-24300 Spring
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-12030 Solenoid, Throttle Valve
21934 21062-24360 Solenoid, Throttle Valve
21934 21062-38011 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
2152424231 21524-24231 Bracket(For Dash Pot)
2152424231 21524-24230 Bracket(For Dash Pot)
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2183244010 21832-44010 Screw(For Choke Lever Adapter Set) - THERMOSTAT CASE SET
2184424230 21844-24230 Screw, Choke Lever
2187321010 21873-21010 Washer, Plunger
9321016014 93210-16014 SCREW
9321914018 93219-14018 New Genuine Part
9321915025 93219-15025 New Genuine Part
9328915018 93289-15018 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100400 94511-00400 WASHERSPRING
9451100500 94511-00500 Washer, Cover Set, No.2
9451100600 94511-00600 Washer, Lock, No.2
9451100800 94511-00800 WASHERSPRING
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
9538101610 95381-01610 New Genuine Part
