KP31

Toyota PUBLICA · 1970 · 4,931 parts · 176 categories
KP31 ×

← Back to categories

4,931 items

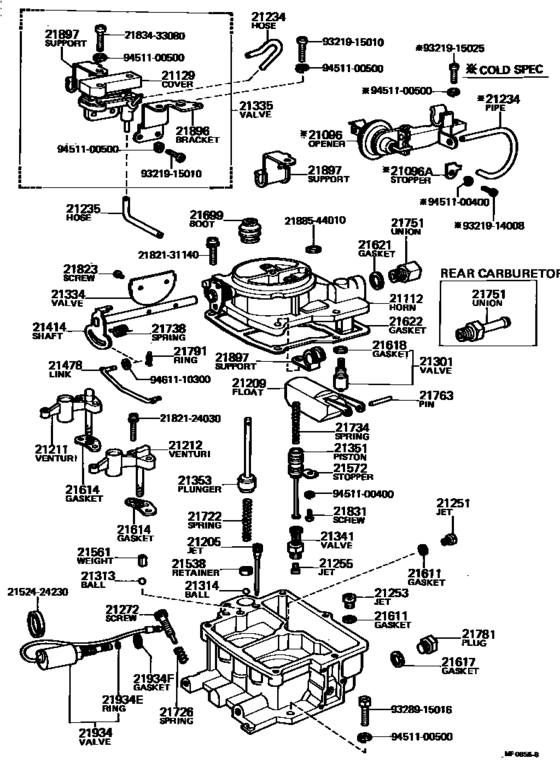

Carburetor ([04.1973 - 11.1975] (7304-7511)3KB#) 287
#OEMPart name
21096 21191-24121 Opener Sub-Assy, Throttle
21096 21191-24122 Opener Sub-Assy, Throttle
21096 21191-24130 Opener Sub-Assy, Throttle
21096 21191-24131 Opener Sub-Assy, Throttle
21096 21191-24280 Opener Sub-Assy, Throttle
21096 21575-24110 Stopper(For Opener)
21096 21575-24240 Stopper(For Opener)
21112 21112-24061 Horn, Air
21112 21112-24062 Horn, Air
21112 21112-24181 Horn, Air
21112 21112-24310 Horn, Air
21112 21112-24060 Horn, Air
21113 21113-24060 Flange, Carburetor
21113 21113-24070 Flange, Carburetor
21113 21113-24120 Flange, Carburetor
21113 21113-24121 Flange, Carburetor
21113 21113-24130 Flange, Carburetor
21113 21113-24131 Flange, Carburetor
21113 21113-24260 Flange, Carburetor
21113 21113-24270 Flange, Carburetor
21113 21113-24280 Flange, Carburetor
21113 21113-24290 Flange, Carburetor
21113 21113-24300 Flange, Carburetor
21113 21113-24310 Flange, Carburetor
21129 21129-24030 Cover(For Thermostatic Valve)
21129 21129-24160 Cover(For Thermostatic Valve)
21129 21129-23010 Cover(For Thermostatic Valve)
21205 21205-22010 Jet Sub-Assy, Slow
21205 21205-24011 Jet Sub-Assy, Slow
21205 90999-44147 Jet Sub-Assy, Slow
21205 90999-44144 Jet Sub-Assy, Slow
21209 21209-24010 Float Sub-Assy
21209 21209-22010 Float Sub-Assy
21211 21211-22040 Venturi, 1St Small
21212 21202-22010 Venturi, 2Nd Small
21234 21234-24110 Pipe Or Hose
21234 21234-24200 Pipe Or Hose
21234 21234-24230 Pipe Or Hose
21234 90079-71001 Pipe Or Hose, Connecting
21234 21234-41100 Pipe Or Hose
21234 21234-41101 Pipe Or Hose
21235 21234-24160 Pipe Or Hose, Connecting
21235 21235-24231 Pipe Or Hose, Connecting
21236 21662-24230 Hose, No.1(For Opener)
21251 21251-22052 Jet, 1St Main
21253 90999-42126 Jet, 2Nd Main
21253 90999-42138 Jet, 2Nd Main
21253 90999-41138 Jet, 1St Main
21253 21253-22051 Jet, 2Nd Main
21253 21253-24060 Jet, 2Nd Main
21255 21255-22050 Jet, Power
21255 90999-43065 Jet, Power
21255 90999-43055 Jet, Power
21255 21255-22051 Jet, Power
21271 21271-24100 Screw, Idle Adjusting
21271 21271-22010 Screw, Idle Adjusting
21272 21273-22011 Screw, 1St Idle Adjusting
21272 21273-24230 Screw, 1St Idle Adjusting - THROTTLE ADJUSTING
21273 21814-33010 Screw, 1St Idle Adjusting
21273 21814-44010 Screw, Throttle Adjusting
21273 21273-50010 Screw, Throttle Adjusting
21275 21275-24360 Screw, Adjusting
21275 21842-24230 Screw, Adjusting
21275 21842-60191 Screw, Adjusting
21301 21301-24030 Valve Sub-Assy, Needle
21301 21301-24360 Valve Sub-Assy, Needle
21301 21301-22010 Valve Sub-Assy, Needle
21301 21301-24010 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-60010 Ball, Steel, No.2(For Pump Plunger)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21331 21331-21010 Valve, 1St Throttle
21331 21331-22010 Valve, 1St Throttle
21332 21332-21060 Valve, 2Nd Throttle
21332 21332-22010 Valve, 2Nd Throttle
21333 21333-22050 Valve, High Speed
21334 21334-22010 Valve, Choke
21334 21334-25030 Valve, Choke
21335 21061-24230 Valve Sub-Assy, Thermostatic
21335 21061-24260 Valve, Thermostatic
21335 21335-22060 Valve, Thermostatic
21341 21304-30010 Valve, Power
21351 21351-33080 Piston, Power
21351 21708-22010 Piston, Power
21353 21305-22011 Plunger, Pump
21377 21377-24230 Collar(For 2Nd Throttle Shaft)
21411 21432-24061 Shaft, High Speed
21411 21432-22050 Shaft, High Speed
21411 21432-24060 Shaft, High Speed
21412 21412-22010 Shaft, 1St Throttle
21412 21412-24230 Shaft, 1St Throttle
21412 21412-24250 Shaft, 1St Throttle
21412 21412-24300 Shaft, 1St Throttle
21412 21412-24310 Shaft, 1St Throttle
21413 21413-24061 Shaft, 2Nd Throttle
21413 21402-22010 Shaft, 2Nd Throttle
21413 21413-24060 Shaft, 2Nd Throttle
21414 21403-22011 Shaft, Choke
21414 21054-24010 Shaft, Choke
21414 21414-24110 Shaft, Choke
21414 21414-24111 Shaft, Choke
21427 21427-24070 Shaft, Choke Connector
21427 21427-24310 Shaft, Choke Connector
21427 21895-22060 Bush, Shaft Choke Connector
21427 21427-22061 Shaft, Choke Connector
21431 21431-24061 Arm, 1St Throttle Shaft
21431 21431-24062 Arm, 1St Throttle Shaft
21431 21431-24260 Arm, 1St Throttle Shaft
21431 21431-24300 Arm, 1St Throttle Shaft
21431 21431-24301 Arm, 1St Throttle Shaft
21431 21431-24080 Arm, 1St Throttle Shaft
21431 21431-24081 Arm, 1St Throttle Shaft
21452 21407-22011 Lever, Pump
21452 21452-24300 Lever, Pump
21455 21444-24310 Lever, Throttle
21455 21455-24230 Lever, Throttle
21456 21456-24060 Lever, 1St Throttle Idle Adjusting, No.1
21456 21456-24260 Lever, 1St Throttle Idle Adjusting, No.1
21456 21456-22052 Lever, 1St Throttle Idle Adjusting, No.1
21456 21456-22053 Lever, 1St Throttle Idle Adjusting, No.1
21461 21458-24060 Lever, 1St Idle
21461 21461-24060 Lever, 1St Idle
21462 21462-24310 Lever, Slow Adjusting
21462 21866-24311 Screw, Slow Adjusting
21471 21474-11060 Link, Pump Connecting
21471 21474-22011 Link, Pump Connecting
21473 21473-24060 Link, Throttle Shaft
21473 21473-31010 Link, Throttle Shaft
21473 21473-40010 Link, Throttle Shaft
21477 21477-24070 Link, Choke Lever
21477 21477-24310 Link, Choke Lever
21477 21477-22061 Link, Choke Lever
21478 21478-24120 Link, Connecting
21478 21478-24130 Link, Connecting
21478 21478-24280 Link, Connecting
21481 21481-24060 Connector, 1St Idle
21481 21481-22012 Connector, 1St Idle
21483 21483-24231 Connector, No.1
21538 21538-31010 Retainer, Ball Check
21561 21561-22010 Weight, Pump Discharge
21561 21561-30010 Weight, Pump Discharge
21572 21572-22010 Stop, Power Piston
21572 21572-33080 Stop, Power Piston
21581 21581-21010 Shim, 1St Throttle Shaft
21581 21581-32010 Shim, 1St Throttle Shaft - CHOKE ROD BELLCRANK SHAFT
21581 21581-41010 Shim, 1St Throttle Shaft - CHOKE ROD BELLCRANK SHAFT
21581 21582-21010 Shim, 1St Throttle Shaft
21581 21588-21010 Shim, 1St Throttle Shaft
21581 21583-21010 Shim, 1St Throttle Shaft
21581 21583-32010 Shim, 1St Throttle Shaft
21581 21583-41010 Shim, 1St Throttle Shaft - CHOKE ROD BELLCRANK SHAFT
21581 26228-31010 Shim, 1St Throttle Shaft
21611 21611-22010 Gasket, Main Jet
21614 21614-22010 Gasket, Venturi
21614 21614-24580 Gasket, Venturi
21614 21614-24360 Gasket, Venturi
21614 21614-13430 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21617 21649-22010 Gasket, Main Passage Plug
21618 21618-24030 Gasket, Needle Valve Seat
21618 21618-21010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21621 21619-22010 Gasket, Union Nipple
21622 21622-24010 Gasket, Air Horn
21622 21622-24580 Gasket, Air Horn
21622 21622-24011 Gasket, Air Horn
21622 21622-24360 Gasket, Air Horn
21622 21622-13430 Gasket, Air Horn
21622 21622-22010 Gasket, Air Horn
21623 21623-22012 Gasket, Body Flange
21623 21623-24300 Gasket, Body Flange
21623 21623-24360 Gasket, Body Flange
21623 21623-22011 Gasket, Body Flange
21662 21454-24071 Lever, Choke Connector Shaft, No.1
21662 21454-24310 Lever, Choke Connector Shaft, No.1
21662 21444-22062 Lever, Choke Connector Shaft, No.1
21662 21444-22063 Lever, Choke Connector Shaft, No.1
21663 21464-24070 Lever, Choke Connector Shaft, No.2
21663 21464-24310 Lever, Choke Connector Shaft, No.2
21663 21454-22061 Lever, Choke Connector Shaft, No.2
21663 21464-22060 Lever, Choke Connector Shaft, No.2
21664 21444-24230 Lever(For Dash Pot Or Positioner)
21679 21679-24230 Positioner
21679 21679-24350 Positioner
21679 21679-24360 Positioner
21681 21681-21060 Shim(For High Speed Shaft) - CHOKE CONNECTOR SHAFT
21681 21682-21060 Shim(For High Speed Shaft) - CHOKE CONNECTOR SHAFT
21699 21699-21061 Boot(For Pump Plunger)
21699 21699-28150 Boot(For Pump Plunger)
21722 21722-22010 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21725 21725-24030 Spring, 2Nd Throttle Back
21725 21725-22010 Spring, 2Nd Throttle Back
21726 21726-40010 Spring, Throttle Adjusting
21726 21864-24230 Spring, Throttle Adjusting
21731 21864-24010 Spring, Throttle Adjusting
21734 21734-22050 Spring, Power Piston
21735 21735-24030 Spring, Pump Arm
21735 21735-22010 Spring, Pump Arm
21738 21738-22013 Spring, Choke Valve Relief
21738 21738-24060 Spring, Choke Valve Relief
21751 21751-24032 Union, Nipple
21751 21751-24034 Union, Nipple
21751 21751-24071 Union, Nipple
21751 21751-24072 Union, Nipple
21751 21751-24122 Union, Nipple
21751 21751-24290 Union, Nipple
21751 21751-10050 Union, Nipple
21751 21751-24030 Union, Nipple
21751 21751-24031 Union, Nipple
21751 21751-24070 Union, Nipple
21751 21751-24121 Union, Nipple
21763 21763-29270 Pin, Float Lever
21763 21763-61330 Pin, Float Lever
21763 21763-38010 Pin, Float Lever
21781 21677-24060 Plug, Main Passage(For Carburetor Jet)
21781 21781-30020 Plug, Main Passage(For Carburetor Jet)
21781 21781-16510 Plug, Main Passage(For Carburetor Jet)
21781 21789-21030 Plug, Main Passage(For Carburetor Jet)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21795 21795-30010 Ring, Retainer, No.2(For High Speed Shaft)
21821 21821-60011 Screw, 2Nd Throttle Valve Set
21821 21821-60010 Screw, 2Nd Throttle Valve Set - 1ST THROTTLE VALVE SET
21822 21822-44100 Screw, 1St Throttle Valve Set
21822 21822-44101 Screw, 1St Throttle Valve Set
21822 21822-10010 Screw, 1St Throttle Valve Set
21823 21822-10011 Screw, 1St Throttle Valve Set - CHOKE, VALVE SET
21823 21823-60010 Screw, Choke, Valve Set
21824 21824-24060 Screw, Set(For 1St Idle Cam Follower Set)
21826 21826-31011 Screw, Pump Arm Set
21826 21826-31012 Screw, Pump Arm Set
21826 21826-31010 Screw, Pump Arm Set - 1ST THROTTLE LEVER SET
21829 21823-60011 Screw, High Speed Valve Set
21831 21842-33010 Screw, Power Piston Stop
21834 21834-31010 Screw, Set, No.1(For Carburetor Body Set)
21835 21835-40010 Screw, Set, No.1(For Carburetor Body Set)
21843 21842-34064 Screw Or Pin (For Dash Pot Or Positioner Lever)
21852 21852-30010 Nut, Throttle Lever Set
21865 21756-24300 Spring
21865 21756-24310 Spring
21865 21865-44100 Spring
21871 21864-24070 Spring, Choke Connecting Link
21871 21864-22060 Spring, Choke Connecting Link
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21895 21896-24071 Bracket, Choke Connector Shaft
21895 21896-24310 Bracket, Choke Connector Shaft
21895 21896-22061 Bracket, Choke Connector Shaft
21896 21896-24230 Bracket, Thermostatic Valve
21897 21897-22050 Support, Front(For Choke Shaft)
21897 21897-24120 Support, Front(For Choke Shaft)
21897 21897-24130 Support, Front(For Choke Shaft)
21897 21897-24230 Support, Front(For Choke Shaft)
21897 21897-24231 Support, Front(For Choke Shaft)
21897 21897-24260 Support, Front(For Choke Shaft)
21897 21897-24270 Support, Front(For Choke Shaft)
21897 21897-24310 Support, Front(For Choke Shaft)
21934 21062-12030 Solenoid, Throttle Valve
21934 21062-24230 Solenoid, Throttle Valve
21934 21062-25040 Solenoid, Throttle Valve
21934 21062-24360 Solenoid, Throttle Valve
21934 21062-38011 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
2152424230 21524-24230 Bracket(For Dash Pot)
2155324300 21553-24300 Guide
2155324310 21553-24310 Guide
2166824300 21668-24300 Collar
2166824310 21668-24310 Collar
2171241080 21712-41080 Bush, Sliding Rod
2176722010 21767-22010 Pin, Diaphragm Rod
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2183433080 21834-33080 Screw, Set, No.2(for Carburetor Body Set)
2185921030 21859-21030 Nut, Choke Shaft Set
2187321010 21873-21010 Washer, Plunger
2188544010 21885-44010 Washer(For Diaphragm Cap Set)
9321914008 93219-14008 Screw, W/washer(For Bearing Cover Setting)
9321915010 93219-15010 SCREW
9321915025 93219-15025 New Genuine Part
9328915016 93289-15016 New Genuine Part
9451100400 94511-00400 WASHERSPRING
9451100500 94511-00500 Washer, Cover Set, No.2
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
9538101610 95381-01610 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 8
Category
176
Collected
2026-08-04
