Search › Model › KN13
KN13

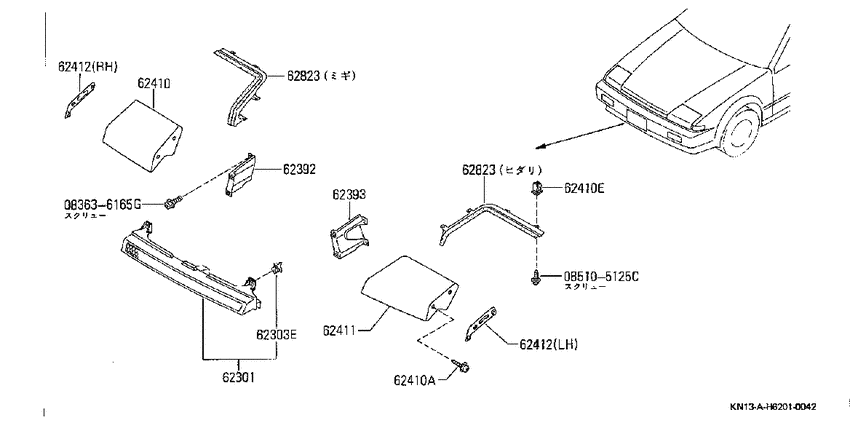

Front grille & panels (1986-10-01 ~ ; ALL) 10
| # | OEM | Part name |
|---|---|---|
| 62301 | 62310-80M00 | Grille Assy-Front |
| 62392 | 62396-80M00 | Bracket-Radiator Grille, Side Rh |
| 62393 | 62397-80M00 | Bracket-Radiator Grille, Side Lh |
| 62410 | 62452-80M00 | Finisher-Head Lamp, Rh |
| 62410 | 01454-00132 | SCREW-TAPPING |
| 62410 | 01464-00091 | SCREW-TAPPING |
| 62410 | 01281-00022 | GROMMET |
| 62411 | 62453-80M00 | Finisher-Head Lamp, Lh |
| 62823 | 62462-80M00 | Spacer |
| 62823 | 62463-80M00 | Spacer |
| OEM | Part name | Category |
|---|---|---|
| 01281-00022 | GROMMET | Front grille & panels (1986-10-01 ~ ; ALL) |
| 01454-00132 | SCREW-TAPPING | Front grille & panels (1986-10-01 ~ ; ALL) |
| 01464-00091 | SCREW-TAPPING | Front grille & panels (1986-10-01 ~ ; ALL) |
| 62310-80M00 | Grille Assy-Front | Front grille & panels (1986-10-01 ~ ; ALL) |
| 62396-80M00 | Bracket-Radiator Grille, Side Rh | Front grille & panels (1986-10-01 ~ ; ALL) |
| 62397-80M00 | Bracket-Radiator Grille, Side Lh | Front grille & panels (1986-10-01 ~ ; ALL) |
| 62452-80M00 | Finisher-Head Lamp, Rh | Front grille & panels (1986-10-01 ~ ; ALL) |
| 62453-80M00 | Finisher-Head Lamp, Lh | Front grille & panels (1986-10-01 ~ ; ALL) |
| 62462-80M00 | Spacer | Front grille & panels (1986-10-01 ~ ; ALL) |
| 62463-80M00 | Spacer | Front grille & panels (1986-10-01 ~ ; ALL) |
