KN13

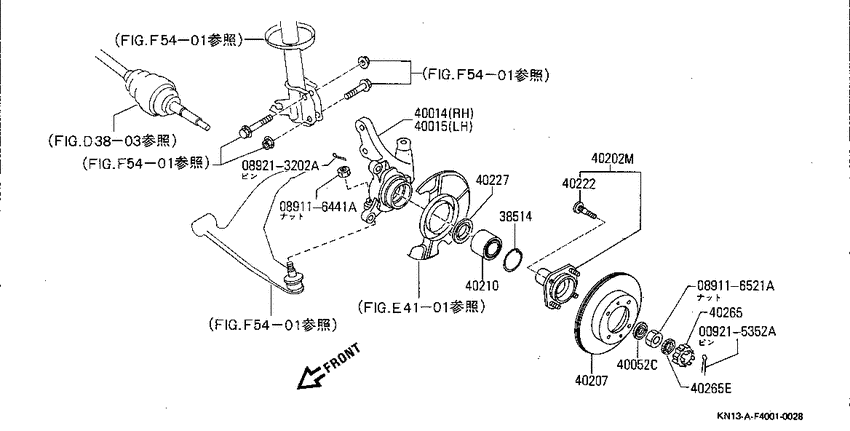

Front axle (1986-10-01 ~ ; ALL) 14
| # | OEM | Part name |
|---|---|---|
| 38514 | 40214-50A00 | Ring-Snap |
| 40014 | 40014-50A00 | Spindle-Knuckle, Rh |
| 40015 | 40015-50A00 | Spindle-Knuckle, Lh |
| 40202 | 40202-59M00 | Hub Assy-Road Wheel, Front |
| 40207 | 40206-58A01 | Rotor-Disc Brake, Front |
| 40210 | 40210-05Y00 | Bearing Assy-Front Wheel |
| 40210 | 40210-05Y05 | Bearing Assy-Front Wheel |
| 40210 | 40210-50A05 | Bearing Assy-Front Wheel |
| 40210 | 40210-50A00 | Bearing Assy-Front Wheel |
| 40222 | 43222-06R61 | Bolt-Lock, Swivel |
| 40227 | 39252-52A00 | Seal-Dust |
| 40227 | 39252-52A10 | Seal-Dust |
| 40265 | 40263-D0100 | Cap-Adjusting |
| 40265 | 40268-D0100 | Insulator-Adjusting Cap |
| OEM | Part name | Category |
|---|---|---|
| 39252-52A00 | Seal-Dust | Front axle (1986-10-01 ~ ; ALL) |
| 39252-52A10 | Seal-Dust | Front axle (1986-10-01 ~ ; ALL) |
| 40014-50A00 | Spindle-Knuckle, Rh | Front axle (1986-10-01 ~ ; ALL) |
| 40015-50A00 | Spindle-Knuckle, Lh | Front axle (1986-10-01 ~ ; ALL) |
| 40202-59M00 | Hub Assy-Road Wheel, Front | Front axle (1986-10-01 ~ ; ALL) |
| 40206-58A01 | Rotor-Disc Brake, Front | Front axle (1986-10-01 ~ ; ALL) |
| 40210-05Y00 | Bearing Assy-Front Wheel | Front axle (1986-10-01 ~ ; ALL) |
| 40210-05Y05 | Bearing Assy-Front Wheel | Front axle (1986-10-01 ~ ; ALL) |
| 40210-50A00 | Bearing Assy-Front Wheel | Front axle (1986-10-01 ~ ; ALL) |
| 40210-50A05 | Bearing Assy-Front Wheel | Front axle (1986-10-01 ~ ; ALL) |
| 40214-50A00 | Ring-Snap | Front axle (1986-10-01 ~ ; ALL) |
| 40263-D0100 | Cap-Adjusting | Front axle (1986-10-01 ~ ; ALL) |
| 40268-D0100 | Insulator-Adjusting Cap | Front axle (1986-10-01 ~ ; ALL) |
| 43222-06R61 | Bolt-Lock, Swivel | Front axle (1986-10-01 ~ ; ALL) |
