KN13

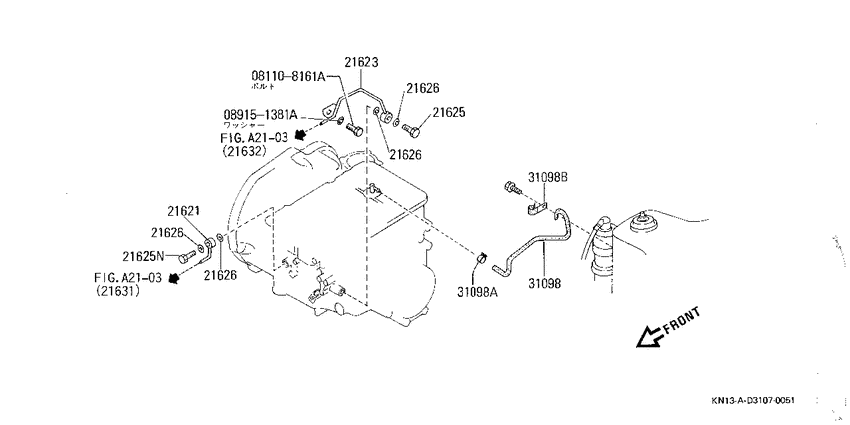

ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) 8
| # | OEM | Part name |
|---|---|---|
| 21621 | 21621-03E01 | Tube Assy-Oil Cooler |
| 21623 | 21623-03E00 | Tube Assy-Oil Cooler |
| 21625 | 21625-03E00 | BOLT-CONNECTOR |
| 21626 | 21626-P2600 | Washer-Seal |
| 31098 | 31098-53A00 | Hose-Breather |
| 31098 | 01557-00052 | BAND-BREATHER HOSE |
| 31098 | 16439-N2100 | Clamp-Hose |
| 31098 | 31073-53A00 | Clip-Breather Hose |
| OEM | Part name | Category |
|---|---|---|
| 01557-00052 | BAND-BREATHER HOSE | ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) |
| 16439-N2100 | Clamp-Hose | ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) |
| 21621-03E01 | Tube Assy-Oil Cooler | ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) |
| 21623-03E00 | Tube Assy-Oil Cooler | ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) |
| 21625-03E00 | BOLT-CONNECTOR | ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) |
| 21626-P2600 | Washer-Seal | ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) |
| 31073-53A00 | Clip-Breather Hose | ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) |
| 31098-53A00 | Hose-Breather | ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾌｲﾂﾃｲﾝｸﾞ (1986-10-01 ~ ; RL4F02A) |
