KM75

Toyota LITE-TOWNACE · 1999 · 3,691 parts · 229 categories
KM75 ×

← Back to categories

3,691 items

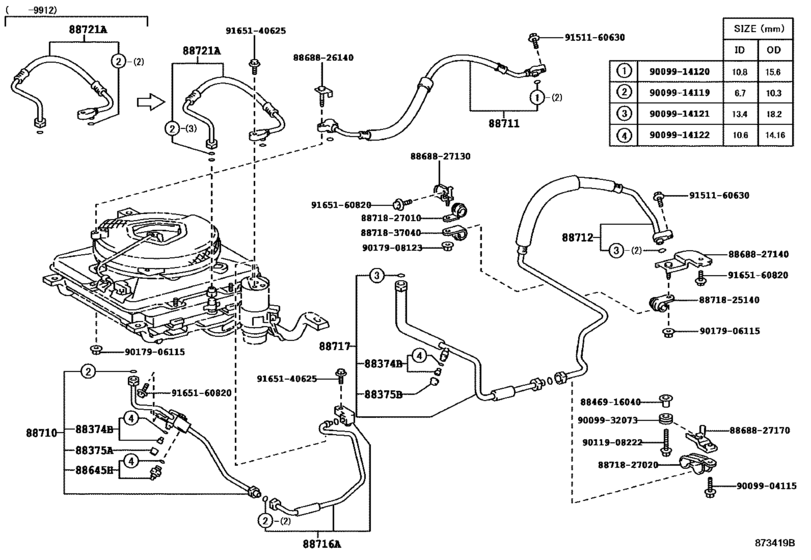

Heating & Air Conditioning - Cooler Piping ([06.1999 - 08.2002] (9906-0208)KM7#,8#) 39
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88710 88710-27090 Tube Assy, Air Conditioner
88710 88710-27100 Tube Assy, Air Conditioner
88711 88711-27330 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-27270 Hose, Cooler Refrigerant Suction, No.1
88716 88716-27140 Pipe, Cooler Refrigerant Liquid, A
88716 88716-27180 Pipe, Cooler Refrigerant Liquid, A
88717 88717-27060 Pipe, Cooler Refrigerant Suction, No.1
88717 88717-27061 Pipe, Cooler Refrigerant Suction, No.1
88717 88717-27090 Pipe, Cooler Refrigerant Suction, No.1
88721 88716-27160 Hose, Liquid, A
88721 88721-27120 Hose, Liquid, A
8846916040 88469-16040 Insulator, Cooler Condenser Mounting
8868826140 88688-26140 Bracket, Cooler Diaphragm
8868827130 88688-27130 Bracket, Cooler Diaphragm
8868827140 88688-27140 Bracket, Cooler Diaphragm
8868827170 88688-27170 Bracket, Cooler Diaphragm
8871825140 88718-25140 Pipe, Cooler Refrigerant Suction, No.2
8871827010 88718-27010 Pipe, Cooler Refrigerant Suction, No.2
8871827020 88718-27020 Pipe, Cooler Refrigerant Suction, No.2
8871837040 88718-37040 Pipe, Cooler Refrigerant Suction, No.2
9009904115 90099-04115 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9009932073 90099-32073 Grommet
9011908222 90119-08222 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9151160630 91511-60630 BOLT
9165140625 91651-40625 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
