KM75

Toyota LITE-TOWNACE · 1999 · 3,691 parts · 229 categories
KM75 ×

← Back to categories

3,691 items

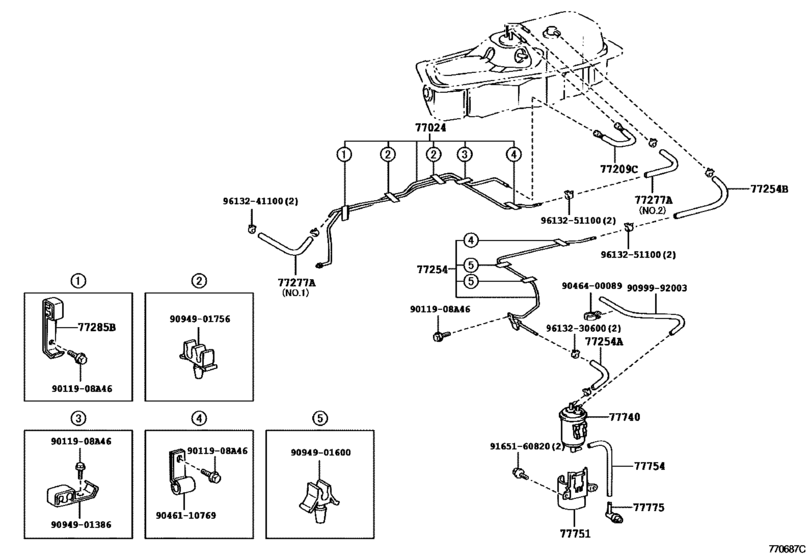

Fuel Tank & Tube ([06.1999 - 08.2002] ﾌｭｰｴﾙ ﾁｭｰﾌﾞ (9906-0208)KM7#,8#) 30
#OEMPart name
77024 77024-27060 Tube Sub-Assy, Fuel Main & Return, Front
77024 77024-27070 Tube Sub-Assy, Fuel Main & Return, Front
77209 77209-27020 Tube Sub-Assy, Fuel Tank Main
77254 77027-27060 Tube, Fuel Emission, No.1
77254 95333-06030 Hose, Fuel
77254 95338-06030 HOSE, FUEL
77254 95337-06017 Hose, Fuel(For Fuel Evaporative Separator)
77254 95337-06030 Hose, Fuel, No.2 (For Main Tube, No.2)
77277 23273-13020 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23273-13030 Hose, Fuel, No.1(For Return Tube, No.1)
77285 77285-27030 Clamp, Fuel Tube W/grommet, No.1
77740 77704-12490 Canister Sub-Assy, Charcoal
77740 77704-27140 Canister Assy, Charcoal
77751 77751-27050 Bracket, Charcoal Canister Base
77751 77751-27060 Bracket, Charcoal Canister Base
77754 77754-27030 Hose, Charcoal Canister Outlet, No.1
77754 77754-27040 Hose, Charcoal Canister Outlet, No.1
77775 77775-38020 Guide, Charcoal Canister Outlet
9011908 90119-08A46 BOLT WWASHER
9046110769 90461-10769 New Genuine Part
9046400089 90464-00089 New Genuine Part
9094901386 90949-01386 New Genuine Part
9094901600 90949-01600 New Genuine Part
9094901756 90949-01756 New Genuine Part
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
