Search › Model › KM37

KM37

Toyota LITEACE · 1986 · 3,260 parts · 151 categories

3,260 items

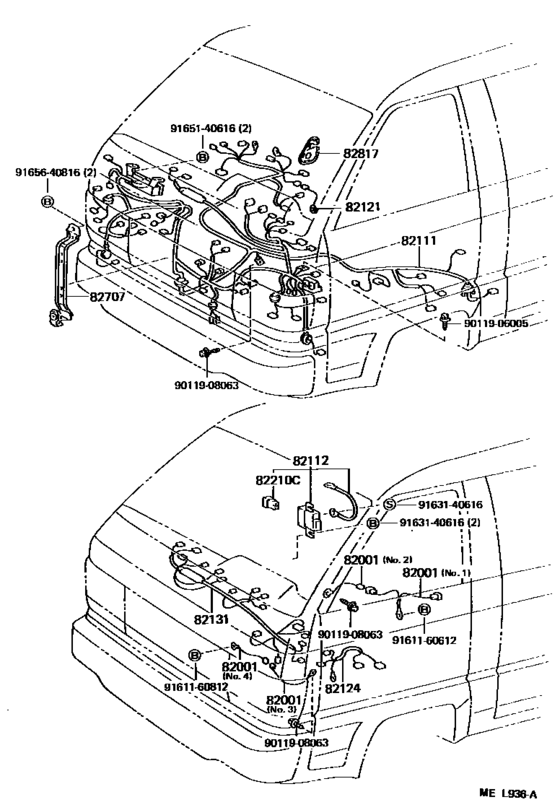

Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD) 27

#	OEM	Part name
82001	90980-07239	Cable, Bond, No.1
82001	90980-07260	Cable, Bond, No.1
82001	90980-07261	Cable, Bond, No.1
82001	90980-07262	Cable, Bond, No.1
82111	82111-95T77	Wire, Engine Room Main
82112	82112-95715	Wire, Engine Room, No.2
82121	82121-95700	Wire, Engine
82124	82124-95702	Wire, Engine, No.4
82124	82124-95714	Wire, Engine, No.4
82131	82131-95T47	Wire, Cowl
82210	90982-08189	Fusible Link
82210	90982-08228	Fusible Link
82707	82701-95701	Support Sub-Assy, Wiring Harness
82817	82817-95703	Protector, Wiring Harness, No.1
9011906005	90119-06005	New Genuine Part
9011908063	90119-08063	BOLT
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9163140616	91631-40616	Bolt(For Head To Camshaft Bearing Cap)
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9165640816	91656-40816	New Genuine Part
9165640816	91651-B0814	Bolt with washer
9165640816	90119-A0109	New Genuine Part

OEM	Part name	Category
82111-95T77	Wire, Engine Room Main	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
82112-95715	Wire, Engine Room, No.2	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
82121-95700	Wire, Engine	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
82124-95702	Wire, Engine, No.4	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
82124-95714	Wire, Engine, No.4	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
82131-95T47	Wire, Cowl	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
82701-95701	Support Sub-Assy, Wiring Harness	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
82817-95703	Protector, Wiring Harness, No.1	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90080-11395	New Genuine Part	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90119-06005	New Genuine Part	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90119-08063	BOLT	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90119-A0109	New Genuine Part	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90980-07239	Cable, Bond, No.1	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90980-07260	Cable, Bond, No.1	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90980-07261	Cable, Bond, No.1	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90980-07262	Cable, Bond, No.1	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90982-08189	Fusible Link	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
90982-08228	Fusible Link	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91611-B0812	Bolt	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91611-G0612	Bolt	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91621-60614	Bolt(For Transaxle & Engine Setting)	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91631-40616	Bolt(For Head To Camshaft Bearing Cap)	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91651-40616	BOLT	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91651-B0814	Bolt with washer	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
91656-40816	New Genuine Part	Wiring & Clamp ([08.1988 - ] (8808- )KM3#..LHD)
