KM37

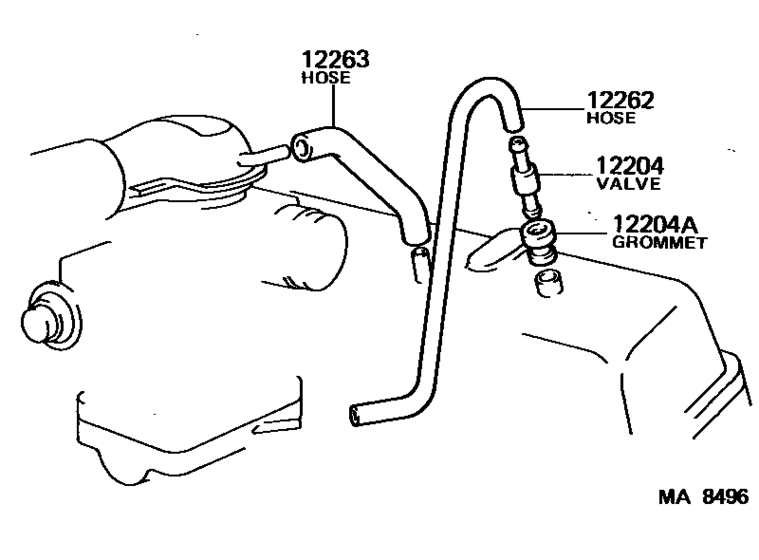

Ventilation Hose ([08.1988 - ] (8808- )5K#) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-13030 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-13090 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-16003 | Grommet(For Ventilation System) |
| 12262 | 12261-13060 | Hose, Ventilation, No.2 |
| 12262 | 12261-13061 | Hose, Ventilation, No.2 |
| 12263 | 12262-13010 | Hose, Ventilation, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 12204-13030 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.1988 - ] (8808- )5K#) |
| 12204-13090 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.1988 - ] (8808- )5K#) |
| 12261-13060 | Hose, Ventilation, No.2 | Ventilation Hose ([08.1988 - ] (8808- )5K#) |
| 12261-13061 | Hose, Ventilation, No.2 | Ventilation Hose ([08.1988 - ] (8808- )5K#) |
| 12262-13010 | Hose, Ventilation, No.3 | Ventilation Hose ([08.1988 - ] (8808- )5K#) |
| 90480-16003 | Grommet(For Ventilation System) | Ventilation Hose ([08.1988 - ] (8808- )5K#) |
