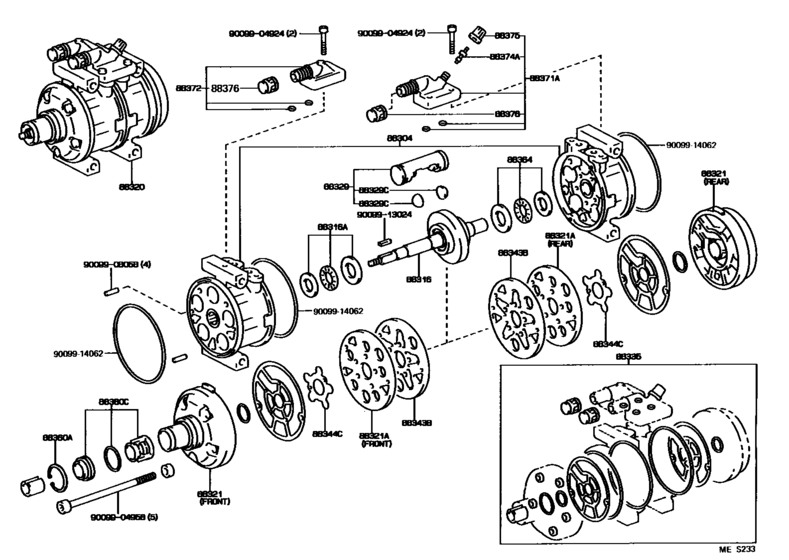

| 04881-10010 |
Gasket Kit, Cooler Compressor Overhaul |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88301-14020 |
Piston Sub-Assy, Cooler Compressor |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88304-14021 |
Cylinder Sub-Assy, Cooler Compressor |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88313-14010 |
Shoe, Piston |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88316-14011 |
Crankshaft, Cooler Compressor |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88320-27090 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88320-27091 |
Compressor Assy, Cooler |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88321-14011 |
Head, Cooler Compressor Cylinder |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88321-30300 |
Head, Cooler Compressor Cylinder |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88322-14011 |
Head, Cooler Compressor Cylinder |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88335-28020 |
Gasket Kit, Overhaul - COOLER COMPRESSOR OVERHAUL |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88341-14010 |
Plate Sub-Assy, Valve |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88342-14010 |
Plate Sub-Assy, Valve |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88343-14011 |
Reed, Suction Valve |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88344-14011 |
Reed Sub-Assy, Valve |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88360-26020 |
Seal Assy, Cooler Compressor Shaft |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88360-30290 |
Seal Assy, Shaft |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88360-30310 |
Seal Assy, Shaft |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88360-40010 |
Seal Assy, Cooler Compressor Shaft |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88366-14010 |
Bearing, Compressor Crankshaft, Front |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88371-28030 |
Valve, Suction |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88372-27030 |
Valve, Discharge |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88374-12020 |
Valve, Service, No.1 |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88374-20020 |
Valve, Service, No.1 |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88375-30270 |
Cap, Cooler Compressor Service Valve |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88376-26010 |
Cap, Blind |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 88376-26020 |
Cap, Blind |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 90096-90022 |
Ring, Compressor Seal Plate Snap |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 90099-04924 |
Bolt, Service Valve |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 90099-04958 |
Bolt, Through |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 90099-08058 |
Pin, Cylinder Block |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 90099-13024 |
Key, Compressor Crankshaft |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
| 90099-14062 |
New Genuine Part |
Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )KM3#..LHD) |
