KM37

Toyota LITEACE · 1986 · 3,260 parts · 151 categories

3,260 items

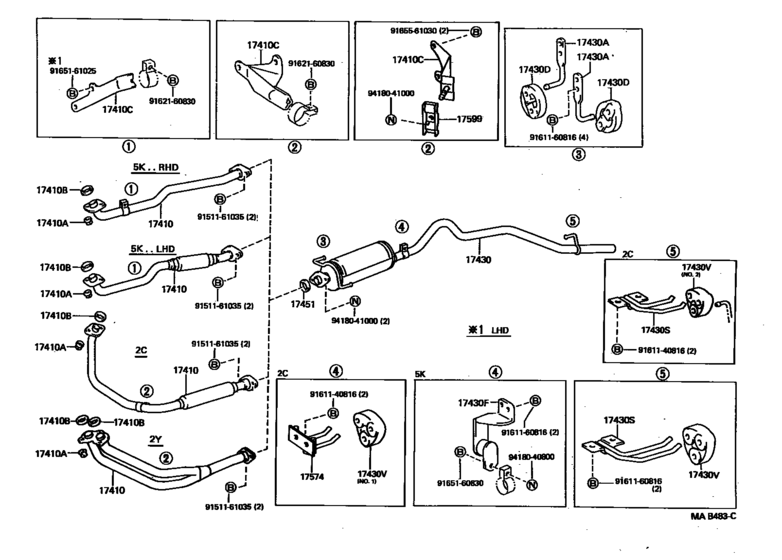

Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y) 23

#	OEM	Part name
17410	17410-13290	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06004	Gasket(For Manifold Extension)
17410	90917-06039	Gasket, Exhaust Pipe
17410	17571-13160	Bracket, Exhaust Pipe Front (For Front)
17430	17430-13361	Pipe Assy, Exhaust, Tail
17430	17562-13060	Bracket, Exhaust Tail Pipe(For Front)
17430	17563-35020	Bolt Or Ring, Exhaust Tail Pipe (For Front)
17430	17562-13070	Bracket, Exhaust Tail Pipe(For Center)
17430	17575-13060	Bracket, Exhaust Tail Pipe (For Rear)
17430	17565-13030	Ring, Catalytic Converter
9151161035	91511-61035	Bolt(For Transaxle Case & Engine Setting)
9151161035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9162160830	91621-60830	New Genuine Part
9165160830	91651-60830	Bolt (For Transfer Power Take-Off Cover)
9165161025	91651-61025	Bolt with washer
9165561030	91655-61030	Bolt(For Transaxle Case & Engine Setting)
9418040800	94180-40800	NUT
9418041000	94180-41000	Nut

OEM	Part name	Category
17410-13290	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
17430-13361	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
17562-13060	Bracket, Exhaust Tail Pipe(For Front)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
17562-13070	Bracket, Exhaust Tail Pipe(For Center)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
17563-35020	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
17565-13030	Ring, Catalytic Converter	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
17571-13160	Bracket, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
17575-13060	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
90917-06004	Gasket(For Manifold Extension)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91511-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91611-B0816	Bolt	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91621-60830	New Genuine Part	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91651-60830	Bolt (For Transfer Power Take-Off Cover)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91651-61025	Bolt with washer	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
91655-61030	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
94180-40800	NUT	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)
94180-41000	Nut	Exhaust Pipe ([08.1988 - ] (8808- )2C,5K,2Y)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 151
Collected: 2026-08-04
