KM31

Toyota LITEACE · 1985 · 3,641 parts · 176 categories
KM31 ×

← Back to categories

3,641 items

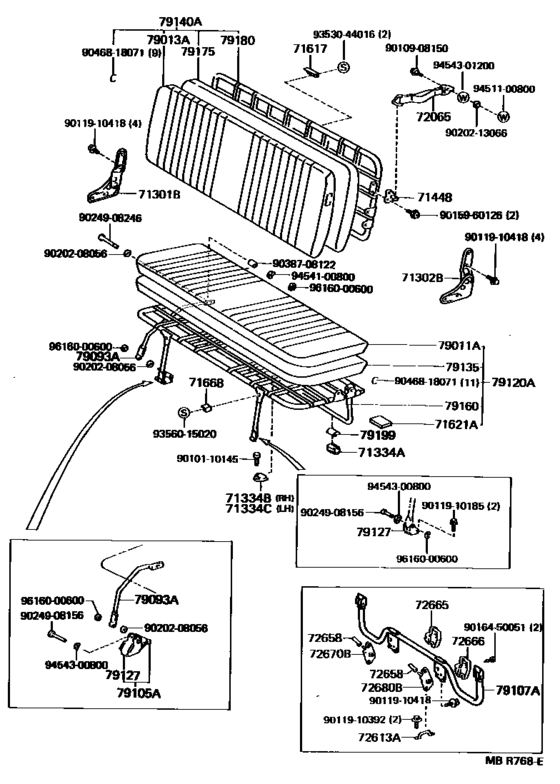

Seat & Seat Track ([08.1988 - ] (8808- )CM31,36,41,KM31,35,36,YM31) 50
#OEMPart name
71301 71301-95706-03 Hinge Sub-Assy, Rear No.1 Seat, Rh
71302 71302-95705-03 Hinge Sub-Assy, Rear No.1 Seat, Lh
71334 71334-95704 Stopper, Rear Seat Leg
71334 71334-95703 Stopper, Rear Seat Leg
71448 71448-95703-03 Stopper, Rear Seat Back
71617 71617-95A03-03 Protector, Rear Seat Back
71621 71621-95701 Pad, Rear Seat Cushion Silencer, A
71668 71668-95700 Cushion (For Rear Seat Leg)
72065 72065-95703 Belt Sub-Assy, Rear Seat Hook, Rh
72613 72613-95703 Striker, Front Seat Lock
72658 72658-95701-03 Knob, Rear Seat Handle
72658 72658-95701-C0 Knob, Rear Seat Handle
72665 72665-95704-03 Cover, Rear Seat Back Lock, Rh
72670 72670-95700 Lock Assy, Rear Seat Cushion, Rh
79011 79011-95724-03 Cover Sub-Assy, No.1 Seat Cushion
79013 79013-95724-03 Cover Sub-Assy, No.1 Seat Back
79093 79093-27020 Stay Sub-Assy, Seat Leg, No.1
79107 79107-27010 Leg Sub-Assy, No.1 Seat, Rear
79107 79107-95706 Leg Sub-Assy, No.1 Seat, Rear
79120 79120-27030-03 Cushion Assy, No.1 Seat
79120 79120-95726-03 Cushion Assy, No.1 Seat
79135 79135-95J03 Pad, No.1 Seat Cushion
79140 79140-95727-03 Back Assy, No.1 Seat
79160 79160-27010 Spring Assy, No.1 Seat Cushion
79160 79160-95705-01 Spring Assy, No.1 Seat Cushion
79175 79175-95J02 Pad, No.1 Seat Back
79180 79180-95702 Spring Assy, No.1 Seat Back
79199 79199-95J00 Holder, No.1 Seat Leg Stopper
9010110145 90101-10145 New Genuine Part
9010908150 90109-08150 New Genuine Part
9011910185 90119-10185 Bolt
9011910392 90119-10392 New Genuine Part
9011910418 90119-10418 Bolt(for Transaxle & Engine Setting)
9011910418 91612-B1020 Bolt (For Transfer Case)Cover No.2
9015960126 90159-60126 New Genuine Part
9016450051 90164-50051 New Genuine Part
9020208056 90202-08056 New Genuine Part
9020213066 90202-13066 Plate, Spare Wheel Carrier Lock
9024908156 90249-08156 New Genuine Part
9024908246 90249-08246 New Genuine Part
9038708122 90387-08122 New Genuine Part
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9353044016 93530-44016 New Genuine Part
9356015020 93560-15020 SCREW
9451100800 94511-00800 WASHERSPRING
9454100800 94541-00800 New Genuine Part
9454300800 94543-00800 New Genuine Part
9454301200 94543-01200 WASHER
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
