KM31

Toyota LITEACE · 1985 · 3,641 parts · 176 categories

3,641 items

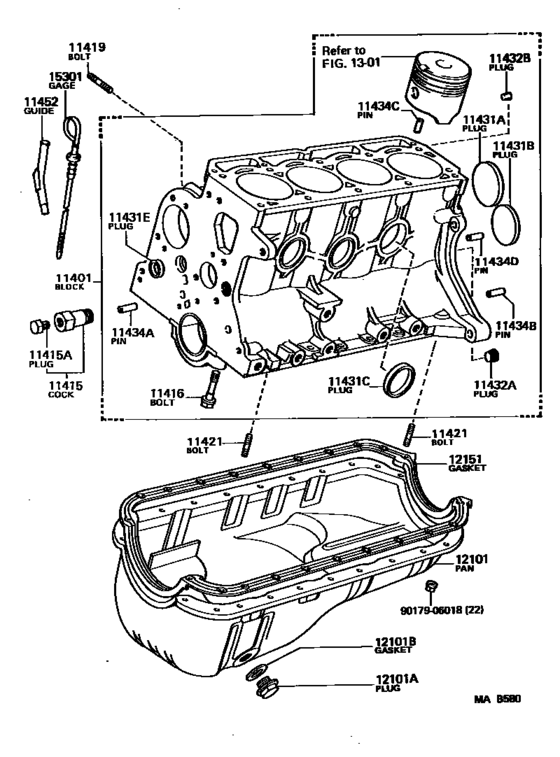

Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#) 28

#	OEM	Part name
11401	11401-19335	Block Sub-Assy, Cylinder
11401	11011-11010	Washer Set, Crankshaft Thrust
11401	11401-19336	Block Sub-Assy, Cylinder
11401	90910-09091	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	96431-53828	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	96432-23814	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02019	Bolt(For Crankshaft Bearing Cap Set)
11419	90116-08102	Bolt, Stud(For Fuel Pump)
11421	90116-06006	Bolt, Stud(For Timing Gear Cover)
11431	90331-47025	Plug, Tight, No.1(For Cylinder Block)
11431	96411-44500	Plug, Tight, No.4
11431	96411-43500	Plug, Tight, No.1
11431	96412-01800	Plug, Tight, No.5(For Cylinder Block)
11432	90344-53011	Plug, W/head Taper Screw, No.1
11432	90344-51014	Plug, W/head Taper Screw, No.2
11434	90250-08120	Pin, Straight, No.1
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11452	11452-13030	Guide, Oil Level Gage
12101	12101-13070	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-T0004	Plug(For Oil Pan Drain)
12101	90430-12019	Gasket(For Oil Pan Drain Plug)
12101	90430-12028	Gasket (For Drain Plug)
12101	90430-12027	Gasket(For Oil Pan Drain Plug)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12151	12151-13011	Gasket, Oil Pan
15301	15301-13040	Gage Sub-Assy, Oil Level
9017906018	90179-06018	New Genuine Part

OEM	Part name	Category
11011-11010	Washer Set, Crankshaft Thrust	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
11401-19335	Block Sub-Assy, Cylinder	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
11401-19336	Block Sub-Assy, Cylinder	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
11452-13030	Guide, Oil Level Gage	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
12101-13070	Pan Sub-Assy, Oil	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
12151-13011	Gasket, Oil Pan	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
15301-13040	Gage Sub-Assy, Oil Level	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90116-06006	Bolt, Stud(For Timing Gear Cover)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90116-08102	Bolt, Stud(For Fuel Pump)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90179-06018	New Genuine Part	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90250-08120	Pin, Straight, No.1	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90331-47025	Plug, Tight, No.1(For Cylinder Block)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90341-T0004	Plug(For Oil Pan Drain)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90344-51014	Plug, W/head Taper Screw, No.2	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90344-53011	Plug, W/head Taper Screw, No.1	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90430-12019	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90430-12027	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90430-12028	Gasket (For Drain Plug)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90910-02019	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
90910-09091	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
96411-43500	Plug, Tight, No.1	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
96411-44500	Plug, Tight, No.4	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
96412-01800	Plug, Tight, No.5(For Cylinder Block)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
96431-53828	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
96432-23814	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([08.1988 - ] (8808- )4KJ,5K#)
