KM31

Toyota LITEACE · 1985 · 3,641 parts · 176 categories
KM31 ×

← Back to categories

3,641 items

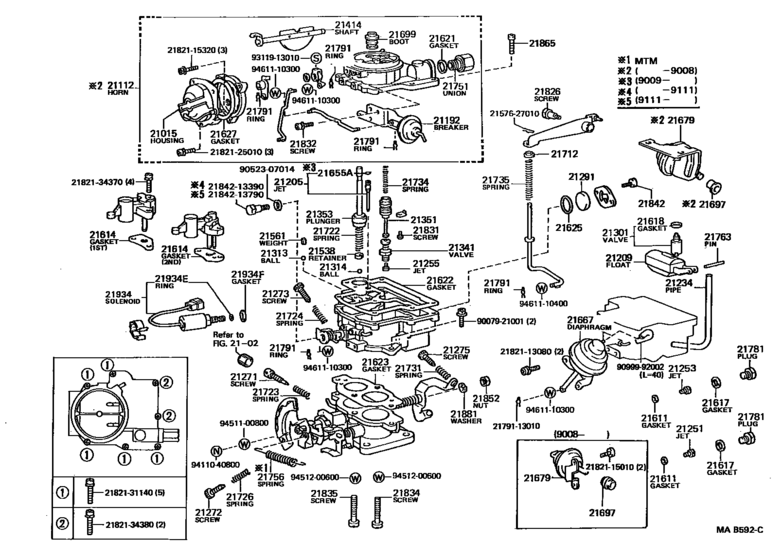

Carburetor ([08.1988 - ] (8808- )5KJ) 112
#OEMPart name
21015 21015-13531 Housing Sub-Assy, Coil
21015 21015-13730 Housing Sub-Assy, Coil
21112 21112-13550 Horn, Air
21192 21192-13530 Breaker
21192 21192-13550 Breaker
21205 21205-13250 Jet Sub-Assy, Slow
21205 21205-13730 Jet Sub-Assy, Slow
21205 21205-13731 Jet Sub-Assy, Slow
21209 21209-13310 Float Sub-Assy
21209 21209-24480 Float Sub-Assy
21234 21234-61020 Pipe Or Hose
21234 90079-70004 Pipe Or Hose, Connecting
21251 90999-41099 Jet, 1St Main
21251 90999-41102 Jet, 1St Main
21253 90999-42159 Jet, 2Nd Main
21255 90999-43053 Jet, Power
21255 90999-43100 Jet, Power
21271 21271-13270 Screw, Idle Adjusting
21271 21271-13271 Screw, Idle Adjusting
21272 21814-33010 Screw, 1St Idle Adjusting
21273 21273-13390 Screw, Throttle Adjusting
21273 21273-24231 Screw, Throttle Adjusting
21275 21275-10050 Screw, Adjusting
21275 21275-24360 Screw, Adjusting
21291 21291-34320 Glass, Level Gage
21301 21301-13310 Valve Sub-Assy, Needle
21301 21301-24501 Valve Sub-Assy, Needle
21301 21301-13080 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21314 21314-60010 Ball, Steel, No.2(For Pump Plunger)
21314 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21341 21304-30010 Valve, Power
21341 21341-13710 Valve, Power
21351 21351-11610 Piston, Power
21351 21351-24230 Piston, Power
21353 21353-13590 Plunger, Pump
21353 21353-11720 Plunger, Pump
21353 21353-24010 Plunger, Pump
21414 21054-13391 Shaft, Choke
21538 21538-31010 Retainer, Ball Check
21561 21561-22010 Weight, Pump Discharge
21611 21611-22010 Gasket, Main Jet
21614 21614-13430 Gasket, Venturi
21614 21614-22010 Gasket, Venturi
21614 21614-24580 Gasket, Venturi
21614 21614-24360 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-13430 Gasket, Air Horn
21622 21622-24360 Gasket, Air Horn
21623 21623-13080 Gasket, Body Flange
21623 21623-13430 Gasket, Body Flange
21625 21655-60200 Gasket, Level Gage
21627 21627-28090 Gasket, Coil Housing
21627 21627-28150 Gasket, Coil Housing
21655 21655-44101 Ring, O(For Lifter Rod)
21667 21667-13390 Diaphragm
21667 21667-13730 Diaphragm
21679 21679-13530 Positioner
21679 21679-13550 Positioner
21697 21699-24360 Boot(For Opener)
21697 21699-41010 Boot(For Dash Pot)
21699 21699-28150 Boot(For Pump Plunger)
21712 21712-38010 Bush, Sliding Rod
21712 21712-61020 Bush, Sliding Rod
21722 21722-22010 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21724 21864-24230 Spring, Throttle Adjusting
21726 21726-40010 Spring, Throttle Adjusting
21731 21864-24010 Spring, Throttle Adjusting
21734 21734-11730 Spring, Power Piston
21734 21734-13550 Spring, Power Piston
21735 21735-22010 Spring, Pump Arm
21751 21751-24034 Union, Nipple
21756 90507-10003 Spring, Back(For Throttle Shaft)
21763 21763-38010 Pin, Float Lever
21781 21781-15230 Plug, Main Passage(For Carburetor Jet)
21791 21791-13011 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21826 21826-24470 Screw, Pump Arm Set
21831 21821-15060 Screw, 2Nd Throttle Valve Set
21832 21821-15010 Screw(For Choke Lever Adapter Set)
21834 21834-31010 Screw, Set, No.1(For Carburetor Body Set)
21835 21835-40010 Screw, Set, No.1(For Carburetor Body Set)
21842 21842-33010 Screw, Power Piston Stop
21852 21852-30010 Nut, Throttle Lever Set
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-13531 Solenoid, Throttle Valve
21934 21062-13280 Solenoid, Throttle Valve
21934 21062-13550 Solenoid, Throttle Valve
21934 21062-16190 Solenoid, Throttle Valve
21934 21649-38010 Gasket
2157627010 21576-27010 Clip, Pump Strainer
2182113080 21821-13080 Screw, 2nd Throttle Valve Set
2182115320 21821-15320 Screw, 2nd Throttle Valve Set
2182125010 21821-25010 Screw, Coil Housing Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2182134370 21821-34370 Screw, 2nd Throttle Valve Set
2182134380 21821-34380 Screw, 2nd Throttle Valve Set
2184213390 21842-13390 Screw, Set(For Carburetor Level Gage Clamp Set)
2184213390 21842-13790 Screw, Set(For Carburetor Level Gage Clamp Set)
9007921001 90079-21001 New Genuine Part
9052307014 90523-07014 Ring, E(For Reverse Shift Arm)
9099992002 90999-92002 Air Hose (300 mm)
9311913010 93119-13010 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100800 94511-00800 WASHERSPRING
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
