Search › Model › KM30

KM30

Toyota LITEACE · 1985 · 4,629 parts · 265 categories

← Back to categories

4,629 items

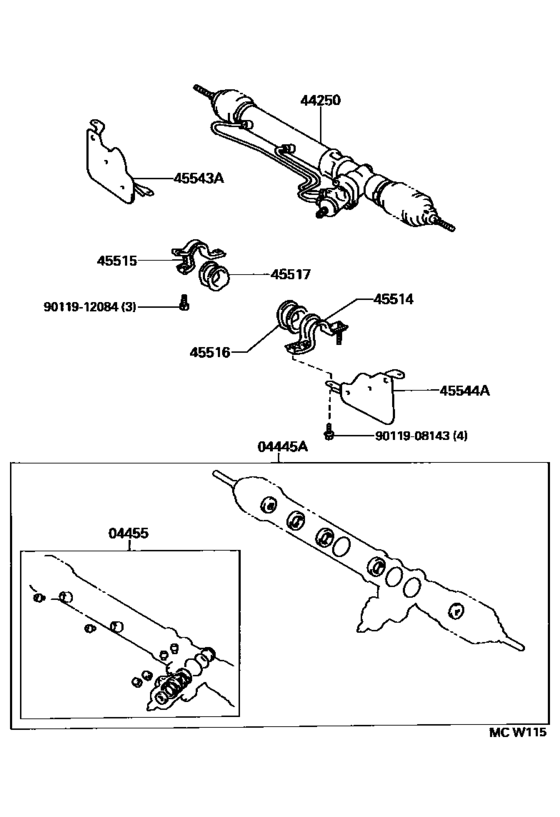

Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30) 15

#	OEM	Part name
4445	04445-28041	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455	04455-28020	Gasket Kit, Power Steering Control Valve Overhole
4455	04455-20120	Gasket Kit, Power Steering Control Valve Overhole
44250	44250-27100	Gear Assy, Power Steering(For Rack & Pinion)
44250	44250-27101	Gear Assy, Power Steering(For Rack & Pinion)
45514	45514-28020	Bracket, Steering Rack Housing, No.1
45515	45515-28020	Bracket, Steering Rack Housing, No.2
45515	45515-28030	Bracket, Steering Rack Housing, No.2
45516	45516-27010	Grommet, Steering Rack Housing, No.1
45517	45517-27010	Grommet, Steering Rack Housing, No.2
45517	45517-27020	Grommet, Steering Rack Housing, No.2
45543	45057-95701	Protector, Steering Rack Boot, Rh
45544	45058-95701	Protector, Steering Rack Boot, Lh
9011908143	90119-08143	New Genuine Part
9011912084	90119-12084	New Genuine Part

OEM	Part name	Category
04445-28041	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
04455-20120	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
04455-28020	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
44250-27100	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
44250-27101	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
45057-95701	Protector, Steering Rack Boot, Rh	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
45058-95701	Protector, Steering Rack Boot, Lh	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
45514-28020	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
45515-28020	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
45515-28030	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
45516-27010	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
45517-27010	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
45517-27020	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
90119-08143	New Genuine Part	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)
90119-12084	New Genuine Part	Front Steering Gear & Link ([04.1996 - ] POWER STEERING (8908- )YM30 ; (9604- )KM30)

Source: Public OEM parts-catalog data
Variants: 2 / 28
Category: 265
Collected: 2026-08-04
