Search › Model › KM20V

KM20V

Toyota LITE-TOWNACE · 1979 · 3,697 parts · 161 categories
KM20V ×

← Back to categories

3,697 items

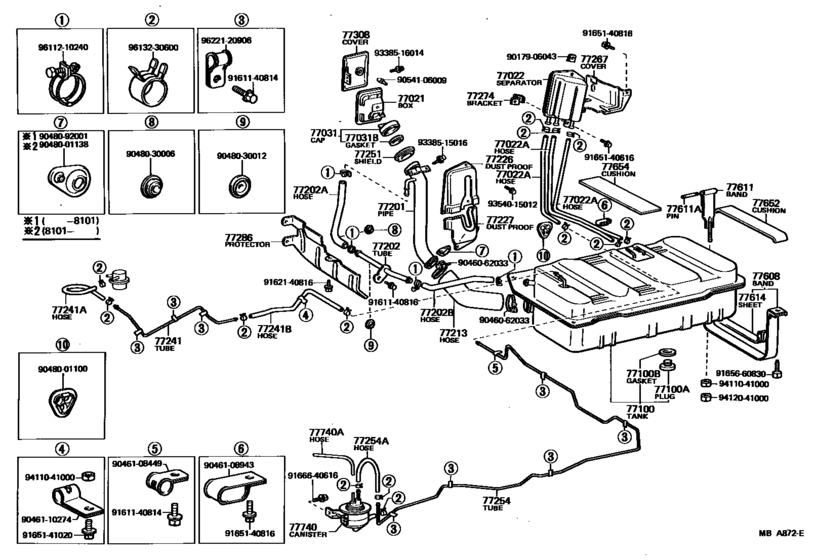

Fuel Tank & Tube ([10.1979 - 10.1982] (7910-8210)V..ST) 79
#OEMPart name
77021 77301-95700 Box Assy, Fuel Tank Inlet
77022 77271-28011 Separator Sub-Assy, Fuel Evaporative
77022 77259-27070 Hose, Fuel(For Fuel Evaporative Separator)
77022 77259-27080 Hose, Fuel(For Fuel Evaporative Separator)
77031 77310-14070 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77100 77001-27050 Tank Assy, Fuel
77100 90341-24036 Plug(For Fuel Tank)
77100 90430-24047 Gasket(For Fuel Tank)
77201 77201-27080 Pipe Sub-Assy, Fuel Tank Inlet
77202 77203-27050 Tube Sub-Assy, Breather
77202 77203-27051 Tube Sub-Assy, Breather
77202 90445-24022 Hose, Fuel, No.1 (For Breather Tube)
77202 77259-27050 Hose, Fuel, No.2 (For Breather Tube)
77202 77259-27051 Hose, Fuel, No.2 (For Breather Tube)
77213 77259-27020 Hose, Fuel Tank Sub Inlet
77241 77251-27040 Tube, Fuel Main, No.1
77241 95332-06030 Hose(For Carburetor)
77241 95333-06030 Hose, Fuel
77241 95332-06060 Hose, Fuel
77241 95333-06060 Hose, Fuel
77251 77251-10010 Shield, Fuel Tank, Inlet, No.1
77254 77263-27020 Tube, Fuel Emission, No.1
77267 77267-95700 Cover, Fuel Evaporative Tube
77274 77274-27010 Bracket, Fuel Evaporative Separator
77286 77277-27010 Protector, Fuel Tank Inlet Pipe
77308 77310-95700 Cover Sub-Assy, Fuel Inlet Box
77608 77602-27010 Band Sub-Assy, Fuel Tank, No.2
77608 77602-27013 Band Sub-Assy, Fuel Tank, No.2
77608 77602-27011 Band Sub-Assy, Fuel Tank, No.2
77611 77601-27020 Band, Fuel Tank
77611 77629-25010 Pin (For Fuel Tank Band)
77614 77614-36040 Seat, Fuel Tank Band
77614 77681-22010 Seat, Fuel Tank Band
77652 77651-27020 Cushion, Fuel Tank, No.1
77652 77651-27100 Cushion, Fuel Tank, No.1
77654 77651-27030 Cushion, Fuel Tank, No.2
77654 77651-27090 Cushion, Fuel Tank, No.2
77740 77740-27030 Canister Assy, Charcoal
77740 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
77740 90999-92003 Hose, Breather (For Transfer Case)
9017906043 90179-06043 New Genuine Part
9046062033 90460-62033 Clamp(For Air Cleaner Hose, No.1)
9046062033 96111-10620 Clamp, Hose(For Air Connector)
9046108449 90461-08449 New Genuine Part
9046108943 90461-08943 New Genuine Part
9046110274 90461-10274 New Genuine Part
9048001100 90480-01100 New Genuine Part
9048001138 90480-01138 New Genuine Part
9048001138 90480-01140 New Genuine Part
9048030006 90480-30006 New Genuine Part
9048030012 90480-30012 New Genuine Part
9048092001 90480-92001 Grommet
9054106009 90541-06009 New Genuine Part
9054106009 90541-06033 New Genuine Part
9161140814 91611-40814 Bolt(For Manual Transmission Oil Pan Setting)
9161140814 91611-60814 Bolt
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
9162140816 91621-40816 BOLTWWASHER
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140816 91651-40816 BOLT
9165141020 91651-41020 BOLT W-WASHER
9165660830 91656-60830 Bolt (For Transfer Power Take-Off Cover)
9165660830 91651-60830 Bolt (For Transfer Power Take-Off Cover)
9166640616 91666-40616 New Genuine Part
9166640616 91661-60616 BOLT
9338515016 93385-15016 New Genuine Part
9338516014 93385-16014 New Genuine Part
9354015012 93540-15012 New Genuine Part
9411041000 94110-41000 Nut(For Steering Damper)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9611210240 96112-10240 Clamp Or Clip, Hose(For Oil Cooler Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9622120906 96221-20906 New Genuine Part
