Search › Model › KM20V

KM20V

Toyota LITE-TOWNACE · 1979 · 3,697 parts · 161 categories

3,697 items

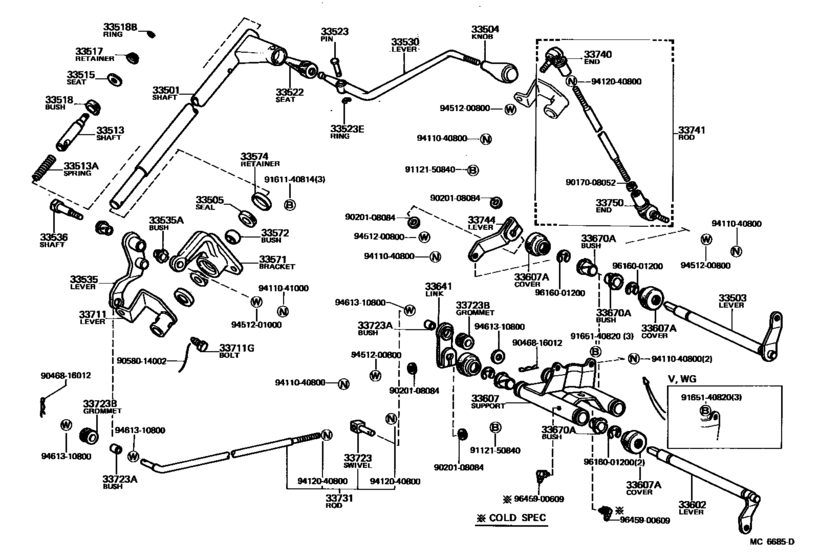

Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H) 57

#	OEM	Part name
33501	33501-27050	Shaft Sub-Assy, Control (For Column Shift)
33503	33503-27020	Lever Sub-Assy, Shift(For Column Shift)
33504	33504-30110	Knob Sub-Assy, Shift Lever (For Column Shift)
33505	90303-17005	Seal Sub-Assy, Control Shaft Dust (For Column Shift)
33513	33513-36020	Shaft, Control Shaft Bracket, Upper
33513	90501-14395	Spring, Compression (For Bracket Upper Shaft)
33515	33515-30010	Seat, Control Shaft Upper
33517	33517-30010	Retainer, Control Shaft Upper Spring
33518	33518-36010	Bush, Upper Control Shaft Piece
33518	33518-35010	Bush, Upper Control Shaft Piece
33518	90523-06019	Ring, E (For Upper Control Shaft Piece Bush)
33522	33522-35010	Seat, Shift Lever Plate (For Column Shift)
33523	90249-07001	Pin, Shift Lever (For Column Shift)
33523	96160-00500	Ring, E(For Over Center Lever)
33530	33541-27050	Lever Assy, Shift (For Column Shift)
33535	33535-27030	Lever, Control Select (For Column Shift)
33535	90386-13007	Bush(For Clutch Pedal)
33536	33536-25010	Shaft, Control Select Lever (For Column Shift)
33571	33571-26012	Bracket, Control Shaft, Lower (For Column Shift)
33572	33572-36010	Bush, Control Shaft Lower (For Column Shift)
33574	33574-25010	Retainer, Dust Seal (For Column Shift Control Shaft)
33602	33602-27020	Lever Sub-Assy, Select (For Column Shift)
33607	33607-27030	Support Sub-Assy, Control Rod (For Column Shift)
33607	33607-27050	Support Sub-Assy, Control Rod (For Column Shift)
33607	33775-28020	Cover, Dust (For Control Support)
33641	33641-27020	Link, Selecting (For Column Shift)
33670	90386-15082	Bush (For Control Rod Support)
33711	33527-26030	Lever, Control Shaft (For Column Shift)
33711	33218-35010	Bolt, Shift Lever Lock
33723	33723-10020	Swivel, Connecting Rod (For Column Shift)
33723	90389-08005	Bushing(For Gear Selecting Rod)
33723	90480-17177	Grommet (For Transmission Control Rod)
33731	33720-27020	Rod, Gear Selecting, No.1 (For Column Shift)
33740	33740-35011	End Assy, Connecting Rod, No.1(For Column Shift)
33740	33740-26010	End Assy, Connecting Rod, No.1(For Column Shift)
33741	33710-27020	Rod, Gear Shifting, No.1 (For Column Shift)
33741	33710-26H91	Rod, Gear Shifting, No.1 (For Column Shift)
33744	33744-27020	Lever, Gear Shifting, No.1 (For Column Shift)
33750	33750-35011	End, Connecting Rod, No.2 (For Column Shift)
33750	33750-26010	End, Connecting Rod, No.2 (For Column Shift)
9017008052	90170-08052	Nut, Hexagon (For Column Shift Selecting Or Shifting Rod)
9020108084	90201-08084	New Genuine Part
9046816012	90468-16012	Pin, Sub Seat Cushion Pin
9058014002	90580-14002	Wire(For Shift Lever Lock Bolt)
9112150840	91121-50840	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9165140820	91651-40820	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461310800	94613-10800	Spacer (For Control Select Lever Support)
9616001200	96160-01200	Ring, E(For Clutch Release Cable)
9645900609	96459-00609	Fitting, Grease

OEM	Part name	Category
33218-35010	Bolt, Shift Lever Lock	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33501-27050	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33503-27020	Lever Sub-Assy, Shift(For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33504-30110	Knob Sub-Assy, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33513-36020	Shaft, Control Shaft Bracket, Upper	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33515-30010	Seat, Control Shaft Upper	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33517-30010	Retainer, Control Shaft Upper Spring	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33518-35010	Bush, Upper Control Shaft Piece	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33518-36010	Bush, Upper Control Shaft Piece	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33522-35010	Seat, Shift Lever Plate (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33527-26030	Lever, Control Shaft (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33535-27030	Lever, Control Select (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33536-25010	Shaft, Control Select Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33541-27050	Lever Assy, Shift (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33571-26012	Bracket, Control Shaft, Lower (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33572-36010	Bush, Control Shaft Lower (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33574-25010	Retainer, Dust Seal (For Column Shift Control Shaft)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33602-27020	Lever Sub-Assy, Select (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33607-27030	Support Sub-Assy, Control Rod (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33607-27050	Support Sub-Assy, Control Rod (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33641-27020	Link, Selecting (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33710-26H91	Rod, Gear Shifting, No.1 (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33710-27020	Rod, Gear Shifting, No.1 (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33720-27020	Rod, Gear Selecting, No.1 (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33723-10020	Swivel, Connecting Rod (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33740-26010	End Assy, Connecting Rod, No.1(For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33740-35011	End Assy, Connecting Rod, No.1(For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33744-27020	Lever, Gear Shifting, No.1 (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33750-26010	End, Connecting Rod, No.2 (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33750-35011	End, Connecting Rod, No.2 (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
33775-28020	Cover, Dust (For Control Support)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90170-08052	Nut, Hexagon (For Column Shift Selecting Or Shifting Rod)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90201-08084	New Genuine Part	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90249-07001	Pin, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90303-17005	Seal Sub-Assy, Control Shaft Dust (For Column Shift)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90386-13007	Bush(For Clutch Pedal)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90386-15082	Bush (For Control Rod Support)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90389-08005	Bushing(For Gear Selecting Rod)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90468-16012	Pin, Sub Seat Cushion Pin	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90480-17177	Grommet (For Transmission Control Rod)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90501-14395	Spring, Compression (For Bracket Upper Shaft)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90523-06019	Ring, E (For Upper Control Shaft Piece Bush)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
90580-14002	Wire(For Shift Lever Lock Bolt)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
91121-50840	New Genuine Part	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
91611-60814	Bolt	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
91651-40820	Bolt	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
94110-40800	Nut(For Steering Damper)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
94110-41000	Nut(For Steering Damper)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
94120-40800	Nut(For Clutch Pedal Stopper)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
94130-00802	Nut, No.1 (For Center Support Bearing)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
94613-10800	Spacer (For Control Select Lever Support)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
96160-00500	Ring, E(For Over Center Lever)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
96160-01200	Ring, E(For Clutch Release Cable)	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)
96459-00609	Fitting, Grease	Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H)

Source: Public OEM parts-catalog data
Variants: 2 / 24
Category: 161
Collected: 2026-08-04
