Search › Model › KM20
KM20

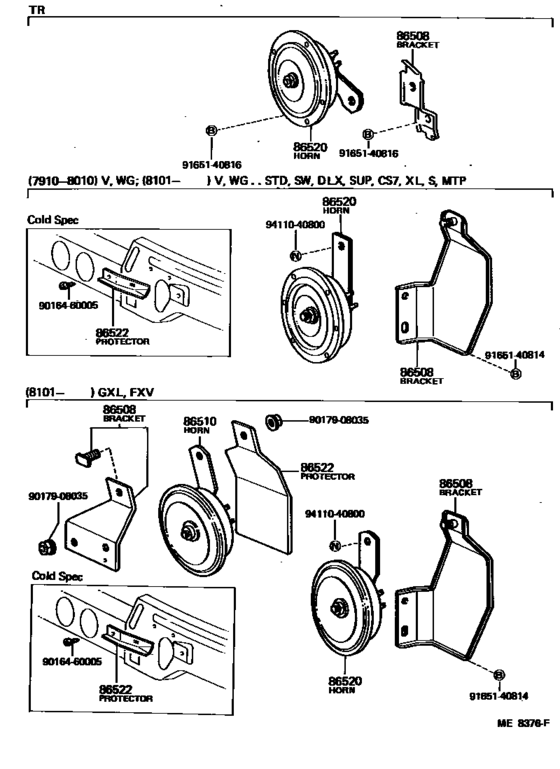

Horn ([10.1979 - ] (7910- )) 11
| # | OEM | Part name |
|---|---|---|
| 86520 | 86520-87401 | Horn Assy, Low Pitched |
| 86520 | 86520-28H90 | Horn Assy, Low Pitched |
| 86520 | 86520-87403 | Horn Assy, Low Pitched |
| 9016460005 | 90164-60005 | New Genuine Part |
| 9016460005 | 90164-60032 | New Genuine Part |
| 9017908035 | 90179-08035 | New Genuine Part |
| 9165140814 | 91651-40814 | BOLT |
| 9165140814 | 90080-11228 | New Genuine Part |
| 9165140816 | 91651-40816 | BOLT |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 86520-28H90 | Horn Assy, Low Pitched | Horn ([10.1979 - ] (7910- )) |
| 86520-87401 | Horn Assy, Low Pitched | Horn ([10.1979 - ] (7910- )) |
| 86520-87403 | Horn Assy, Low Pitched | Horn ([10.1979 - ] (7910- )) |
| 90080-11228 | New Genuine Part | Horn ([10.1979 - ] (7910- )) |
| 90164-60005 | New Genuine Part | Horn ([10.1979 - ] (7910- )) |
| 90164-60032 | New Genuine Part | Horn ([10.1979 - ] (7910- )) |
| 90179-08035 | New Genuine Part | Horn ([10.1979 - ] (7910- )) |
| 91651-40814 | BOLT | Horn ([10.1979 - ] (7910- )) |
| 91651-40816 | BOLT | Horn ([10.1979 - ] (7910- )) |
| 94110-40800 | Nut(For Steering Damper) | Horn ([10.1979 - ] (7910- )) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Horn ([10.1979 - ] (7910- )) |
