KM20

Toyota LITE-TOWNACE · 1979 · 3,369 parts · 152 categories
KM20 ×

← Back to categories

3,369 items

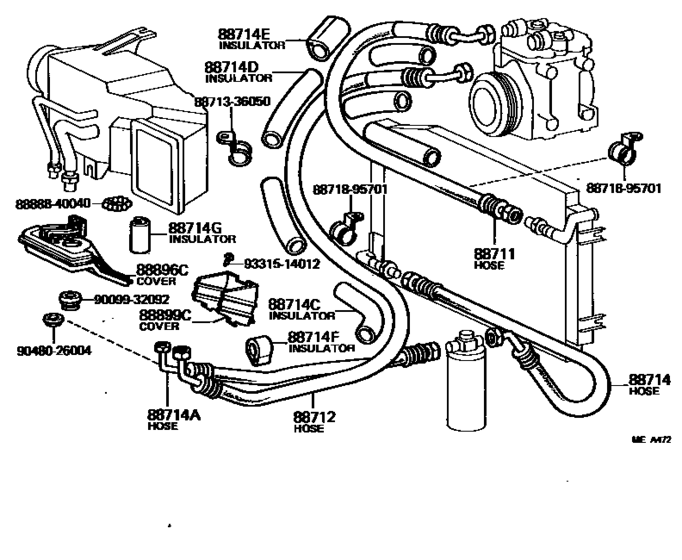

Heating & Air Conditioning - Cooler Piping ([10.1979 - 10.1982] (7910-8210)TR..DLX) 17
#OEMPart name
88711 88711-95703 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-87401 Hose, Cooler Refrigerant Suction, No.1
88714 88721-87402 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-87401 Hose, Cooler Refrigerant Liquid, No.2
88714 88714-14010 Insulator, Cooler Refrigerant Hose, No.1
88714 88714-20030 Insulator, Cooler Refrigerant Hose, No.2
88714 88714-95700 Insulator, Cooler Refrigerant Hose, No.1
88714 88714-14020 Insulator, Cooler Refrigerant Hose, No.2 - COOLER REFRIGERANT HOSE, NO.1
88714 88592-30190 Insulator, Cooler Refrigerant Pipe, No.1
88896 88896-95700 Cover, Cooler Refrigerant Pipe, No.1
88899 88899-95702 Cover, Cooler Refrigerant Pipe, No.2
8871336050 88713-36050 Hose, Cooler Refrigerant Suction, No.2
8871895701 88718-95701 Pipe, Cooler Refrigerant Suction, No.2
8888840040 88888-40040 Clamp (For Idle Up Divice), No.1
9009932092 90099-32092 New Genuine Part
9048026004 90480-26004 Grommet, Heater Hose
9331514012 93315-14012 Screw with washer
