Search › Model › KM20

KM20

Toyota LITE-TOWNACE · 1979 · 3,369 parts · 152 categories

3,369 items

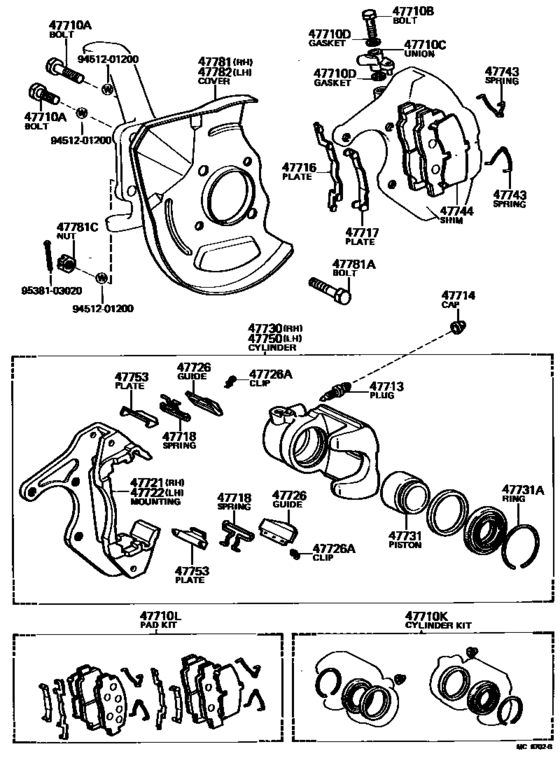

Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210)) 32

#	OEM	Part name
47710	90101-12019	Bolt, Hexagon(For Front Disc Brake Caliper)
47710	90101-12063	Bolt, Hexagon(For Front Disc Brake Caliper)
47710	90119-12068	Bolt, Hexagon(For Front Disc Brake Caliper)
47710	90401-10009	Bolt, Union(For Front Disc Brake Caliper)
47710	90404-10014	Union(For Water By-Pass Hose)
47710	90404-10015	Union(For Front Disc Brake Caliper)
47710	90430-10074	Gasket(For Oil Pressure Regulator)
47710	04479-14020	Cylinder Kit, Disc Brake, Front
47710	04491-27021	Pad Kit, Disc Brake, Front
47710	04465-27100	Pad Kit, Disc Brake, Front
47713	47547-12020	Plug, Bleeder(For Front Disc Brake)
47714	31478-30010	Bleeder Plug Cap
47716	47716-27010	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-27010	Plate, Pad Support, No.2(For Front Disc Brake)
47718	47718-27010	Spring, Front Disc Brake Cylinder Support
47721	47721-27011	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-27011	Mounting, Front Disc Brake Cylinder, Lh
47726	47726-27011	Guide, Front Disc Brake Cylinder
47726	90468-12134	Clip(For Front Disc Brake Cylinder)
47730	47730-27011	Cylinder Assy, Front Disc Brake, Rh
47731	47731-14020	Piston, Front Disc Brake
47731	90522-62001	Ring, Set(For Front Disc Brake Piston)
47743	47743-27010	Spring, Anti-Rattle, No.2(For Front Disc Brake)
47744	47744-20030	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47750	47750-27011	Cylinder Assy, Disc Brake, Lh
47753	47753-14020	Plate, Cylinder Guide
47781	47781-27021	Cover, Disc Brake Dust, Front Rh
47781	90102-12001	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47781	94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)
47782	47782-27021	Cover, Disc Brake Dust, Front Lh
9451201200	94512-01200	Washer
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
04465-27100	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
04479-14020	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
04491-27021	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47547-12020	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47716-27010	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47717-27010	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47718-27010	Spring, Front Disc Brake Cylinder Support	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47721-27011	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47722-27011	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47726-27011	Guide, Front Disc Brake Cylinder	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47730-27011	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47731-14020	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47743-27010	Spring, Anti-Rattle, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47744-20030	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47750-27011	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47753-14020	Plate, Cylinder Guide	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47781-27021	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
47782-27021	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90101-12019	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90101-12063	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90102-12001	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90119-12068	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90401-10009	Bolt, Union(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90404-10014	Union(For Water By-Pass Hose)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90404-10015	Union(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90430-10074	Gasket(For Oil Pressure Regulator)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90468-12134	Clip(For Front Disc Brake Cylinder)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
90522-62001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
94512-01200	Washer	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Disc Brake Caliper & Dust Cover ([10.1979 - 10.1982] (7910-8210))
