Search › Model › KM20

KM20

Toyota LITE-TOWNACE · 1979 · 3,369 parts · 152 categories

3,369 items

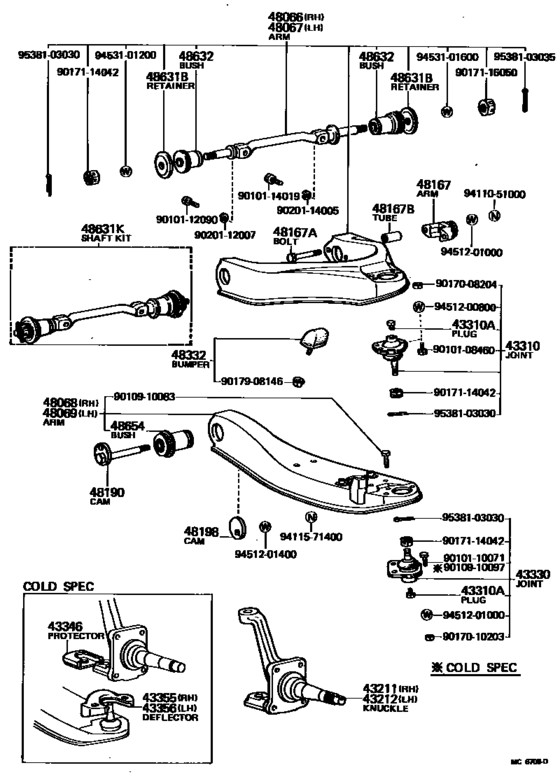

Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210)) 57

#	OEM	Part name
43211	43211-27010	Knuckle, Steering, Rh
43310	43350-29035	Joint Assy, Upper Ball
43310	43350-29076	Joint Assy, Upper Ball
43310	43360-29055	Joint Assy, Upper Ball
43310	90345-06014	Plug (For Ball Joint)
43330	43330-29095	Joint Assy, Lower Ball, Front
43330	43340-29075	Joint Assy, Lower Ball, Front
43346	43346-20021	Protector, Lower Ball Joint Dust Cover
43355	43355-27010	Deflector, Lower Arm Ice, Rh
48066	48066-27020	Arm Sub-Assy, Front Suspension, Upper Rh
48066	48610-28013	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48067-27020	Arm Sub-Assy, Front Suspension, Upper Lh
48067	48630-28013	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-27030	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-27030	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167	48106-27010	Arm, Torque
48167	48106-28010	Arm, Torque
48167	91121-71085	Bolt(For Torque Arm Setting)
48167	90440-17029	Tube(For Torque Arm Setting Bolt)
48190	48190-20010	Cam Assy, Camber Adjust
48190	90179-14046	Nut
48190	48190-27020	Cam Assy, Camber Adjust
48198	48198-20010	Cam, Camber Adjust, No.2
48198	48198-27010	Cam, Camber Adjust, No.2
48332	48305-39015	Bumper, Front Spring, No.1
48332	48305-30030	Bumper Sub-Assy, Front Spring, No.2
48631	90948-02048	Retainer, Cushion(For Front Suspension Upper Arm)
48631	90948-02049	Retainer, Cushion(For Front Suspension Upper Arm)
48631	04485-27010	Shaft Kit, Upper Suspension Arm
48631	04485-28020	Shaft Kit, Upper Suspension Arm
48632	48632-30040	Bush, Upper Arm
48632	48635-27010	Bush, Upper Arm
48654	48061-20020	Bush, Lower Arm
9010108460	90101-08460	New Genuine Part
9010110071	90101-10071	New Genuine Part
9010112090	90101-12090	New Genuine Part
9010114019	90101-14019	New Genuine Part
9010910083	90109-10083	Bolt (For Front Lower Ball Joint)
9010910097	90109-10097	Bolt (For Front Lower Ball Joint)
9017008204	90170-08204	Nut (For Propeller Shaft)
9017010203	90170-10203	New Genuine Part
9017114042	90171-14042	Nut, Castle(For Pitman Arm)
9017116050	90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9020112007	90201-12007	Washer, Spring(For Rear Differential Case)
9020114005	90201-14005	Washer, Plate
9411051000	94110-51000	Nut(For Steering Center Arm)
9411571400	94115-71400	Nut, Timer Round
9411571400	94130-01402	Nut, Timer Round
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9453101200	94531-01200	WASHER
9453101600	94531-01600	WASHER
9538103030	95381-03030	New Genuine Part
9538103035	95381-03035	New Genuine Part

OEM	Part name	Category
04485-27010	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
04485-28020	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
43211-27010	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
43330-29095	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
43340-29075	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
43346-20021	Protector, Lower Ball Joint Dust Cover	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
43350-29035	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
43350-29076	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
43355-27010	Deflector, Lower Arm Ice, Rh	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
43360-29055	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48061-20020	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48066-27020	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48067-27020	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48068-27030	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48069-27030	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48106-27010	Arm, Torque	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48106-28010	Arm, Torque	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48190-20010	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48190-27020	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48198-20010	Cam, Camber Adjust, No.2	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48198-27010	Cam, Camber Adjust, No.2	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48305-30030	Bumper Sub-Assy, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48305-39015	Bumper, Front Spring, No.1	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48610-28013	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48630-28013	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48632-30040	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
48635-27010	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90101-08460	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90101-10071	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90101-12090	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90101-14019	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90109-10083	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90109-10097	Bolt (For Front Lower Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90170-08204	Nut (For Propeller Shaft)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90170-10203	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90171-14042	Nut, Castle(For Pitman Arm)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90179-08146	Nut	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90179-08204	Nut	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90179-14046	Nut	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90201-12007	Washer, Spring(For Rear Differential Case)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90201-14005	Washer, Plate	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90440-17029	Tube(For Torque Arm Setting Bolt)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90948-02048	Retainer, Cushion(For Front Suspension Upper Arm)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
90948-02049	Retainer, Cushion(For Front Suspension Upper Arm)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
91121-71085	Bolt(For Torque Arm Setting)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
94110-51000	Nut(For Steering Center Arm)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
94115-71400	Nut, Timer Round	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
94130-01402	Nut, Timer Round	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
94512-01400	Washer(For Rear Spring U Bolt)	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
94531-01200	WASHER	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
94531-01600	WASHER	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
95381-03030	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
95381-03035	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1979 - 10.1982] (7910-8210))
