Search › Model › KM20

KM20

Toyota LITE-TOWNACE · 1979 · 3,369 parts · 152 categories

3,369 items

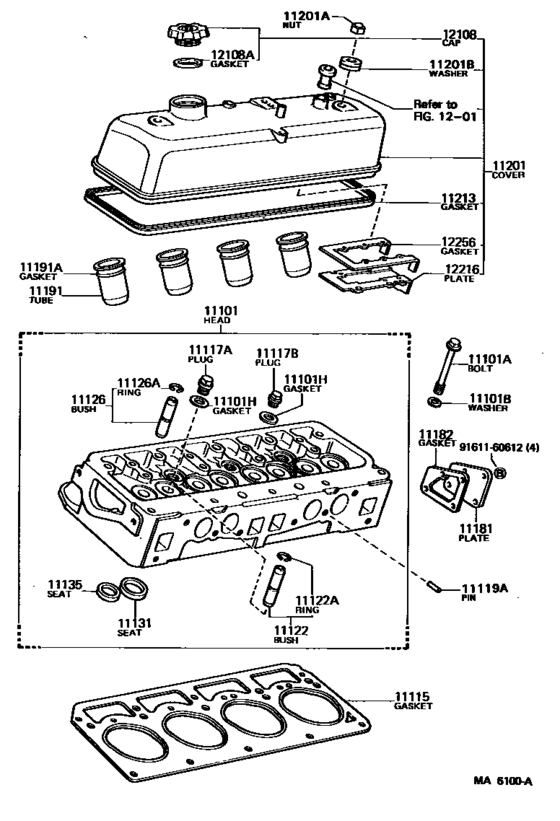

Cylinder Head ([05.1982 - ] (8205- )4KJ) 43

#	OEM	Part name
11101	11101-13011	Head Sub-Assy, Cylinder
11101	11101-19045	Head Sub-Assy, Cylinder
11101	13715-24013	Valve, Exhaust
11101	13715-24031	Valve, Exhaust
11101	90910-02020	Bolt(For Cylinder Head Set)
11101	90910-02069	Bolt(For Cylinder Head Set)
11101	90201-10005	Washer, Plate(For Cylinder Head Set)
11101	90430-15151	Gasket(For Cylinder Head Screw Plug)
11101	90430-18152	Gasket(For Cylinder Head Screw Plug)
11115	11115-13010	Gasket, Cylinder Head
11115	11115-13050	Gasket, Cylinder Head
11115	11115-13030	Gasket, Cylinder Head
11115	11115-13031	Gasket, Cylinder Head
11117	90341-18063	Plug, W/head Taper Screw, No.1
11117	90341-15045	Plug, W/head Taper Screw, No.2
11119	90250-08120	Pin, Straight, No.1
11122	11122-24020	Bush, Intake Valve Guide
11122	11123-24020	Bush, Intake Valve Guide
11122	90520-12049	Ring, Shaft Snap (For Valve Guide Bush)
11126	11126-24020	Bush, Intake Valve Guide
11126	11127-24020	Bush, Intake Valve Guide
11131	11131-24010	Seat, Intake Valve
11131	11132-24010	Seat, Intake Valve
11135	11135-13010	Seat, Exhaust Valve
11135	11136-13010	Seat, Exhaust Valve
11181	11181-24020	Plate, Cylinder Head, Rear
11181	11181-13020	Plate, Cylinder Head, Rear
11182	11182-24010	Gasket, Cylinder Head Rear Plate
11182	11182-13020	Gasket, Cylinder Head Rear Plate
11191	11191-22010	Tube, Spark Plug
11191	90430-31141	Gasket(For Spark Plug Tube)
11191	90430-31003	Gasket(For Spark Plug Tube)
11201	11201-19026	Cover Sub-Assy, Cylinder Head
11201	11201-13021	Cover Sub-Assy, Cylinder Head
11201	94171-10800	Nut, Cap(For Cylinder Head Cover)
11201	90210-09007	Washer, Seal(For Cylinder Head Cover)
11213	11213-22010	Gasket, Cylinder Head Cover
12108	12180-13010	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
12216	12216-22010	Plate, Ventilation Baffle
12256	12256-22010	Gasket, Ventilation Baffle
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt

OEM	Part name	Category
11101-13011	Head Sub-Assy, Cylinder	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11101-19045	Head Sub-Assy, Cylinder	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11115-13010	Gasket, Cylinder Head	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11115-13030	Gasket, Cylinder Head	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11115-13031	Gasket, Cylinder Head	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11115-13050	Gasket, Cylinder Head	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11122-24020	Bush, Intake Valve Guide	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11123-24020	Bush, Intake Valve Guide	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11126-24020	Bush, Intake Valve Guide	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11127-24020	Bush, Intake Valve Guide	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11131-24010	Seat, Intake Valve	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11132-24010	Seat, Intake Valve	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11135-13010	Seat, Exhaust Valve	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11136-13010	Seat, Exhaust Valve	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11181-13020	Plate, Cylinder Head, Rear	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11181-24020	Plate, Cylinder Head, Rear	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11182-13020	Gasket, Cylinder Head Rear Plate	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11182-24010	Gasket, Cylinder Head Rear Plate	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11191-22010	Tube, Spark Plug	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11201-13021	Cover Sub-Assy, Cylinder Head	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11201-19026	Cover Sub-Assy, Cylinder Head	Cylinder Head ([05.1982 - ] (8205- )4KJ)
11213-22010	Gasket, Cylinder Head Cover	Cylinder Head ([05.1982 - ] (8205- )4KJ)
12180-13010	Cap Sub-Assy, Oil Filler	Cylinder Head ([05.1982 - ] (8205- )4KJ)
12216-22010	Plate, Ventilation Baffle	Cylinder Head ([05.1982 - ] (8205- )4KJ)
12256-22010	Gasket, Ventilation Baffle	Cylinder Head ([05.1982 - ] (8205- )4KJ)
13715-24013	Valve, Exhaust	Cylinder Head ([05.1982 - ] (8205- )4KJ)
13715-24031	Valve, Exhaust	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90201-10005	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90210-09007	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90250-08120	Pin, Straight, No.1	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90341-15045	Plug, W/head Taper Screw, No.2	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90341-18063	Plug, W/head Taper Screw, No.1	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90430-15151	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90430-18152	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90430-31003	Gasket(For Spark Plug Tube)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90430-31141	Gasket(For Spark Plug Tube)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90520-12049	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90910-02020	Bolt(For Cylinder Head Set)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
90910-02069	Bolt(For Cylinder Head Set)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
91611-G0612	Bolt	Cylinder Head ([05.1982 - ] (8205- )4KJ)
94171-10800	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([05.1982 - ] (8205- )4KJ)
