Search › Model › KM11

KM11

Toyota LITEACE · 1978 · 2,589 parts · 123 categories

2,589 items

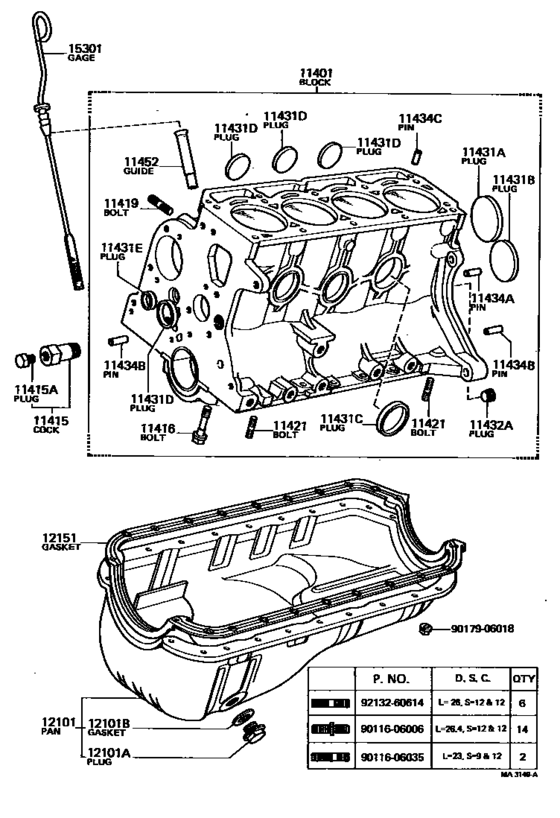

Cylinder Block ([02.1978 - 09.1979] (7802-7909)) 32

#	OEM	Part name
11401	11401-19035	Block Sub-Assy, Cylinder
11401	11401-19038	Block Sub-Assy, Cylinder
11415	90910-09057	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	96431-53850	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	96431-03850	Cock Sub-Assy, Water Drain(For Cylinder Block)
11415	96431-23814	Plug, Water Drain Cock(For Cylinder Block)
11416	90910-02019	Bolt(For Crankshaft Bearing Cap Set)
11419	90116-08288	Bolt, Stud(For Fuel Pump)
11421	90116-06006	Bolt, Stud(For Timing Gear Cover)
11421	90116-06012	Bolt, Stud(For Timing Gear Cover)
11421	92132-60614	Bolt, Stud(For Fuel Pipe)
11431	90331-47025	Plug, Tight, No.1(For Cylinder Block)
11431	96411-44500	Plug, Tight, No.4
11431	96411-43500	Plug, Tight, No.1
11431	96411-42500	Plug, Tight, No.1
11431	96412-01800	Plug, Tight, No.5(For Cylinder Block)
11432	90344-53011	Plug, W/head Taper Screw, No.1
11434	90250-08120	Pin, Straight, No.1
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11452	11452-24010	Guide, Oil Level Gage
12101	12101-19035	Pan Sub-Assy, Oil
12101	90430-12028	Gasket (For Drain Plug)
12101	12101-13030	Pan Sub-Assy, Oil
12101	12151-13010	Gasket, Oil Pan
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-18089	Plug(For Oil Pan Drain)
12101	90033-41020	Plug(For Oil Pan Drain)
12101	90430-18244	Gasket(For Oil Pan Drain Plug)
12101	90430-18023	Gasket(For Oil Pan)
15301	15301-24010	Gage Sub-Assy, Oil Level
9011606035	90116-06035	Bolt, Stud(For Timing Gear Cover)
9017906018	90179-06018	New Genuine Part

OEM	Part name	Category
11401-19035	Block Sub-Assy, Cylinder	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
11401-19038	Block Sub-Assy, Cylinder	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
11452-24010	Guide, Oil Level Gage	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
12101-13030	Pan Sub-Assy, Oil	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
12101-19035	Pan Sub-Assy, Oil	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
12151-13010	Gasket, Oil Pan	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
15301-24010	Gage Sub-Assy, Oil Level	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90033-41020	Plug(For Oil Pan Drain)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90116-06006	Bolt, Stud(For Timing Gear Cover)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90116-06012	Bolt, Stud(For Timing Gear Cover)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90116-06035	Bolt, Stud(For Timing Gear Cover)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90116-08288	Bolt, Stud(For Fuel Pump)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90179-06018	New Genuine Part	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90250-08120	Pin, Straight, No.1	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90331-47025	Plug, Tight, No.1(For Cylinder Block)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90341-18089	Plug(For Oil Pan Drain)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90344-53011	Plug, W/head Taper Screw, No.1	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90430-12028	Gasket (For Drain Plug)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90430-18023	Gasket(For Oil Pan)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90430-18244	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90910-02019	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
90910-09057	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
92132-60614	Bolt, Stud(For Fuel Pipe)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
96411-42500	Plug, Tight, No.1	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
96411-43500	Plug, Tight, No.1	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
96411-44500	Plug, Tight, No.4	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
96412-01800	Plug, Tight, No.5(For Cylinder Block)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
96431-03850	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
96431-23814	Plug, Water Drain Cock(For Cylinder Block)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
96431-53850	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([02.1978 - 09.1979] (7802-7909))
