KM10

Toyota LITEACE · 1971 · 3,775 parts · 146 categories

3,775 items

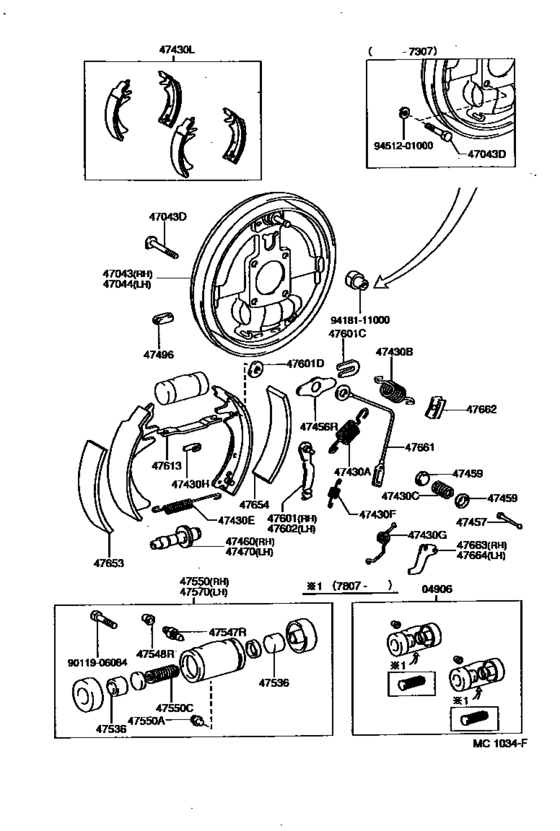

Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909)) 49

#	OEM	Part name
4906	04906-20011	Cup Kit, Rear Wheel Cylinder
47043	47043-21013	Plate Sub-Assy, Brake Backing, Rear Rh
47043	42184-22011	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	91112-71025	Bolt(For Strut Bar Setting)
47044	47044-21013	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90506-26102	Spring, Tension(For Front Brake Shoe Return)
47430	90501-20225	Spring(For Rear Brake Shoe Hold Down)
47430	90506-16181	Spring, Tension(For Front Brake Shoe Return)
47430	90506-18180	Spring, Tension (For Front Brake Adjust Cable)
47430	90508-20120	Spring, Torsion (For Front Brake Automatic Adjust Lever)
47430	90508-20121	Spring, Torsion (For Front Brake Automatic Adjust Lever)
47430	90504-16004	Spring, Compression(For Parking Brake Shoe Strut)
47430	04494-20020	Shoe Kit, Rear Brake
47430	04494-20022	Shoe Kit, Front Brake
47456	47456-20010	Plate, Rear Brake Shoe Guide
47457	47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)
47459	47449-20010	Cup, Shoe Hold Down Spring(For Front Brake)
47459	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47459	47449-20011	Cup, Brake Shoe Hold Down
47460	47405-20011	Adjuster Assy, Shoe, Rh(For Front Brake)
47470	47406-20011	Adjuster Assy, Shoe, Lh(For Front Brake)
47496	47491-20011	Plug, Hole(For Rear Brake)
47536	47051-20020	Piston, Wheel Brake Cylinder(For Rear Brake)
47536	47051-20021	Piston, Wheel Brake Cylinder(For Rear Brake)
47536	47051-21010	Piston, Wheel Brake Cylinder(For Rear Brake)
47536	47051-21011	Piston, Wheel Brake Cylinder(For Rear Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47550	47550-29035	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-20031	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-29055	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-21011	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	90410-03015	Seat, Union(For Clutch Master Cylinder) - UNION(FOR CLUTCH RELEASE CYLINDER)
47550	90501-09227	Spring, Compression(For Rear Wheel Brake Cylinder)
47601	47601-20010	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90213-07010	Washer, Type C(For Parking Brake Shoe)
47601	90206-10059	Washer, Wave(For Rear Brake)
47602	47602-20010	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47613	47613-20010	Strut, Parking Brake Shoe (For Rear Brake)
47653	47651-20020	Lining, Rear Brake Shoe(For Front Or Upper)
47653	47651-20050	Lining, Rear Brake Shoe(For Front Or Upper)
47654	47655-20021	Lining, Rear Brake Shoe(For Rear Or Lower)
47654	47655-20022	Lining, Rear Brake Shoe(For Rear Or Lower)
47661	47641-20011	Cable, Automatic Adjust(For Front Brake)
47662	47642-20010	Guide, Rear Brake Automatic Adjust Cable
47663	47643-20011	Lever, Rear Brake Automatic Adjust, Rh
9011906084	90119-06084	Bolt(For Rear Wheel Cylinder)
9418111000	94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
04494-20020	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
04494-20022	Shoe Kit, Front Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
04906-20011	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
42184-22011	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47043-21013	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47044-21013	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47051-20020	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47051-20021	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47051-21010	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47051-21011	Piston, Wheel Brake Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47405-20011	Adjuster Assy, Shoe, Rh(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47406-20011	Adjuster Assy, Shoe, Lh(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47449-20010	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47449-20011	Cup, Brake Shoe Hold Down	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47456-20010	Plate, Rear Brake Shoe Guide	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47491-20011	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47550-20031	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47550-21011	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47550-29035	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47550-29055	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47601-20010	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47602-20010	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47613-20010	Strut, Parking Brake Shoe (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47641-20011	Cable, Automatic Adjust(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47642-20010	Guide, Rear Brake Automatic Adjust Cable	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47643-20011	Lever, Rear Brake Automatic Adjust, Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47651-20020	Lining, Rear Brake Shoe(For Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47651-20050	Lining, Rear Brake Shoe(For Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47655-20021	Lining, Rear Brake Shoe(For Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
47655-20022	Lining, Rear Brake Shoe(For Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90119-06084	Bolt(For Rear Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90206-10059	Washer, Wave(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90213-07010	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90410-03015	Seat, Union(For Clutch Master Cylinder) - UNION(FOR CLUTCH RELEASE CYLINDER)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90501-09227	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90501-20225	Spring(For Rear Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90504-16004	Spring, Compression(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90506-16181	Spring, Tension(For Front Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90506-18180	Spring, Tension (For Front Brake Adjust Cable)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90506-26102	Spring, Tension(For Front Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90508-20120	Spring, Torsion (For Front Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
90508-20121	Spring, Torsion (For Front Brake Automatic Adjust Lever)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
91112-71025	Bolt(For Strut Bar Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
94181-11000	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1971 - 09.1979] (7105-7909))
