KM10

Toyota LITEACE · 1971 · 3,775 parts · 146 categories
KM10 ×

← Back to categories

3,775 items

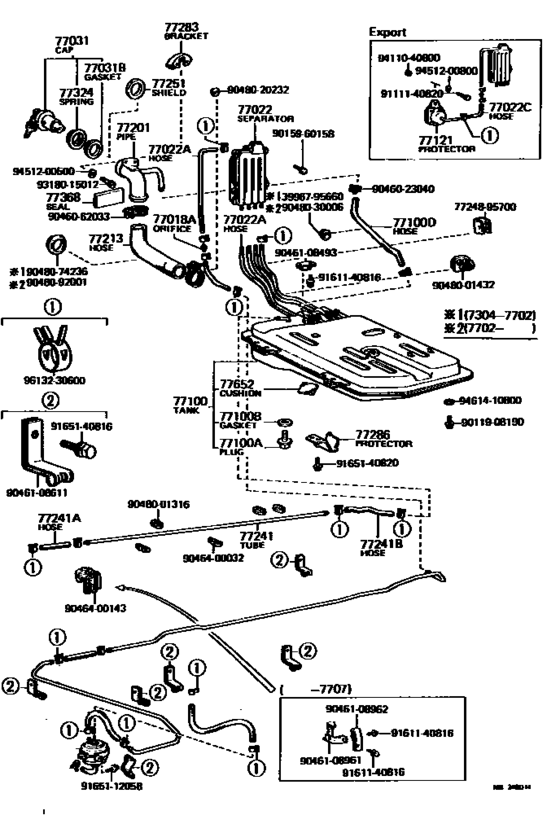

Fuel Tank & Tube ([04.1973 - 09.1979] (7304-7909)HRF,SRF) 92
#OEMPart name
77018 90917-10019 Orifice, Fuel Vapour
77022 77193-27010 Separator Sub-Assy, Fuel Evaporative
77022 95331-06048 Hose, Fuel, No.1(For Charcoal Canister) - FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022 95331-06070 Hose, Fuel - FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77022 95333-06100 Hose (L=1000)
77022 95331-06028 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.2 (FOR BREATHER TUBE)
77022 95333-06030 Hose, Fuel
77031 77031-26023 Cylinder & Key Set, Fuel Inlet Lock - FUEL TANK
77031 69058-60071 Cylinder & Key Set, Fuel Filler Lid
77031 77031-27011 Cap Assy, Fuel Tank
77031 77031-26022 Cap Assy, Fuel Tank
77031 77031-95700 Cap Assy, Fuel Tank
77031 77316-12030 Gasket (For Fuel Tank Cap)
77031 77316-12031 Gasket, Fuel Filler Lid Cylinder
77031 77316-40011 Gasket (For Fuel Tank Cap)
77031 77316-12020 Gasket (For Fuel Tank Cap)
77100 77001-27011 Tank Assy, Fuel
77100 77001-27012 Tank Assy, Fuel
77100 83320-29096 Gage Assy, Fuel Sender
77100 77001-27013 Tank Assy, Fuel
77100 77001-27020 Tank Assy, Fuel
77100 90105-12018 Plug(For Fuel Tank)
77100 90430-12038 Gasket(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90445-24016 Hose, Fuel, No.1(For Fuel Tank)
77100 90447-21024 Hose, Fuel, No.1(For Fuel Tank)
77121 77258-27010 Protector, Fuel Tube
77201 77201-27031 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-27032 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-27040 Pipe Sub-Assy, Fuel Tank Inlet
77213 77213-27010 Hose, Fuel Tank Sub Inlet
77213 77217-27031 Hose, Fuel Tank Sub Inlet
77213 77217-27032 Hose, Fuel Tank Sub Inlet
77241 77251-27020 Tube, Fuel Main, No.1
77241 77251-27021 Tube, Fuel Main, No.1
77241 90445-12570 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 90445-12668 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 95311-07010 Hose, Fuel, No.2(For Fuel Expansion Tank) - FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241 95331-06010 Hose, Fuel, No.2 (For Main Tube, No.1) - FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77241 95333-06010 Hose, Fuel
77241 95331-08010 Hose, Fuel, No.2(For Fuel Expansion Tank) - FUEL, NO.1(FOR FUEL EXPANSION TANK)
77241 95333-08010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 90445-12482 Hose(For Vacuum Switching Valve) - FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77241 95311-07032 Hose, Fuel, No.3 (For Vapour Storage Case) - FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77241 95331-06032 Hose, Fuel(For Fuel Evaporative Separator) - CARBURETOR FUEL, NO.1
77241 95333-06040 Hose
77241 95331-08032 Hose, Fuel - FUEL, NO.1 (FOR MAIN TUBE, NO.3)
77241 95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)
77251 77251-10010 Shield, Fuel Tank, Inlet, No.1
77283 77201-95661 Bracket, Fuel Tube
77286 77286-27020 Protector, Fuel Tank Inlet Pipe
77324 77324-12010 Spring, Fuel Tank Cap
77324 77324-12011 Spring, Fuel Tank Cap
77368 61646-95700 Seal, Inlet Box
77652 77652-27010 Cushion, Fuel Tank, No.1
3996795660 39967-95660 New Genuine Part
7724895700 77248-95700 Tube, Protector (for Storage To Air Filter Tube)
9011908190 90119-08190 BOLT
9015960158 90159-60158 New Genuine Part
9046023040 90460-23040 Clamp Or Clip, Hose(For Water By-Pass Pipe)
9046023040 90460-23022 Clamp (For Vacuum Check Valve) - HOSE(FOR WATER BY-PASS HOSE)
9046062033 90460-62033 Clamp(For Air Cleaner Hose, No.1)
9046062033 96111-10620 Clamp, Hose(For Air Connector)
9046108493 90461-08493 New Genuine Part
9046108611 90461-08611 New Genuine Part
9046108961 90461-08961 New Genuine Part
9046108962 90461-08962 New Genuine Part
9046400032 90464-00032 New Genuine Part
9046400143 90464-00143 New Genuine Part
9048001316 90480-01316 New Genuine Part
9048001432 90480-01432 New Genuine Part
9048001432 90480-01074 New Genuine Part
9048020232 90480-20232 New Genuine Part
9048030006 90480-30006 New Genuine Part
9048074236 90480-74236 New Genuine Part
9048092001 90480-92001 Grommet
9111140820 91111-40820 New Genuine Part
9111140820 91111-50820 New Genuine Part
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
9165112058 91651-12058 New Genuine Part
9165140816 91651-40816 BOLT
9165140820 91651-40820 Bolt
9318015012 93180-15012 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451200500 94512-00500 New Genuine Part
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461410800 94614-10800 Spacer (For Control Select Lever Support)
9461410800 94613-10800 Spacer (For Control Select Lever Support)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
