KM10

Toyota LITEACE · 1971 · 3,775 parts · 146 categories

3,775 items

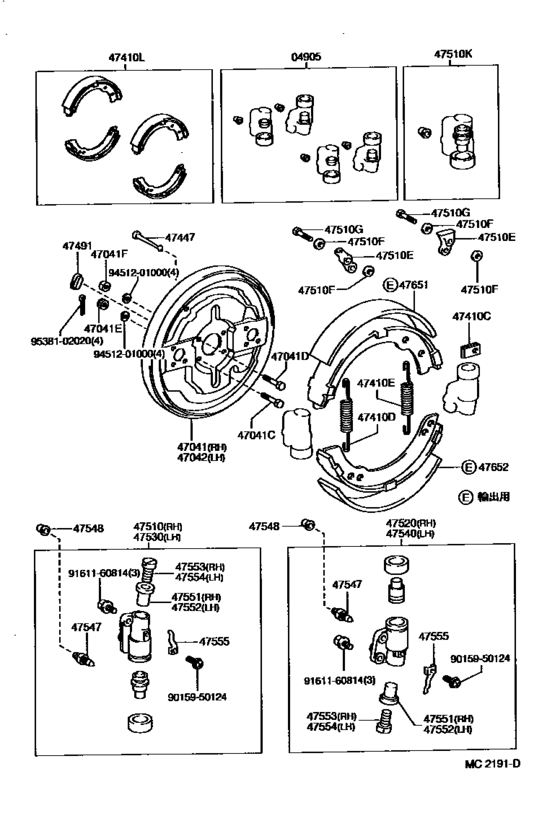

Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610)) 67

#	OEM	Part name
4905	04905-20040	Cup Kit, Front Wheel Cylinder
47041	47041-27011	Plate Sub-Assy, Brake Backing, Front Rh
47041	47041-27013	Plate Sub-Assy, Brake Backing, Front Rh
47041	90102-10016	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47041	90102-10019	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47041	90101-10148	Bolt(For Strut Bar Setting)
47041	90171-10024	Nut(For Backing Plate To Steering Knuckle Arm Setting)
47041	90170-10092	Nut(For Backing Plate To Steering Knuckle Setting)
47042	47042-27011	Plate Sub-Assy, Brake Backing, Front Lh
47042	47042-27013	Plate Sub-Assy, Brake Backing, Front Lh
47410	47446-10010	Spring(For Front Brake Shoe Hold Down)
47410	90501-20225	Spring(For Rear Brake Shoe Hold Down)
47410	90506-16138	Spring, Tension(For Front Brake Shoe Return)
47410	90506-23388	Spring, Tension(For Front Brake Shoe Return)
47410	90506-16181	Spring, Tension(For Front Brake Shoe Return)
47410	04494-20080	Shoe Kit, Front Brake
47410	04494-20081	Shoe Kit, Front Brake
47410	04494-20090	Shoe Kit, Front Brake
47410	04494-20092	Shoe Kit, Front Brake
47410	04494-20091	Shoe Kit, Front Brake
47447	47447-11010	Pin, Shoe Hold Down Spring(For Parking Brake)
47447	47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)
47491	47491-20011	Plug, Hole(For Rear Brake)
47491	47491-20020	Plug, Hole(For Front Brake)
47491	47491-30020	Plug, Hole(For Front Brake)
47510	47510-29075	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47510-29078	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47510-29076	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47510-29155	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47520-29085	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47530-29025	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47530-29055	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	90405-10139	Union(For Front Wheel Brake Cylinder)
47510	90405-10140	Union(For Front Wheel Brake Cylinder)
47510	90405-10149	Union(For Front Wheel Brake Cylinder)
47510	90430-10074	Gasket(For Oil Pressure Regulator)
47510	90401-10047	Bolt, Union(For Power Steering Gear)
47510	04473-20020	Cylinder Kit, Front Wheel
47510	04473-27010	Cylinder Kit, Front Wheel
47520	47520-29075	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530	47510-29025	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47510-29055	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-29075	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-29078	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-29076	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-29155	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47540-29085	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47540	47540-29075	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47547	47547-27020	Plug, Bleeder(For Front Drum Brake)
47548	31478-30010	Bleeder Plug Cap
47551	47551-20010	Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47552	47552-20010	Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47553	47553-20010	Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)
47554	47554-20010	Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)
47555	47555-20010	Spring, Adjuster Lock(For Front Brake)
47555	47555-20011	Spring, Adjuster Lock(For Front Brake)
47651	47651-20041	Lining, Front Brake Shoe(For Front Or Upper)
47651	47651-20100	Lining, Front Brake Shoe(For Front Or Upper)
47651	47651-20101	Lining, Front Brake Shoe(For Front Or Upper)
47652	47655-20052	Lining, Front Brake Shoe(For Rear Or Lower)
9015950124	90159-50124	New Genuine Part
9015950124	90159-50003	New Genuine Part
9161160814	91611-60814	Bolt
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9538102020	95381-02020	PIN

OEM	Part name	Category
04473-20020	Cylinder Kit, Front Wheel	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
04473-27010	Cylinder Kit, Front Wheel	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
04494-20080	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
04494-20081	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
04494-20090	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
04494-20091	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
04494-20092	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
04905-20040	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
31478-30010	Bleeder Plug Cap	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47041-27011	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47041-27013	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47042-27011	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47042-27013	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47446-10010	Spring(For Front Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47447-11010	Pin, Shoe Hold Down Spring(For Parking Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47491-20011	Plug, Hole(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47491-20020	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47491-30020	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47510-29025	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47510-29055	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47510-29075	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47510-29076	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47510-29078	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47510-29155	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47520-29075	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47520-29085	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47530-29025	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47530-29055	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47530-29075	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47530-29076	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47530-29078	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47530-29155	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47540-29075	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47540-29085	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47547-12010	Plug, Bleeder(For Release Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47547-27020	Plug, Bleeder(For Front Drum Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47551-20010	Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47552-20010	Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47553-20010	Bolt, Front Wheel Cylinder Adjusting, Rh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47554-20010	Bolt, Front Wheel Cylinder Adjusting, Lh(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47555-20010	Spring, Adjuster Lock(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47555-20011	Spring, Adjuster Lock(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47651-20041	Lining, Front Brake Shoe(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47651-20100	Lining, Front Brake Shoe(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47651-20101	Lining, Front Brake Shoe(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
47655-20052	Lining, Front Brake Shoe(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90101-10148	Bolt(For Strut Bar Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90102-10016	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90102-10019	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90159-50003	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90159-50124	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90170-10092	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90171-10024	Nut(For Backing Plate To Steering Knuckle Arm Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90401-10047	Bolt, Union(For Power Steering Gear)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90405-10139	Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90405-10140	Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90405-10149	Union(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90430-10074	Gasket(For Oil Pressure Regulator)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90501-20225	Spring(For Rear Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90506-16138	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90506-16181	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
90506-23388	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
91611-60814	Bolt	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
95381-02020	PIN	Front Drum Brake Wheel Cylinder & Backing Plate ([10.1971 - 10.1976] (7110-7610))
