Search › Model › KM10

KM10

Toyota LITEACE · 1971 · 3,775 parts · 146 categories

3,775 items

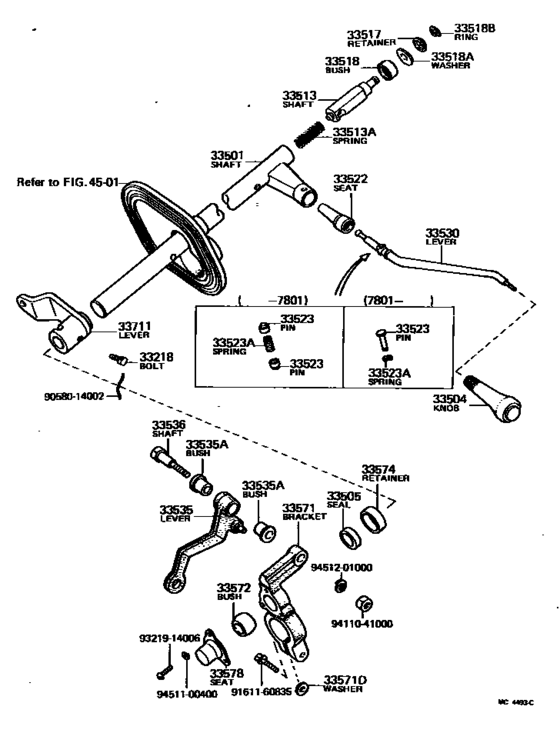

Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909)) 43

#	OEM	Part name
33218	33218-35010	Bolt, Shift Lever Lock
33501	33501-27020	Shaft Sub-Assy, Control (For Column Shift)
33501	33501-27030	Shaft Sub-Assy, Control (For Column Shift)
33501	33501-27031	Shaft Sub-Assy, Control (For Column Shift)
33501	33501-29147	Shaft Sub-Assy, Control (For Column Shift)
33501	33501-27011	Shaft Sub-Assy, Control (For Column Shift)
33504	33504-30070	Knob Sub-Assy, Shift Lever (For Column Shift)
33504	33504-30110	Knob Sub-Assy, Shift Lever (For Column Shift)
33504	33542-30011	Knob Sub-Assy, Shift Lever (For Column Shift)
33505	90303-17004	Seal Sub-Assy, Control Shaft Dust (For Column Shift)
33513	33513-26011	Shaft, Control Shaft Bracket, Upper
33513	33513-28010	Shaft, Control Shaft Bracket, Upper
33513	90501-14395	Spring, Compression (For Bracket Upper Shaft)
33517	33517-30010	Retainer, Control Shaft Upper Spring
33518	33518-27010	Bush, Upper Control Shaft Piece
33518	33518-30010	Bush, Upper Control Shaft Piece
33518	33515-30010	Seat, Control Shaft Upper
33518	90201-08056	Washer, Plate (For Upper Control Shaft Piece Bush)
33518	90523-06019	Ring, E (For Upper Control Shaft Piece Bush)
33522	33522-30020	Seat, Shift Lever Plate (For Column Shift)
33522	33522-35010	Seat, Shift Lever Plate (For Column Shift)
33523	33523-30010	Pin, Shift Lever (For Column Shift)
33523	33523-35010	Pin, Shift Lever (For Column Shift)
33523	90501-04062	Spring, Compression
33530	33541-28010	Lever Assy, Shift (For Column Shift)
33530	33541-29055	Lever Assy, Shift (For Column Shift)
33535	33535-27010	Lever, Control Select (For Column Shift)
33535	90386-13007	Bush(For Clutch Pedal)
33536	33536-25010	Shaft, Control Select Lever (For Column Shift)
33571	33571-26011	Bracket, Control Shaft, Lower (For Column Shift)
33571	33571-27010	Bracket, Control Shaft, Lower (For Column Shift)
33571	90201-08135	Washer, Plate (For Control Shaft Lower Bracket)
33572	33572-36010	Bush, Control Shaft Lower (For Column Shift)
33574	33574-35010	Retainer, Dust Seal (For Column Shift Control Shaft)
33578	33579-27010	Seat, Control Shaft Lower Bush, No.1
33578	33579-35010	Seat, Control Shaft Lower Bush, No.1
33711	33527-27010	Lever, Control Shaft (For Column Shift)
9058014002	90580-14002	Wire(For Shift Lever Lock Bolt)
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9321914006	93219-14006	New Genuine Part
9411041000	94110-41000	Nut(For Steering Damper)
9451100400	94511-00400	WASHERSPRING
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
33218-35010	Bolt, Shift Lever Lock	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33501-27011	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33501-27020	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33501-27030	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33501-27031	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33501-29147	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33504-30070	Knob Sub-Assy, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33504-30110	Knob Sub-Assy, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33513-26011	Shaft, Control Shaft Bracket, Upper	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33513-28010	Shaft, Control Shaft Bracket, Upper	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33515-30010	Seat, Control Shaft Upper	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33517-30010	Retainer, Control Shaft Upper Spring	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33518-27010	Bush, Upper Control Shaft Piece	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33518-30010	Bush, Upper Control Shaft Piece	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33522-30020	Seat, Shift Lever Plate (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33522-35010	Seat, Shift Lever Plate (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33523-30010	Pin, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33523-35010	Pin, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33527-27010	Lever, Control Shaft (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33535-27010	Lever, Control Select (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33536-25010	Shaft, Control Select Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33541-28010	Lever Assy, Shift (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33541-29055	Lever Assy, Shift (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33542-30011	Knob Sub-Assy, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33571-26011	Bracket, Control Shaft, Lower (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33571-27010	Bracket, Control Shaft, Lower (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33572-36010	Bush, Control Shaft Lower (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33574-35010	Retainer, Dust Seal (For Column Shift Control Shaft)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33579-27010	Seat, Control Shaft Lower Bush, No.1	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
33579-35010	Seat, Control Shaft Lower Bush, No.1	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
90201-08056	Washer, Plate (For Upper Control Shaft Piece Bush)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
90201-08135	Washer, Plate (For Control Shaft Lower Bracket)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
90303-17004	Seal Sub-Assy, Control Shaft Dust (For Column Shift)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
90386-13007	Bush(For Clutch Pedal)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
90501-04062	Spring, Compression	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
90501-14395	Spring, Compression (For Bracket Upper Shaft)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
90523-06019	Ring, E (For Upper Control Shaft Piece Bush)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
90580-14002	Wire(For Shift Lever Lock Bolt)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
93219-14006	New Genuine Part	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
94110-41000	Nut(For Steering Damper)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
94511-00400	WASHERSPRING	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Control Shaft & Crossshaft ([10.1976 - 09.1979] (7610-7909))
