KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories

← Back to categories

5,287 items

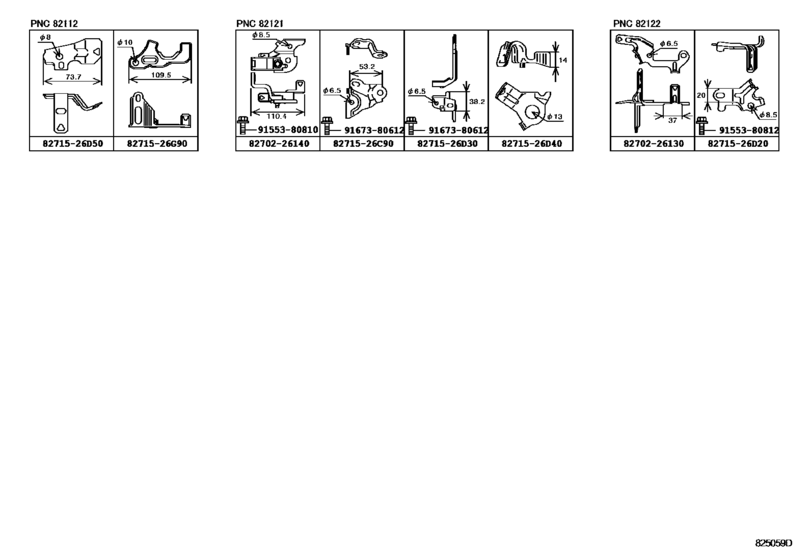

Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- )) 11

#	OEM	Part name
8271526	82715-26C90	Bracket,wiring Harness Clamp
8271526	82715-26D20	Bracket,wiring Harness Clamp
8271526	82715-26D30	Bracket,wiring Harness Clamp
8271526	82715-26D40	Bracket,wiring Harness Clamp
8271526	82715-26D50	Bracket,wiring Harness Clamp
8271526	82715-26G90	Bracket,wiring Harness Clamp
8270226130	82702-26130	Bracket Sub-assy, Wiring Harness
8270226140	82702-26140	Bracket Sub-assy, Wiring Harness
9155380810	91553-80810	New Genuine Part
9155380812	91553-80812	New Genuine Part
9167380612	91673-80612	BOLT FLANGE

OEM	Part name	Category
82702-26130	Bracket Sub-assy, Wiring Harness	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
82702-26140	Bracket Sub-assy, Wiring Harness	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
82715-26C90	Bracket,wiring Harness Clamp	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
82715-26D20	Bracket,wiring Harness Clamp	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
82715-26D30	Bracket,wiring Harness Clamp	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
82715-26D40	Bracket,wiring Harness Clamp	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
82715-26D50	Bracket,wiring Harness Clamp	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
82715-26G90	Bracket,wiring Harness Clamp	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
91553-80810	New Genuine Part	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
91553-80812	New Genuine Part	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
91673-80612	BOLT FLANGE	Wiring & Clamp ([08.2006 - ] CLAMP & BRACKET (0608- ))
