Search › Model › KLH28
KLH28

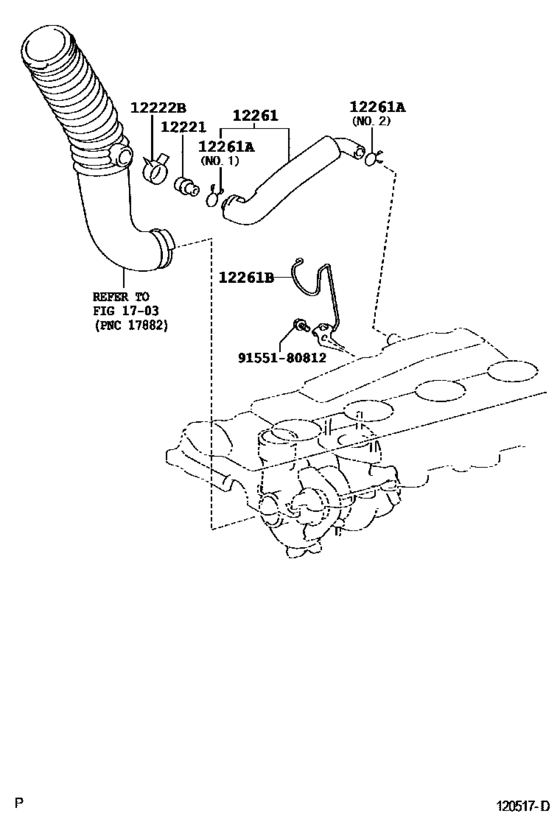

Ventilation Hose ([08.2006 - ] (0608- )) 8
| # | OEM | Part name |
|---|---|---|
| 12221 | 17878-30010 | Pipe, Intake Air Connector, No.3 |
| 12222 | 90466-30001 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 12261-30010 | Hose, Ventilation |
| 12261 | 12261-30080 | Hose, Ventilation |
| 12261 | 90467-22010 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-23002 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 16581-30180 | Clamp(For Ventilation Hose) |
| 9155180812 | 91551-80812 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 12261-30010 | Hose, Ventilation | Ventilation Hose ([08.2006 - ] (0608- )) |
| 12261-30080 | Hose, Ventilation | Ventilation Hose ([08.2006 - ] (0608- )) |
| 16581-30180 | Clamp(For Ventilation Hose) | Ventilation Hose ([08.2006 - ] (0608- )) |
| 17878-30010 | Pipe, Intake Air Connector, No.3 | Ventilation Hose ([08.2006 - ] (0608- )) |
| 90466-30001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2006 - ] (0608- )) |
| 90467-22010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2006 - ] (0608- )) |
| 90467-23002 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2006 - ] (0608- )) |
| 91551-80812 | BOLT FLANGE | Ventilation Hose ([08.2006 - ] (0608- )) |
