Search › Model › KLH28

KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories

5,287 items

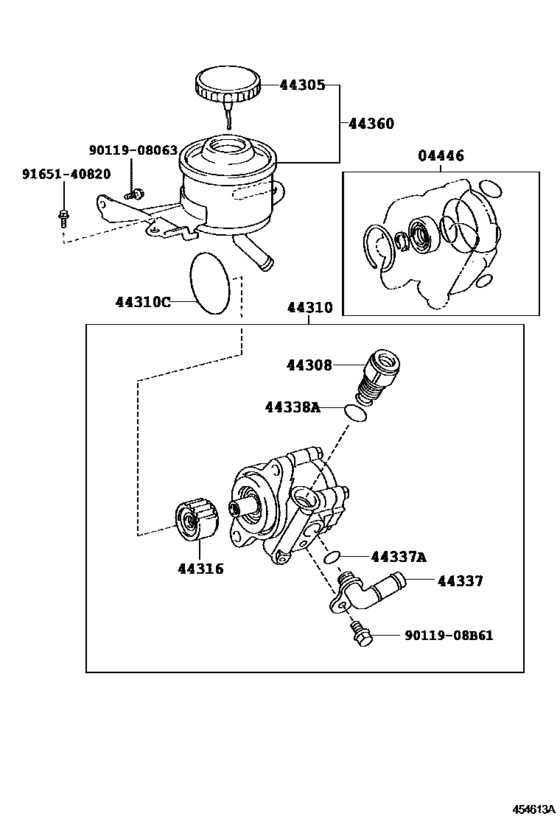

Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- )) 21

#	OEM	Part name
4446	04446-26050	Gasket Kit, Power Steering Pump
4446	04446-35070	Gasket Kit, Power Steering Pump
44305	44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22060	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-26080	Union Sub-Assy, Pressure Port
44308	44308-26120	Union Sub-Assy, Pressure Port
44310	44310-26200	Pump Assy, Vane
44310	44310-26390	Pump Assy, Vane
44310	90301-60002	Ring, O(For Vane Pump)
44316	44316-60030	Gear, Vane Pump
44337	44337-12130	Union, Power Steering Suction Port
44337	44337-26060	Union, Power Steering Suction Port
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44337	90301-11020	Ring, O, No.1(For Vane Pump Housing)
44338	90301-18009	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44360	44360-26130	Reservoir Assy, Vane Pump Oil
9011908	90119-08B61	New Genuine Part
9011908063	90119-08063	BOLT
9165140820	91651-40820	Bolt

OEM	Part name	Category
04446-26050	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
04446-35070	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44305-22060	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44308-26080	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44308-26120	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44310-26200	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44310-26390	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44316-60030	Gear, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44337-12130	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44337-26060	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
44360-26130	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
90119-08063	BOLT	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
90119-08B61	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
90301-11020	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
90301-18009	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
90301-60002	Ring, O(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
91651-40820	Bolt	Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- ))
