KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories
KLH28 ×

← Back to categories

5,287 items

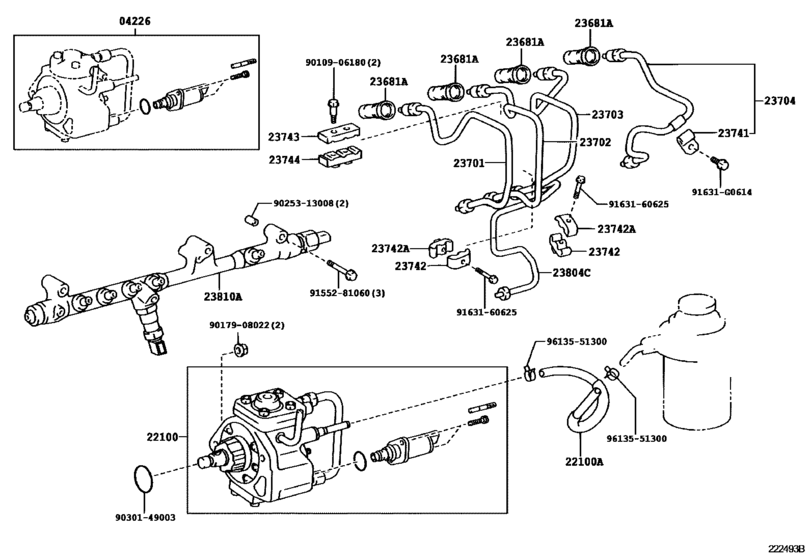

Injection Pump Assembly ([08.2001 - 08.2006] (0108-0608)2KDFTV) 40
#OEMPart name
4226 04226-30010 Valve Kit, Suction Control
4226 04226-30020 Valve Kit, Suction Control
22100 22100-30020 Pump Assy, Injection Or Supply
22100 22100-30021 Pump Assy, Injection Or Supply
22100 22100-30040 Pump Assy, Injection Or Supply
22100 22100-30090 Pump Assy, Injection Or Supply
22100 23271-30070 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 23271-30071 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 23271-30170 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
23681 23681-30010 Seal, Nozzle Holder
23701 23701-30010 Pipe Sub-Assy, Injection, No.1
23701 23701-30060 Pipe Sub-Assy, Injection, No.1
23702 23702-30010 Pipe Sub-Assy, Injection, No.2
23702 23702-30060 Pipe Sub-Assy, Injection, No.2
23703 23703-30010 Pipe Sub-Assy, Injection, No.3
23703 23703-30060 Pipe Sub-Assy, Injection, No.3
23704 23704-39015 Pipe Sub-Assy, Injection, No.4
23704 23704-39055 Pipe Sub-Assy, Injection, No.4
23741 23741-30010 Clamp, Injection Pipe, No.1
23742 23742-27010 Clamp, Injection Pipe, No.2
23742 23742-58020 Clamp, Injection Pipe, No.2
23743 23743-30010 Clamp, Injection Pipe, No.3
23743 23743-30011 Clamp, Injection Pipe, No.3
23744 23743-30020 Clamp, Injection Pipe, No.4
23744 23743-30021 Clamp, Injection Pipe, No.4
23804 23804-30020 Pipe Sub-Assy, Fuel Inlet
23804 23804-30060 Pipe Sub-Assy, Fuel Inlet
23810 23810-0L010 Rail Assy, Common
23810 23810-0L011 Rail Assy, Common
23810 23810-0L020 Rail Assy, Common
23810 23810-30070 Rail Assy, Common
23810 23810-30071 Rail Assy, Common
91631 91631-G0614 BOT WWASHER
9010906180 90109-06180 New Genuine Part
9017908022 90179-08022 NUT
9025313008 90253-13008 Pin, Ring(For Crankshaft Bearing Cap Set)
9030149003 90301-49003 Gasket, Injection Pump
9155281060 91552-81060 Bolt, No.3(For Alternator)
9163160625 91631-60625 BOLT WWASHER
9613551300 96135-51300 Clamp, Hose
