KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories

← Back to categories

5,287 items

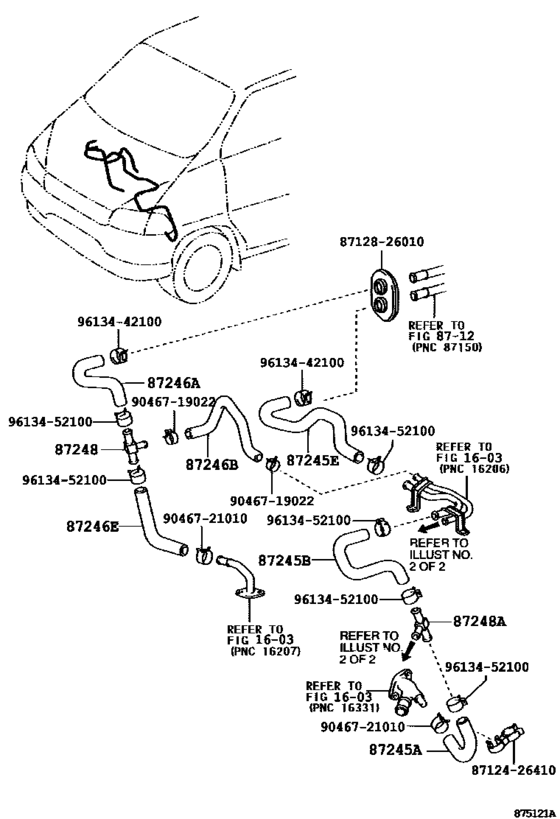

Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD) 14

#	OEM	Part name
87245	87245-26E20	Hose, Heater Water, Inlet A
87245	87245-2F660	Hose, Heater Water, Inlet A
87245	87245-26E30	Hose, Heater Water, Inlet B
87245	87245-2F670	Hose, Heater Water, Inlet E
87245	87245-2F800	Hose, Heater Water, Inlet E
87246	87245-26E50	Hose, Heater Water, Outlet A
87246	87245-2F680	Hose, Heater Water, Outlet E
87246	87245-2F810	Hose, Heater Water, Outlet E
8712426410	87124-26410	Clamp, Heater
8712826010	87128-26010	Grommet, Heater
9046719022	90467-19022	Clip(For Ventilation Hose No.2)
9046721010	90467-21010	Clip(For Ventilation Hose No.2)
9613442100	96134-42100	Clip(For Water By-Pass Hose Assy)
9613452100	96134-52100	Clip(For Ventilation Hose)

OEM	Part name	Category
87124-26410	Clamp, Heater	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87128-26010	Grommet, Heater	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87245-26E20	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87245-26E30	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87245-26E50	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87245-2F660	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87245-2F670	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87245-2F680	Hose, Heater Water, Outlet E	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87245-2F800	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
87245-2F810	Hose, Heater Water, Outlet E	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
90467-19022	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
90467-21010	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
96134-42100	Clip(For Water By-Pass Hose Assy)	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
96134-52100	Clip(For Ventilation Hose)	Heating & Air Conditioning - Water Piping ([08.2001 - 08.2006] FRONT,W(REAR HEATER) (0108-0608)KLH1#,2#..LHD)
