Search › Model › KLH28

KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories

5,287 items

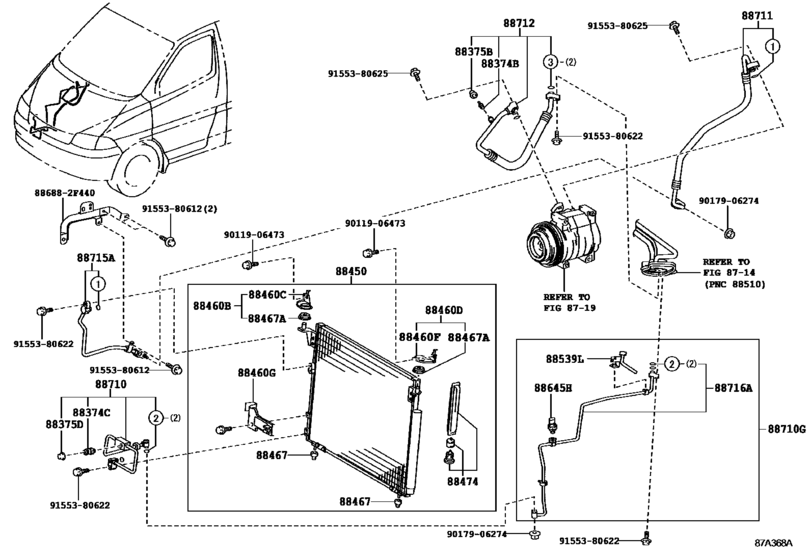

Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD) 38

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88374	88374-33070	Valve, Service, No.1 - SERVICE, NO.2
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88450	88450-26140	Condenser Assy, W/receiver
88460	88688-26470	Bracket, Cooler Condenser, No.1
88460	88688-2F470	Bracket, Cooler Condenser, No.1
88460	88688-26480	Bracket, Cooler Condenser, No.2
88460	88688-2F500	Bracket, Cooler Condenser, No.2
88460	88688-26490	Bracket, Cooler Condenser, No.3
88460	88688-2F480	Bracket, Cooler Condenser, No.3
88460	88688-2F490	Bracket, Cooler Condenser, No.4
88460	88688-2F510	Bracket, Cooler Condenser, No.5
88467	88467-28040	Cushion, Cooler Condenser, No.1
88467	88467-95704	Cushion, Cooler Condenser, No.1
88467	88467-33030	Cushion, Cooler Condenser, No.1
88474	88474-17010	Dryer, Cooler
88539	88539-26320	Hose, Drain Cooler
88539	88539-26670	Hose, Drain Cooler
88645	88645-34010	Switch, Pressure
88645	88645-04040	Switch, Pressure
88710	88710-2F500	Tube Assy, Air Conditioner - AIRCONDITIONER
88710	88710-2N180	Tube Assy, Air Conditioner - AIRCONDITIONER
88710	88710-2N190	Tube & Accessory Assy, Air Conditioner, No.2 - AIRCONDITIONER, NO.2
88711	88711-2F110	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-2F290	Hose, Cooler Refrigerant Discharge, No.1
88711	88711-2F300	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-2F090	Hose, Cooler Refrigerant Suction, No.1
88712	88712-2F320	Hose, Cooler Refrigerant Suction, No.1
88715	88715-26480	Pipe, Cooler Refrigerant Discharge, A
88716	88716-26700	Pipe, Cooler Refrigerant Liquid, A
88716	88716-2N260	Pipe, Cooler Refrigerant Liquid, A
886882	88688-2F440	Bracket, Cooler Diaphragm
9011906473	90119-06473	BOLTWWASHER
9017906274	90179-06274	Nut
9155380612	91553-80612	BOLT FLANGE
9155380622	91553-80622	BOLT FLANGE
9155380625	91553-80625	New Genuine Part

OEM	Part name	Category
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88374-33070	Valve, Service, No.1 - SERVICE, NO.2	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88450-26140	Condenser Assy, W/receiver	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88467-28040	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88467-33030	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88467-95704	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88474-17010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88539-26320	Hose, Drain Cooler	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88539-26670	Hose, Drain Cooler	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88645-04040	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88645-34010	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-26470	Bracket, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-26480	Bracket, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-26490	Bracket, Cooler Condenser, No.3	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-2F440	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-2F470	Bracket, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-2F480	Bracket, Cooler Condenser, No.3	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-2F490	Bracket, Cooler Condenser, No.4	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-2F500	Bracket, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88688-2F510	Bracket, Cooler Condenser, No.5	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88710-2F500	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88710-2N180	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88710-2N190	Tube & Accessory Assy, Air Conditioner, No.2 - AIRCONDITIONER, NO.2	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88711-2F110	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88711-2F290	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88711-2F300	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88712-2F090	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88712-2F320	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88715-26480	Pipe, Cooler Refrigerant Discharge, A	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88716-26700	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
88716-2N260	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
90119-06473	BOLTWWASHER	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
91553-80612	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
91553-80622	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)
91553-80625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([08.2008 - ] (0808- )LHD)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 278
Collected: 2026-08-03
