KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories
KLH28 ×

← Back to categories

5,287 items

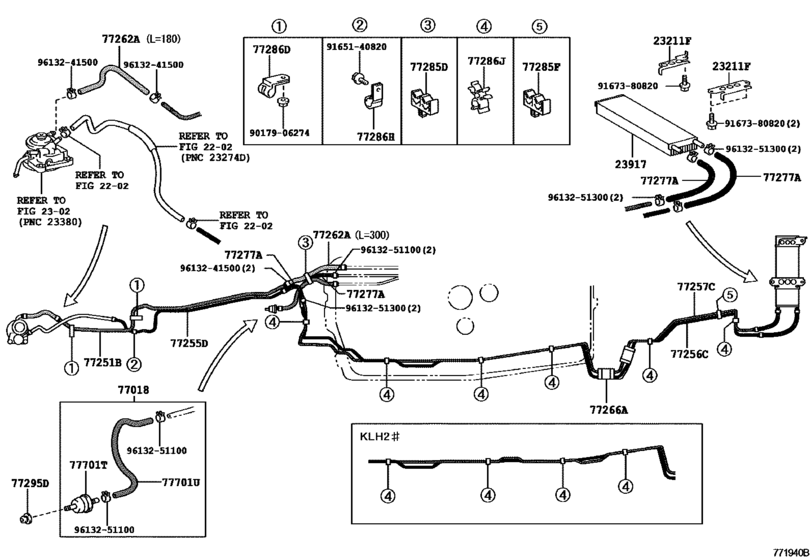

Fuel Tank & Tube ([08.2006 - ] FUEL TUBE (0608- )) 40
#OEMPart name
23211 23211-30040 Bracket
23917 23917-30060 Cooler, Fuel
23917 23917-30061 Cooler, Fuel
77018 77018-26200 Valve Sub-Assy, Fuel Vapour Separate
77018 77018-26240 Valve Sub-Assy, Fuel Vapour Separate
77251 77251-2F010 Tube, Fuel Main
77255 77255-26600 Tube, Fuel Return
77255 77255-26720 Tube, Fuel Return
77256 77256-26220 Tube, Fuel Return, No.2
77257 77257-26080 Tube, Fuel Return, No.3
77262 77259-26140 Hose, Fuel, No.1 (For Main Tube, No.1) - FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77262 77259-26150 Hose, Fuel, No.1(For Fuel Tank To Canister Center Tube)
77266 77266-26080 Protector, Fuel Tube, No.1
77277 23273-30040 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23273-30041 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23273-30060 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23273-30061 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23274-30010 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23274-30011 Hose, Fuel, No.1(For Return Tube, No.1)
77277 77259-26160 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95333-08020 Hose, Lpg Injector
77277 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277 95337-08015 Hose, Fuel, No.2 (For Return Tube, No.2) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277 95337-08022 Hose, Fuel
77285 77285-26050 Clamp, Fuel Tube, No.1
77285 77285-26060 Clamp, Fuel Tube, No.1
77285 77285-26100 Clamp, Fuel Tube, No.1
77285 77285-42100 Clamp, Fuel Tube, No.1
77286 90461-10750 Clamp, No.2(For Parking Brake Cable)
77286 90959-01510 Clamp, Fuel Tube, No.4
77295 77295-27010 Grommet, Fuel Tube
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
77701 77259-26170 Hose, Fuel (For Check Valve)
77701 95333-06040 Hose
9017906274 90179-06274 Nut
9165140820 91651-40820 Bolt
9167380820 91673-80820 Bolt (For Transmission Control Cable Bracket)
9613241500 96132-41500 Clip(For Ventilation Tube)
9613251100 96132-51100 Clip (For Hose)
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
