KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories

← Back to categories

5,287 items

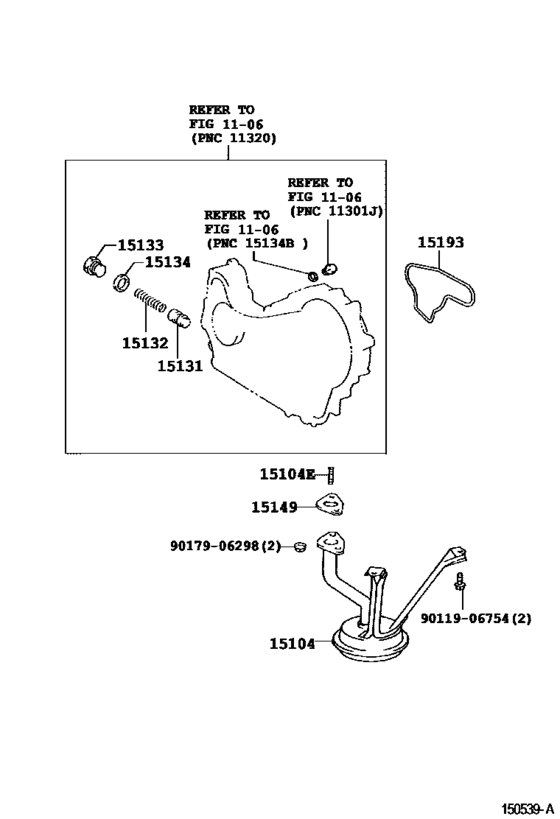

Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV) 10

#	OEM	Part name
15104	15104-67070	Strainer Sub-Assy, Oil
15104	90116-06140	Bolt, Stud(For Oil Strainer)
15131	15131-46040	Valve, Oil Pump Relief
15132	15132-17010	Spring, Oil Pump Relief Valve
15133	15133-17010	Plug, Oil Pump Relief Valve
15134	15134-67020	Gasket, Oil Pump Relief Valve
15149	15149-67010	Gasket, Oil Strainer Flange
15193	15193-67011	Gasket, Oil Pump
9011906754	90119-06754	BOLT WWASHER
9017906298	90179-06298	NUT

OEM	Part name	Category
15104-67070	Strainer Sub-Assy, Oil	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
15131-46040	Valve, Oil Pump Relief	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
15132-17010	Spring, Oil Pump Relief Valve	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
15133-17010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
15134-67020	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
15149-67010	Gasket, Oil Strainer Flange	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
15193-67011	Gasket, Oil Pump	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
90116-06140	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
90119-06754	BOLT WWASHER	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)
90179-06298	NUT	Engine Oil Pump ([08.2001 - ] (0108- )2KDFTV)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 278
