KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories

5,287 items

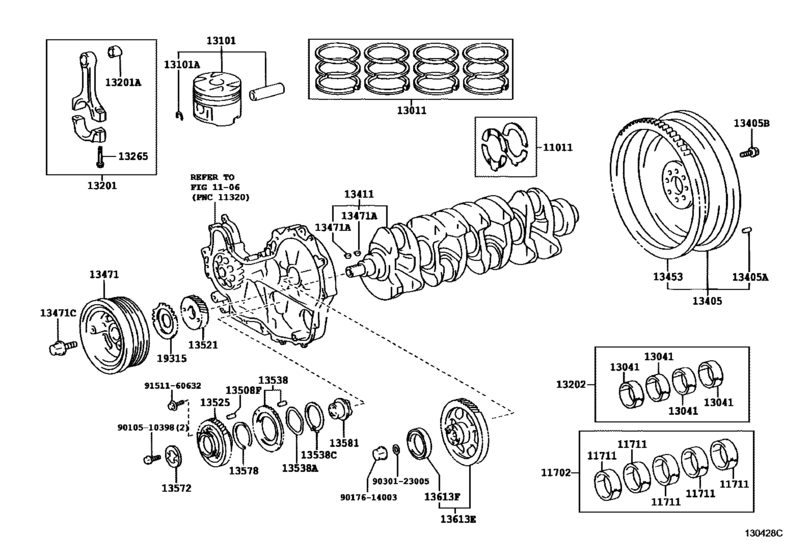

Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV) 114

#	OEM	Part name
11011	11011-30010	Washer Set, Crankshaft Thrust
11011	11011-67020	Washer Set, Crankshaft Thrust
11011	11012-30010	Washer Set, Crankshaft Thrust
11011	11012-67020	Washer Set, Crankshaft Thrust
11011	11013-30010	Washer Set, Crankshaft Thrust
11011	11013-67020	Washer Set, Crankshaft Thrust
11702	11704-30020	Bearing Set, Crankshaft (0.25)
11702	11704-30030	Bearing Set, Crankshaft
11702	11704-67021	Bearing Set, Crankshaft (0.25)
11702	11705-30020	Bearing Set, Crankshaft (0.50)
11702	11705-30030	Bearing Set, Crankshaft
11702	11705-67021	Bearing Set, Crankshaft
11711	11701-30020-02	Bearing, Crankshaft
11711	11701-30020-03	Bearing, Crankshaft
11711	11701-30020-04	Bearing, Crankshaft
11711	11701-30020-05	Bearing, Crankshaft
11711	11701-30020-06	Bearing, Crankshaft
11711	11701-30030-02	Bearing, Crankshaft
11711	11701-30030-03	Bearing, Crankshaft
11711	11701-30030-04	Bearing, Crankshaft
11711	11701-30030-05	Bearing, Crankshaft
11711	11701-30030-06	Bearing, Crankshaft
11711	11701-67021-02	Bearing, Crankshaft
11711	11701-67021-03	Bearing, Crankshaft
11711	11701-67021-04	Bearing, Crankshaft
11711	11701-67021-05	Bearing, Crankshaft
11711	11701-67021-06	Bearing, Crankshaft
13011	13011-30030	Ring Set, Piston
13011	13011-30031	Ring Set, Piston
13011	13013-30030	Ring Set, Piston
13011	13013-30031	Ring Set, Piston (0.50)
13041	13041-30020-02	Bearing, Connecting Rod
13041	13041-30020-03	Bearing, Connecting Rod
13041	13041-30020-04	Bearing, Connecting Rod
13041	13041-30020-05	Bearing, Connecting Rod
13041	13041-30020-06	Bearing, Connecting Rod
13041	13041-30030-02	Bearing, Connecting Rod
13041	13041-30030-03	Bearing, Connecting Rod
13041	13041-30030-04	Bearing, Connecting Rod
13041	13041-30030-05	Bearing, Connecting Rod
13041	13041-30030-06	Bearing, Connecting Rod
13041	13041-67031-02	Bearing, Connecting Rod
13041	13041-67031-03	Bearing, Connecting Rod
13041	13041-67031-04	Bearing, Connecting Rod
13041	13041-67031-05	Bearing, Connecting Rod
13041	13041-67031-06	Bearing, Connecting Rod
13101	13101-30030-01	Piston Sub-Assy, W/pin
13101	13101-30081-01	Piston Sub-Assy, W/pin
13101	13101-30030-02	Piston Sub-Assy, W/pin
13101	13101-30081-02	Piston Sub-Assy, W/pin
13101	13101-30030-03	Piston Sub-Assy, W/pin
13101	13101-30081-03	Piston Sub-Assy, W/pin
13101	13101-30031-01	Piston Sub-Assy, W/pin
13101	13101-30031-02	Piston Sub-Assy, W/pin
13101	13101-30031-03	Piston Sub-Assy, W/pin
13101	13101-30100-01	Piston Sub-Assy, W/pin
13101	13101-30102-01	Piston Sub-Assy, W/pin
13101	13101-30100-02	Piston Sub-Assy, W/pin
13101	13101-30102-02	Piston Sub-Assy, W/pin
13101	13101-30100-03	Piston Sub-Assy, W/pin
13101	13101-30102-03	Piston Sub-Assy, W/pin
13101	13101-30101-01	Piston Sub-Assy, W/pin
13101	13101-30101-02	Piston Sub-Assy, W/pin
13101	13101-30101-03	Piston Sub-Assy, W/pin
13101	13103-30030	Piston Sub-Assy, W/pin
13101	13103-30081	Piston Sub-Assy, W/pin
13101	13103-30031	Piston Sub-Assy, W/pin
13101	13103-30100	Piston Sub-Assy, W/pin
13101	13103-30102	Piston Sub-Assy, W/pin
13101	13103-30101	Piston Sub-Assy, W/pin
13101	90520-37014	Ring, Hole Snap(For Piston Pin)
13201	13201-30030	Rod Sub-Assy, Connecting
13201	13201-30041	Rod Sub-Assy, Connecting
13201	13201-30031	Rod Sub-Assy, Connecting
13201	90999-73145	Bush(For Connecting Rod Small End)
13201	90999-73157	Bush(For Connecting Rod Small End)
13202	13204-30020	Bearing Set, Connecting Rod (0.25)
13202	13204-30030	Bearing Set, Connecting Rod
13202	13204-67031	Bearing Set, Connecting Rod (0.25)
13202	13205-30020	Bearing Set, Connecting Rod (0.50)
13202	13205-30030	Bearing Set, Connecting Rod
13202	13205-67031	Bearing Set, Connecting Rod
13265	13265-67021	Bolt, Connecting Rod
13405	13405-30030	Flywheel Sub-Assy
13405	13405-30031	Flywheel Sub-Assy
13405	90250-10192	Pin, Straight(For Timing Gear Cover Set)
13405	90105-13010	Bolt, Flywheel Setting
13411	13401-0L100	Crankshaft
13411	13401-30060	Crankshaft
13411	13401-30020	Crankshaft
13453	13453-67030	Gear, Flywheel Ring
13471	13408-30010	Pulley, Crankshaft
13471	13408-30011	Pulley, Crankshaft
13471	90280-T0002	Key, Crankshaft(For Crankshaft Pulley Set)
13471	95161-30516	Key(For Oil Pump Drive Spline)
13471	90119-18003	Bolt(For Crankshaft Pulley Set)
13508	90250-05027	Pin, Straight
13521	13521-30020	Gear Or Sprocket, Crankshaft Timing
13521	13521-67020	Gear Or Sprocket, Crankshaft Timing
13525	13508-30010	Gear, Idle, No.1
13525	13508-30011	Gear, Idle, No.1
13538	13538-67900	Gear, Idle Sub, No.2
13538	90206-69001	Washer, Wave
13538	90520-58002	Ring, Shaft Snap
13572	13572-67041	Plate, Idle Gear Thrust
13578	13578-67010	Spring, Idle Gear
13581	13581-67041	Shaft, Idle Gear, No.1
13613	13603-30020	Gear, Injection
13613	90363-67001	Bearing, Radial Ball
19315	19315-30010	Plate, Crank Angle Sensor, No.1
9010510398	90105-10398	BOLT WASHER BASED
9017614003	90176-14003	NUT CAP
9030123005	90301-23005	O-RING
9151160632	91511-60632	Bolt

OEM	Part name	Category
11011-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11011-67020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11012-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11012-67020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11013-30010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11013-67020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30020-02	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30020-03	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30020-04	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30020-05	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30020-06	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30030-02	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30030-03	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30030-04	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30030-05	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-30030-06	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-67021-02	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-67021-03	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-67021-04	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-67021-05	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11701-67021-06	Bearing, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11704-30020	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11704-30030	Bearing Set, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11704-67021	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11705-30020	Bearing Set, Crankshaft (0.50)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11705-30030	Bearing Set, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
11705-67021	Bearing Set, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13011-30030	Ring Set, Piston	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13011-30031	Ring Set, Piston	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13013-30030	Ring Set, Piston	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13013-30031	Ring Set, Piston (0.50)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30020-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30020-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30020-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30020-05	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30020-06	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30030-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30030-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30030-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30030-05	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-30030-06	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-67031-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-67031-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-67031-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-67031-05	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13041-67031-06	Bearing, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30030-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30030-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30030-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30031-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30031-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30031-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30081-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30081-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30081-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30100-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30100-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30100-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30101-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30101-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30101-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30102-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30102-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13101-30102-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13103-30030	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13103-30031	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13103-30081	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13103-30100	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13103-30101	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13103-30102	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13201-30030	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13201-30031	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13201-30041	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13204-30020	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13204-30030	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13204-67031	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13205-30020	Bearing Set, Connecting Rod (0.50)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13205-30030	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13205-67031	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13265-67021	Bolt, Connecting Rod	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13401-0L100	Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13401-30020	Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13401-30060	Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13405-30030	Flywheel Sub-Assy	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13405-30031	Flywheel Sub-Assy	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13408-30010	Pulley, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13408-30011	Pulley, Crankshaft	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13453-67030	Gear, Flywheel Ring	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13508-30010	Gear, Idle, No.1	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13508-30011	Gear, Idle, No.1	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13521-30020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13521-67020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13538-67900	Gear, Idle Sub, No.2	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13572-67041	Plate, Idle Gear Thrust	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13578-67010	Spring, Idle Gear	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13581-67041	Shaft, Idle Gear, No.1	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
13603-30020	Gear, Injection	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
19315-30010	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90105-10398	BOLT WASHER BASED	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90105-13010	Bolt, Flywheel Setting	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90119-18003	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90176-14003	NUT CAP	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90206-69001	Washer, Wave	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90250-05027	Pin, Straight	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90280-T0002	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90301-23005	O-RING	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90363-67001	Bearing, Radial Ball	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90520-37014	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90520-58002	Ring, Shaft Snap	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90999-73145	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
90999-73157	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
91511-60632	Bolt	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([08.2001 - ] (0108- )2KDFTV)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 278
Collected: 2026-08-03
