Search › Model › KLH28

KLH28

Toyota HIACE · 2001 · 5,287 parts · 278 categories

5,287 items

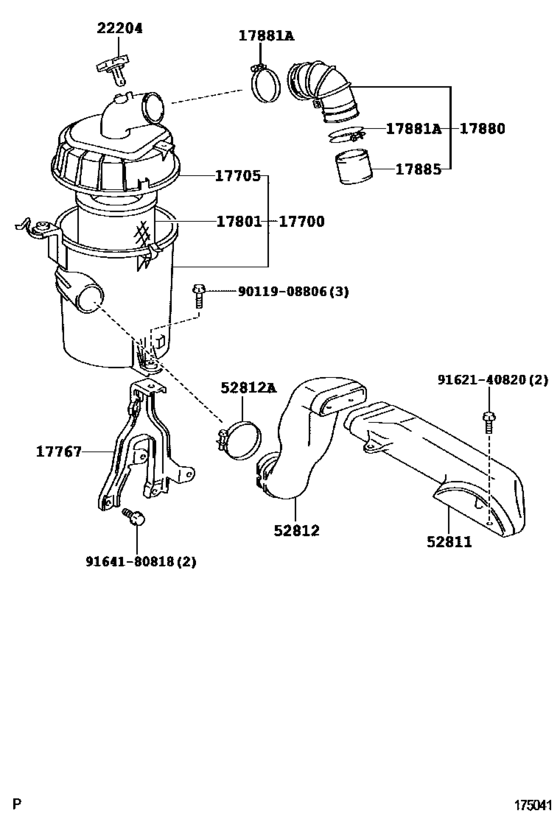

Air Cleaner ([08.2006 - ] (0608- )) 42

#	OEM	Part name
17116	17116-67021	Gasket, Intake Flange
17341	17341-30030	Hose, Air, No.1
17341	17341-30040	Hose, Air, No.1
17341	17341-30060	Hose, Air, No.1
17341	90460-80006	Clamp, Hose
17342	17342-30030	Hose, Air, No.2
17342	17342-30050	Hose, Air, No.2
17700	17700-30110	Cleaner Assy, Air
17705	17705-30070	Cap Sub-Assy, Air Cleaner
17767	17771-54100	Bracket, Air Cleaner
17801	17801-54140	Element Sub-Assy, Air Cleaner Filter
17861	17860-30080	Connector, Intake Air
17880	17880-30050	Hose Assy, Air Cleaner
17881	90467-58002	Clamp(For Air Cleaner Hose, No.1)
17881	96111-10800	Clamp, Hose(For Air Cleaner Duct)
17881	96111-10830	Clamp, Hose(For Air Connector)
17882	17882-30070	Hose, Air Cleaner, No.2
17882	90460-67008	Clamp Or Clip(For Air Hose, No.1)
17882	90466-66001	Clamp(For Air Cleaner Hose, No.2)
17883	17883-30060	Hose, Air Cleaner, No.3
17885	17885-30050	Pipe, Air Cleaner
17940	17940-30090	Intercooler Assy
17941	17941-30010	Guide, Intercooler Air, No.1
17942	17942-30010	Guide, Intercooler Air, No.2
17946	17946-30060	Bracket, Intercooler Support, No.2
17947	17947-30010	Bracket, Intercooler Support, No.3
17947	17947-30020	Bracket, Intercooler Support, No.3
22204	22204-30010	Meter Sub-Assy, Intake Air Flow
22204	22204-33010	Meter Sub-Assy, Intake Air Flow
52811	52811-26030	Duct, Air Cleaner
52811	52811-26070	Duct, Cool Air Intake, No.1
52812	52812-26030	Duct, Cool Air Intake, No.2
91671	91671-A0614	Bolt
9011908	90119-08C79	New Genuine Part
9010508070	90105-08070	Bolt (For Pawl Stopper Plate)
9011908806	90119-08806	BOLT WWASHER
9046057005	90460-57005	Clamp Or Clip(For Air Hose, No.2)
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9162140820	91621-40820	Bolt
9164180818	91641-80818	BOLT WWASHER
9167100816	91671-00816	New Genuine Part
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
17116-67021	Gasket, Intake Flange	Air Cleaner ([08.2006 - ] (0608- ))
17341-30030	Hose, Air, No.1	Air Cleaner ([08.2006 - ] (0608- ))
17341-30040	Hose, Air, No.1	Air Cleaner ([08.2006 - ] (0608- ))
17341-30060	Hose, Air, No.1	Air Cleaner ([08.2006 - ] (0608- ))
17342-30030	Hose, Air, No.2	Air Cleaner ([08.2006 - ] (0608- ))
17342-30050	Hose, Air, No.2	Air Cleaner ([08.2006 - ] (0608- ))
17700-30110	Cleaner Assy, Air	Air Cleaner ([08.2006 - ] (0608- ))
17705-30070	Cap Sub-Assy, Air Cleaner	Air Cleaner ([08.2006 - ] (0608- ))
17771-54100	Bracket, Air Cleaner	Air Cleaner ([08.2006 - ] (0608- ))
17801-54140	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.2006 - ] (0608- ))
17860-30080	Connector, Intake Air	Air Cleaner ([08.2006 - ] (0608- ))
17880-30050	Hose Assy, Air Cleaner	Air Cleaner ([08.2006 - ] (0608- ))
17882-30070	Hose, Air Cleaner, No.2	Air Cleaner ([08.2006 - ] (0608- ))
17883-30060	Hose, Air Cleaner, No.3	Air Cleaner ([08.2006 - ] (0608- ))
17885-30050	Pipe, Air Cleaner	Air Cleaner ([08.2006 - ] (0608- ))
17940-30090	Intercooler Assy	Air Cleaner ([08.2006 - ] (0608- ))
17941-30010	Guide, Intercooler Air, No.1	Air Cleaner ([08.2006 - ] (0608- ))
17942-30010	Guide, Intercooler Air, No.2	Air Cleaner ([08.2006 - ] (0608- ))
17946-30060	Bracket, Intercooler Support, No.2	Air Cleaner ([08.2006 - ] (0608- ))
17947-30010	Bracket, Intercooler Support, No.3	Air Cleaner ([08.2006 - ] (0608- ))
17947-30020	Bracket, Intercooler Support, No.3	Air Cleaner ([08.2006 - ] (0608- ))
22204-30010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([08.2006 - ] (0608- ))
22204-33010	Meter Sub-Assy, Intake Air Flow	Air Cleaner ([08.2006 - ] (0608- ))
52811-26030	Duct, Air Cleaner	Air Cleaner ([08.2006 - ] (0608- ))
52811-26070	Duct, Cool Air Intake, No.1	Air Cleaner ([08.2006 - ] (0608- ))
52812-26030	Duct, Cool Air Intake, No.2	Air Cleaner ([08.2006 - ] (0608- ))
90105-08070	Bolt (For Pawl Stopper Plate)	Air Cleaner ([08.2006 - ] (0608- ))
90119-08806	BOLT WWASHER	Air Cleaner ([08.2006 - ] (0608- ))
90119-08C79	New Genuine Part	Air Cleaner ([08.2006 - ] (0608- ))
90460-57005	Clamp Or Clip(For Air Hose, No.2)	Air Cleaner ([08.2006 - ] (0608- ))
90460-67008	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([08.2006 - ] (0608- ))
90460-80006	Clamp, Hose	Air Cleaner ([08.2006 - ] (0608- ))
90466-66001	Clamp(For Air Cleaner Hose, No.2)	Air Cleaner ([08.2006 - ] (0608- ))
90467-58002	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([08.2006 - ] (0608- ))
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Air Cleaner ([08.2006 - ] (0608- ))
91621-40820	Bolt	Air Cleaner ([08.2006 - ] (0608- ))
91641-80818	BOLT WWASHER	Air Cleaner ([08.2006 - ] (0608- ))
91671-00816	New Genuine Part	Air Cleaner ([08.2006 - ] (0608- ))
91671-A0614	Bolt	Air Cleaner ([08.2006 - ] (0608- ))
91673-80616	Bolt, W/washer	Air Cleaner ([08.2006 - ] (0608- ))
96111-10800	Clamp, Hose(For Air Cleaner Duct)	Air Cleaner ([08.2006 - ] (0608- ))
96111-10830	Clamp, Hose(For Air Connector)	Air Cleaner ([08.2006 - ] (0608- ))
