KLH22

Toyota HIACE · 2001 · 4,937 parts · 270 categories

4,937 items

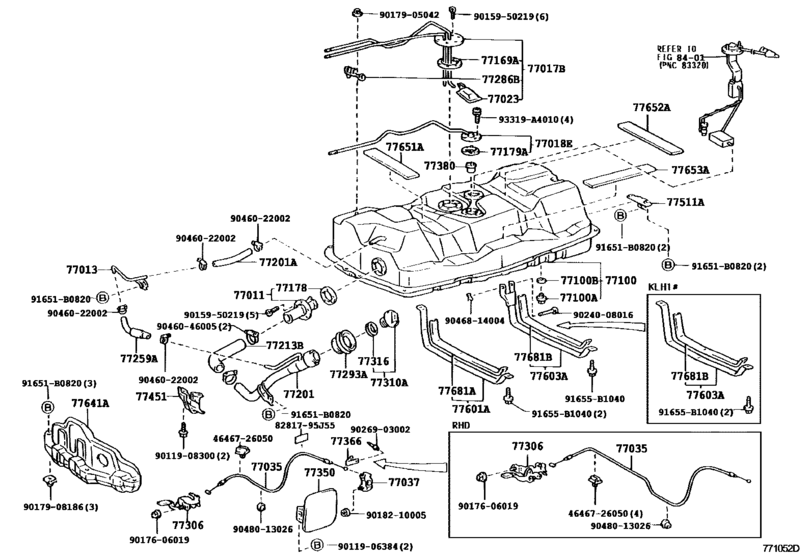

Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#) 61

#	OEM	Part name
77011	77011-26050	Pipe Sub-Assy, Fuel Tank Filler, Lower
77013	77013-26110	Tube Sub-Assy, Fuel Tank Breather, No.2
77013	77013-26140	Tube Sub-Assy, Fuel Tank Breather, No.2
77017	77017-26170	Tube Sub-Assy, Fuel Tank Vent
77018	77018-26191	Tube Sub-Assy, Fuel Tank Evaporation Vent
77023	77023-26010	Filter Sub-Assy, Fuel Suction Tube
77035	77035-26021	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-95D01	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-26603	Tank Assy, Fuel
77100	77001-26605	Tank Assy, Fuel
77100	77001-26604	Tank Assy, Fuel
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77169	77169-32010	Gasket, Fuel Pump Bracket
77178	77178-20030	Gasket, Fuel Tank Filler Pipe, Lower
77179	77179-26010	Gasket, Fuel Tank Evap/vent Tube
77179	77179-26011	Gasket, Fuel Suction Tube Set, No.1
77201	77201-26200	Pipe Sub-Assy, Fuel Tank Inlet
77201	95313-13017	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213	77213-26100	Hose, Fuel Tank To Filler Pipe
77213	77213-26110	Hose, Fuel Tank To Filler Pipe
77213	77213-26130	Hose, Fuel Tank To Filler Pipe
77259	77259-26050	Hose, Fuel(For Breather Tube)
77286	77285-26020	Clamp, Fuel Tube W/grommet, No.2
77293	77293-26010	Shield, Fuel Tank Filler Pipe, No.3
77306	77306-26020	Lever Sub-Assy, Fuel Lid Lock Open
77310	77300-60010	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77350	77350-26020	Lid Assy, Fuel Filler Opening
77366	77366-95J01	Spring, Fuel Filler Opening Lid Hinge
77380	77380-26010	Valve Assy, Fuel Cut Off
77451	77451-26030	Protector, Fuel Inlet Hose
77511	77511-26050	Bracket, Fuel Tank
77601	77601-26080	Band Sub-Assy, Fuel Tank, No.1
77603	77603-26070	Band Sub-Assy, Fuel Tank, No.2
77641	77641-26020	Protector, Fuel Tank, No.1
77651	77651-26070	Cushion, Fuel Tank, No.1
77652	77653-26040	Cushion, Fuel Tank, No.1
77681	77681-32060	Seat, Fuel Tank Band, Rh
77681	77681-26050	Seat, Fuel Tank Band
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
91655	91655-B1040	BOLT WWASHER
93319	93319-A4010	SCREW WWASHER
8281795	82817-95J55	Support, Slide Roof Rain Channel Hose
4646726050	46467-26050	Clamp, Cable
9011906384	90119-06384	New Genuine Part
9011908300	90119-08300	New Genuine Part
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9017606019	90176-06019	Nut (For Rear Wiper Arm Setting)
9017905042	90179-05042	NUT
9017908186	90179-08186	New Genuine Part
9018210005	90182-10005	NUT WWASHER
9024008016	90240-08016	New Genuine Part
9026903002	90269-03002	RIVET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046005	90460-46005	Clamp (For Fuel Filler Pipe)
9046814004	90468-14004	Union, Auxiliary Fuel Band
9048013026	90480-13026	New Genuine Part

OEM	Part name	Category
46467-26050	Clamp, Cable	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77001-26603	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77001-26604	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77001-26605	Tank Assy, Fuel	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77011-26050	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77013-26110	Tube Sub-Assy, Fuel Tank Breather, No.2	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77013-26140	Tube Sub-Assy, Fuel Tank Breather, No.2	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77017-26170	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77018-26191	Tube Sub-Assy, Fuel Tank Evaporation Vent	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77023-26010	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77035-26021	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77037-95D01	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77169-32010	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77178-20030	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77179-26010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77179-26011	Gasket, Fuel Suction Tube Set, No.1	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77201-26200	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77213-26100	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77213-26110	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77213-26130	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77259-26050	Hose, Fuel(For Breather Tube)	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77285-26020	Clamp, Fuel Tube W/grommet, No.2	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77293-26010	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77300-60010	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77306-26020	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77350-26020	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77366-95J01	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77380-26010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77451-26030	Protector, Fuel Inlet Hose	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77511-26050	Bracket, Fuel Tank	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77601-26080	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77603-26070	Band Sub-Assy, Fuel Tank, No.2	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77641-26020	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77651-26070	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77653-26040	Cushion, Fuel Tank, No.1	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77681-26050	Seat, Fuel Tank Band	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
77681-32060	Seat, Fuel Tank Band, Rh	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
82817-95J55	Support, Slide Roof Rain Channel Hose	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90080-11347	New Genuine Part	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90119-06384	New Genuine Part	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90119-08300	New Genuine Part	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90159-50219	BOLT	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90176-06019	Nut (For Rear Wiper Arm Setting)	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90179-05042	NUT	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90179-08186	New Genuine Part	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90182-10005	NUT WWASHER	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90240-08016	New Genuine Part	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90269-03002	RIVET	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90460-22001	CLAMP	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90460-22002	CLAMP	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90468-14004	Union, Auxiliary Fuel Band	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
90480-13026	New Genuine Part	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
91655-B1040	BOLT WWASHER	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
93319-A4010	SCREW WWASHER	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
95313-13017	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([08.2001 - ] FUEL TANK (0108- )KLH1#,2#)
