Search › Model › KLH22

KLH22

Toyota HIACE · 2001 · 4,937 parts · 270 categories

4,937 items

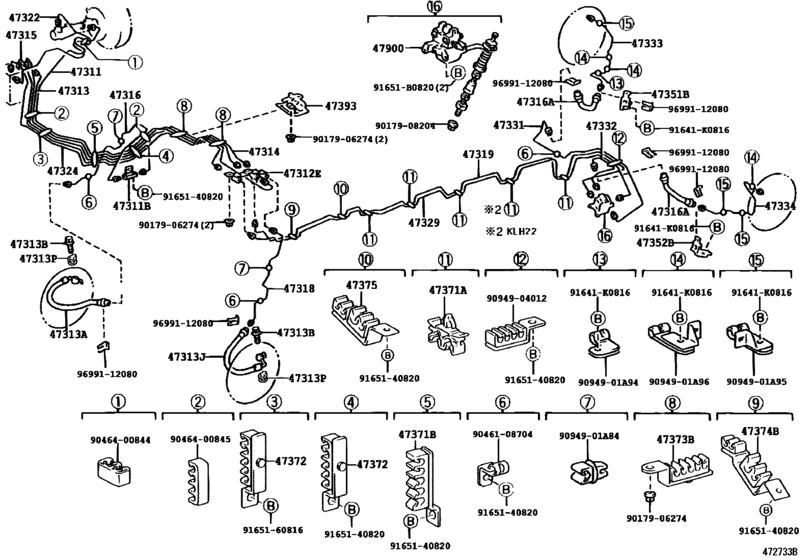

Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD) 56

#	OEM	Part name
47311	47311-2F060	Tube, Front Brake, No.1
47311	47311-2F090	Tube, Front Brake, No.1
47311	90412-10165	Way, No.1(For Front Brake Tube)
47311	90904-14005	Way, No.1(For Front Brake Tube)
47312	90904-13024	Way, No.2(For Front Brake Tube)
47313	47313-26300	Tube, Front Brake, No.3
47313	90947-02C15	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-02C16	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-26280	Tube, Front Brake, No.4
47315	47315-26220	Tube, Front Brake, No.5
47316	47316-26430	Tube, Front Brake, No.6
47316	90947-02C02	Hose, Flexible(For Rear Brake Tube)
47318	47318-26240	Tube, Front Brake, No.8
47319	47319-26330	Tube, Front Brake, No.9
47319	47319-26340	Tube, Front Brake, No.9
47322	47322-26390	Tube, Rear Brake, No.2
47324	47324-26520	Tube, Rear Brake, No.4
47329	47329-26330	Tube, Rear Brake, No.9
47331	47331-26170	Tube, Rear Brake, No.10
47332	47332-26110	Tube, Rear Brake, No.11
47333	47333-26080	Tube, Rear Brake, No.5
47334	47334-26090	Tube, Rear Brake, No.6
47351	47351-26200	Bracket, Flexible Hose, No.1
47352	47352-26180	Bracket, Flexible Hose, No.2
47371	90464-00847	Clamp, Brake Tube, No.1
47371	90949-04015	Clamp, Brake Tube, No.6
47372	90949-04013	Clamp(For Clutch Master Cylinder Tube)
47372	90949-04020	Clamp, Brake Tube, No.2
47373	90949-04014	Clamp, Brake Tube, No.3
47374	90949-04018	Clamp, Brake Tube, No.4
47375	90949-04019	Clamp, Brake Tube, No.5
47393	47393-26040	Insulator, Brake Tube Heat
47900	47900-26501	Valve Assy, Load Sensing W/spring
47900	47900-26502	Valve Assy, Load Sensing W/spring
91641	91641-K0816	BOLT WWASHER
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
9094901	90949-01A84	Clamp, Height Control Tube, No.3
9094901	90949-01A94	New Genuine Part
9094901	90949-01A95	New Genuine Part
9094901	90949-01A96	New Genuine Part
9017906274	90179-06274	Nut
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9046108704	90461-08704	New Genuine Part
9046400844	90464-00844	New Genuine Part
9046400845	90464-00845	New Genuine Part
9094904012	90949-04012	New Genuine Part
9165140820	91651-40820	Bolt
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-2F060	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47311-2F090	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47313-26300	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47314-26280	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47315-26220	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47316-26430	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47318-26240	Tube, Front Brake, No.8	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47319-26330	Tube, Front Brake, No.9	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47319-26340	Tube, Front Brake, No.9	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47322-26390	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47324-26520	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47329-26330	Tube, Rear Brake, No.9	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47331-26170	Tube, Rear Brake, No.10	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47332-26110	Tube, Rear Brake, No.11	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47333-26080	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47334-26090	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47351-26200	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47352-26180	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47393-26040	Insulator, Brake Tube Heat	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47900-26501	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
47900-26502	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90080-11347	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90080-11396	Bolt	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90080-18070	NUT, WWASHER	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90179-06274	Nut	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90179-08204	Nut	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90412-10165	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90461-08704	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90464-00844	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90464-00845	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90464-00847	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90904-13024	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90904-14005	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90947-02C02	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90947-02C15	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90947-02C16	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-01A84	Clamp, Height Control Tube, No.3	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-01A94	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-01A95	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-01A96	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-04012	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-04013	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-04014	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-04015	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-04018	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-04019	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
90949-04020	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
91641-K0816	BOLT WWASHER	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
91651-40820	Bolt	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
91651-60816	BOLT	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
91651-B0820	Bolt, Radiator Side Support Plate	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
96991-12080	Clip	Brake Tube & Clamp ([08.2001 - ] W(ABS) (0108- )KLH12,22..RHD)
