Search › Model › KLH22

KLH22

Toyota HIACE · 2001 · 4,937 parts · 270 categories
KLH22 ×

← Back to categories

4,937 items

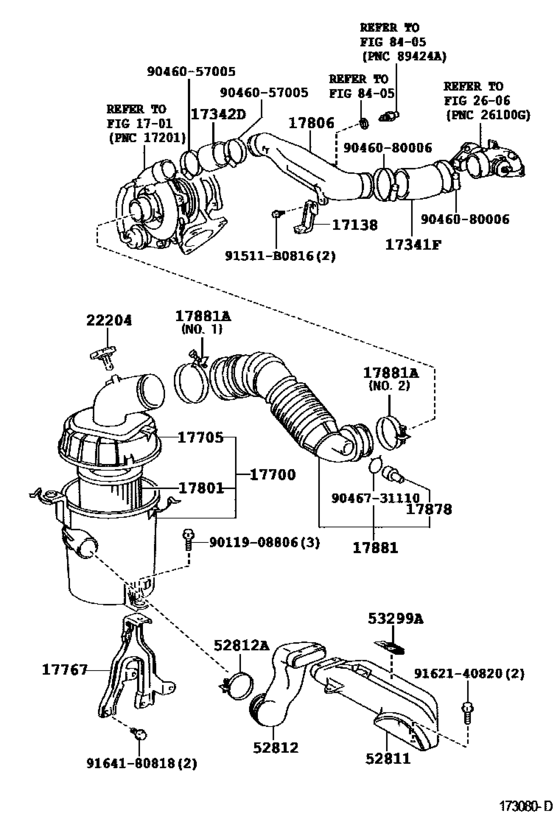

Air Cleaner ([08.2001 - 08.2006] (0108-0608)2KDFTV) 31
#OEMPart name
17138 17138-30020 Stay, Intake Pipe Or Hose
17341 17341-30030 Hose, Air, No.1
17341 17341-30040 Hose, Air, No.1
17341 17341-30060 Hose, Air, No.1
17342 17342-30030 Hose, Air, No.2
17342 17342-30050 Hose, Air, No.2
17700 17700-30110 Cleaner Assy, Air
17705 17705-30070 Cap Sub-Assy, Air Cleaner
17767 17771-54100 Bracket, Air Cleaner
17801 17801-54140 Element Sub-Assy, Air Cleaner Filter
17806 17113-30010 Pipe Sub-Assy, Air Cleaner, No.2
17806 17113-30011 Pipe Sub-Assy, Air Cleaner, No.2
17878 17878-30010 Pipe, Intake Air Connector, No.3
17881 17881-30070 Hose, Air Cleaner, No.1
17881 90467-58002 Clamp(For Air Cleaner Hose, No.1)
17881 96111-10800 Clamp, Hose(For Air Cleaner Duct)
17881 96111-10830 Clamp, Hose(For Air Connector)
22204 22204-30010 Meter Sub-Assy, Intake Air Flow
22204 22204-33010 Meter Sub-Assy, Intake Air Flow
52811 52811-26030 Duct, Air Cleaner
52811 52811-26070 Duct, Cool Air Intake, No.1
52812 52812-26030 Duct, Cool Air Intake, No.2
53299 53299-26010 Plate, Cool Air Intake Duct
91511 91511-B0816 BOLT
91511 90080-10159 New Genuine Part
9011908806 90119-08806 BOLT WWASHER
9046057005 90460-57005 Clamp Or Clip(For Air Hose, No.2)
9046080006 90460-80006 Clamp, Hose
9046731110 90467-31110 Clip(For Load Sensing Valve Boot)
9162140820 91621-40820 Bolt
9164180818 91641-80818 BOLT WWASHER
Source
Public OEM parts-catalog data
Variants
1 / 22
Category
270
Collected
2026-08-03
