KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories
KLH12 ×

← Back to categories

4,821 items

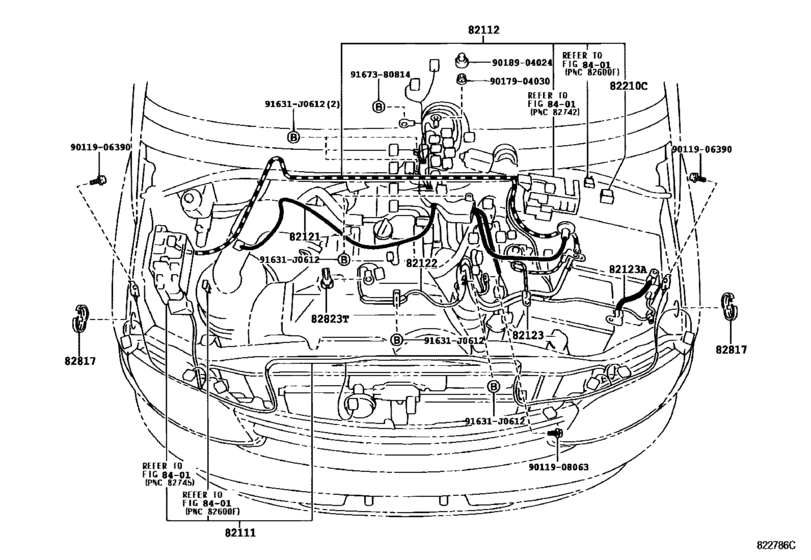

Wiring & Clamp ([08.2001 - 08.2006] ENGINE & ENGINE ROOM WIRE (0108-0608)KLH12,22..RHD) 33
#OEMPart name
82111 82111-26S80 Wire, Engine Room Main
82111 82111-26S90 Wire, Engine Room Main
82111 82111-2N301 Wire, Engine Room Main
82111 82111-2N311 Wire, Engine Room Main
82111 82111-2N321 Wire, Engine Room Main
82112 82112-26450 Wire, Engine Room, No.2
82112 82112-26451 Wire, Engine Room, No.2
82121 82139-26070 Wire, Engine
82121 82139-26071 Wire, Engine
82121 82139-26072 Wire, Engine
82121 82139-26073 Wire, Engine
82122 82122-26490 Wire, Engine, No.2
82122 82122-26491 Wire, Engine, No.2
82122 82122-26492 Wire, Engine, No.2
82122 82122-26500 Wire, Engine, No.2
82122 82122-26501 Wire, Engine, No.2
82122 82122-26502 Wire, Engine, No.2
82123 82123-26020 Wire, Engine, No.3
82123 82123-26030 Wire, Engine, No.3
82210 90982-08190 Fusible Link
82210 90982-08203 Fusible Link
82210 90982-08274 Fusible Link
82210 90982-08281 Fusible Link
82210 90982-08282 Fusible Link
82817 82817-2B730 Protector, Wiring Harness, No.1
82823 82823-22050 Cap, Terminal, No.1
82823 82823-26020 Cap, Terminal, No.1
91631 91631-J0612 BRACKET
9011906390 90119-06390 BOLT WWASHER
9011908063 90119-08063 BOLT
9017904030 90179-04030 Nut, Connecting(For Glow Plug)
9018904024 90189-04024 Grommet, Screw(For Glow Plug)
9167380814 91673-80814 Bolt Flange W Washe
