KLH12

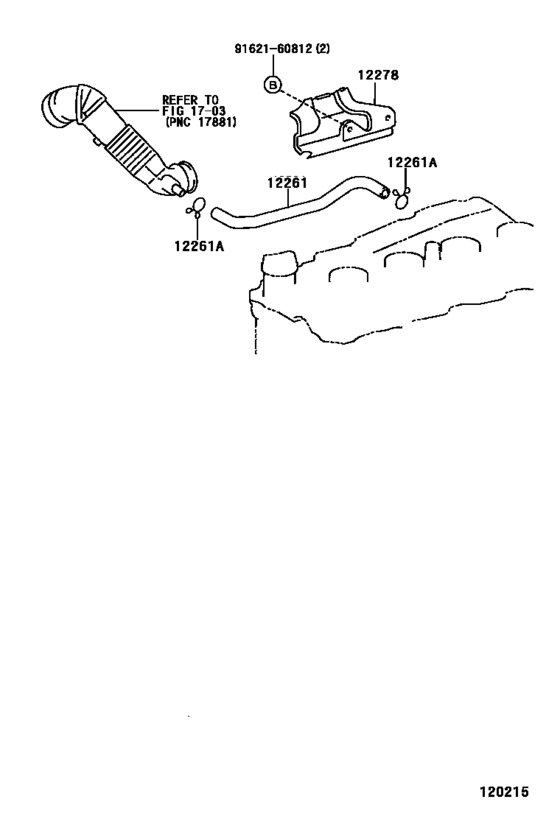

Ventilation Hose ([08.2001 - 08.2006] (0108-0608)2KDFTV) 7
| # | OEM | Part name |
|---|---|---|
| 12261 | 12261-30010 | Hose, Ventilation |
| 12261 | 12261-30080 | Hose, Ventilation |
| 12261 | 90467-22010 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-23002 | Clip Or Clamp(For Ventilation Hose) |
| 12278 | 12278-30020 | Insulator, Ventilation Hose Heat |
| 9162160812 | 91621-60812 | BOLTWWASHER |
| 9162160812 | 91651-B0814 | Bolt with washer |
| OEM | Part name | Category |
|---|---|---|
| 12261-30010 | Hose, Ventilation | Ventilation Hose ([08.2001 - 08.2006] (0108-0608)2KDFTV) |
| 12261-30080 | Hose, Ventilation | Ventilation Hose ([08.2001 - 08.2006] (0108-0608)2KDFTV) |
| 12278-30020 | Insulator, Ventilation Hose Heat | Ventilation Hose ([08.2001 - 08.2006] (0108-0608)2KDFTV) |
| 90467-22010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2001 - 08.2006] (0108-0608)2KDFTV) |
| 90467-23002 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2001 - 08.2006] (0108-0608)2KDFTV) |
| 91621-60812 | BOLTWWASHER | Ventilation Hose ([08.2001 - 08.2006] (0108-0608)2KDFTV) |
| 91651-B0814 | Bolt with washer | Ventilation Hose ([08.2001 - 08.2006] (0108-0608)2KDFTV) |
