Search › Model › KLH12

KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories

4,821 items

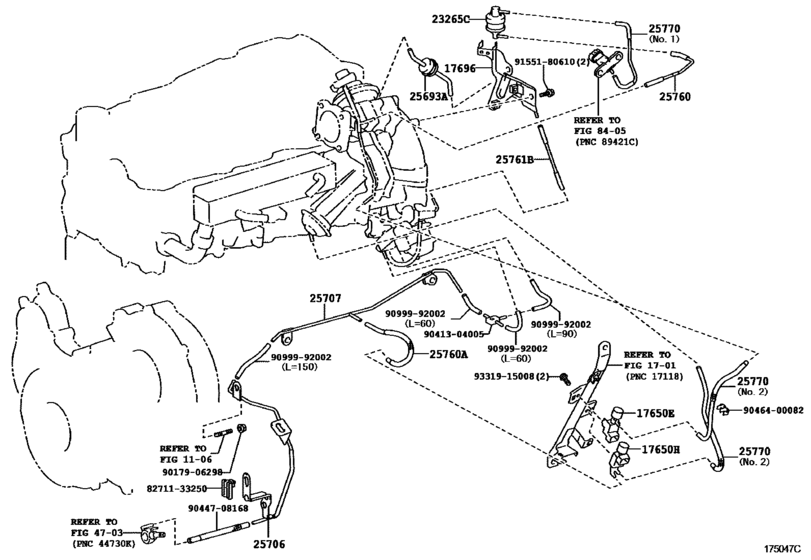

Vacuum Piping ([08.2006 - 08.2009] (0608-0908)) 23

#	OEM	Part name
17650	90910-12184	Valve, Vacuum Switching
17650	90910-12093	Valve, Vacuum Switching
17696	17696-30030	Bracket, Gas Filter
23265	90917-11036	Filter, Gas, No.1
25693	25692-30010	Damper, Egr Vacuum Modulator
25706	25706-30020	Pipe Sub-Assy, Vacuum Transmitting, No.1
25706	25706-30040	Pipe Sub-Assy, Vacuum Transmitting, No.1
25706	25706-30041	Pipe Sub-Assy, Vacuum Transmitting, No.1
25707	25707-30020	Pipe Sub-Assy, Vacuum Transmitting, No.2
25707	25707-67011	Pipe Sub-Assy, Vacuum Transmitting, No.2
25760	25760-30080	Hose Assy, Vacuum Transmitting
25760	25760-30110	Hose Assy, Vacuum Transmitting, No.3
25761	90447-08056	Hose, Vaccum Transmitting, No.1
25770	25770-30010	Hose Assy, Vacuum Transmitting, No.2
25770	25770-30040	Hose Assy, Vacuum Transmitting, No.2
8271133250	82711-33250	Wire, Fuse To Fuse(for Combustion Heater)
9017906298	90179-06298	NUT
9041304005	90413-04005	Way, 3, No.1 (For Front Drive Shift)
9044708168	90447-08168	New Genuine Part
9046400082	90464-00082	Clamp(For Resistive Cord)
9099992002	90999-92002	Air Hose (300 mm)
9155180610	91551-80610	BOLT FLANGE
9331915008	93319-15008	SCREW

OEM	Part name	Category
17696-30030	Bracket, Gas Filter	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25692-30010	Damper, Egr Vacuum Modulator	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25706-30020	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25706-30040	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25706-30041	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25707-30020	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25707-67011	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25760-30080	Hose Assy, Vacuum Transmitting	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25760-30110	Hose Assy, Vacuum Transmitting, No.3	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25770-30010	Hose Assy, Vacuum Transmitting, No.2	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
25770-30040	Hose Assy, Vacuum Transmitting, No.2	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
82711-33250	Wire, Fuse To Fuse(for Combustion Heater)	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90179-06298	NUT	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90413-04005	Way, 3, No.1 (For Front Drive Shift)	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90447-08056	Hose, Vaccum Transmitting, No.1	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90447-08168	New Genuine Part	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90464-00082	Clamp(For Resistive Cord)	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90910-12093	Valve, Vacuum Switching	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90910-12184	Valve, Vacuum Switching	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90917-11036	Filter, Gas, No.1	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
90999-92002	Air Hose (300 mm)	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
91551-80610	BOLT FLANGE	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))
93319-15008	SCREW	Vacuum Piping ([08.2006 - 08.2009] (0608-0908))

Source: Public OEM parts-catalog data
Variants: 1 / 28
Category: 269
Collected: 2026-08-03
