KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories
KLH12 ×

← Back to categories

4,821 items

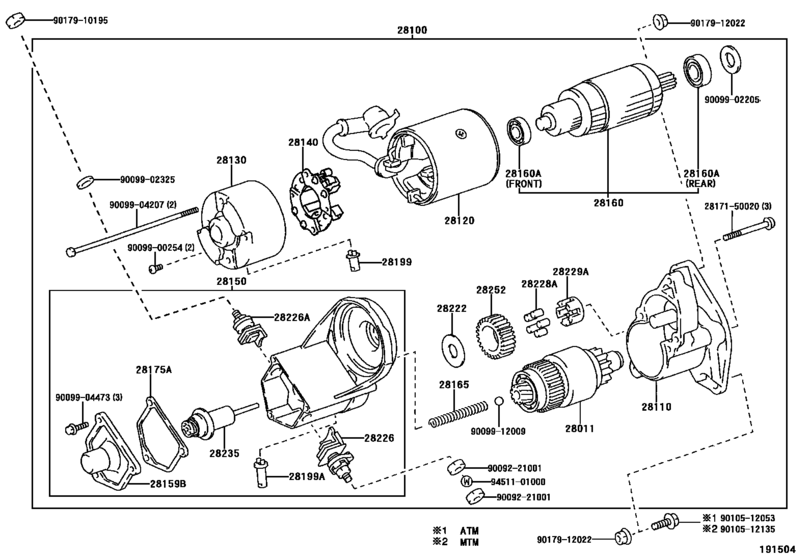

Starter ([08.2001 - 08.2006] 12V 2.7KW (0108-0608)2KDFTV) 57
#OEMPart name
28011 28011-30040 Clutch Sub-Assy, Starter
28011 28011-30050 Clutch Sub-Assy, Starter
28011 28011-67020 Clutch Sub-Assy, Starter
28100 28100-30050 Starter Assy
28100 28100-30051 Starter Assy
28100 28100-30060 Starter Assy
28100 28100-67070 Starter Assy
28110 28110-67040 Housing Assy, Starter Drive
28120 28120-54380 Yoke Assy, Starter
28120 28120-67020 Yoke Assy, Starter
28130 28130-67020 Frame Assy, Starter Commutator End
28140 28140-54380 Holder Assy, Starter Brush
28140 28140-77090 Holder Assy, Starter Brush
28150 28150-30050 Switch Assy, Magnet Starter
28150 28150-30060 Switch Assy, Magnet Starter
28150 28150-67070 Switch Assy, Magnet Starter
28159 28159-17030 Cover, Magnet Switch
28159 28159-54380 Cover, Magnet Switch
28160 28160-54140 Armature Assy, Starter
28160 28160-54380 Armature Assy, Starter
28160 90099-10107 Bearing, Starter Armature
28160 90099-10119 Bearing, Starter Armature
28160 90099-10197 Bearing, Starter Armature
28160 90099-10208 Bearing, Starter Armature
28165 28165-76070 Spring, Starter Magnet Switch Return
28165 28165-77090 Spring, Starter Magnet Switch Return
28175 28175-54380 Gasket, Magnet Switch Cover
28175 28175-56310 Gasket, Magnet Switch Cover
28199 28199-46080 Cover, Starter End Frame
28199 28199-54190 Cover, Starter End Frame
28199 28199-87505 Protector, Dust Starter
28222 28222-77090 Washer, Starter Idle Gear Clutch
28226 28226-54320 Starter Kit, Battery Terminal
28226 28226-64380 Starter Kit, Battery Terminal
28226 28226-54220 Starter Kit, Motor Terminal
28226 28226-72010 Starter Kit, Motor Terminal
28228 28228-26040 Roller, Starter Idle Gear Clutch
28228 28228-56080 Roller, Starter Idle Gear Clutch
28229 28229-56080 Retainer, Starter Idle Gear
28229 28229-74070 Retainer, Starter Idle Gear
28235 28235-17030 Plunger, Magnet Switch
28235 28235-54380 Plunger, Magnet Switch
28252 28254-64130 Pinion, Starter Drive
28252 28254-77090 Pinion, Starter Drive
2817150020 28171-50020 Bolt, Starter
9009221001 90092-21001 NUT
9009900254 90099-00254 New Genuine Part
9009902205 90099-02205 Washer, Felt, Starter
9009902325 90099-02325 WASHER
9009904207 90099-04207 New Genuine Part
9009904473 90099-04473 New Genuine Part
9009912009 90099-12009 Ball, Starter Clutch
9010512053 90105-12053 Bolt (For Rear Differential Carrier)
9010512135 90105-12135 Bolt(For Rear Transaxle Case Cover)
9017910195 90179-10195 NUT WWASHER
9017912022 90179-12022 Nut(For Vane Pump Pulley)
9451101000 94511-01000 Washer(For Rear Drive Shaft)
