KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories
KLH12 ×

← Back to categories

4,821 items

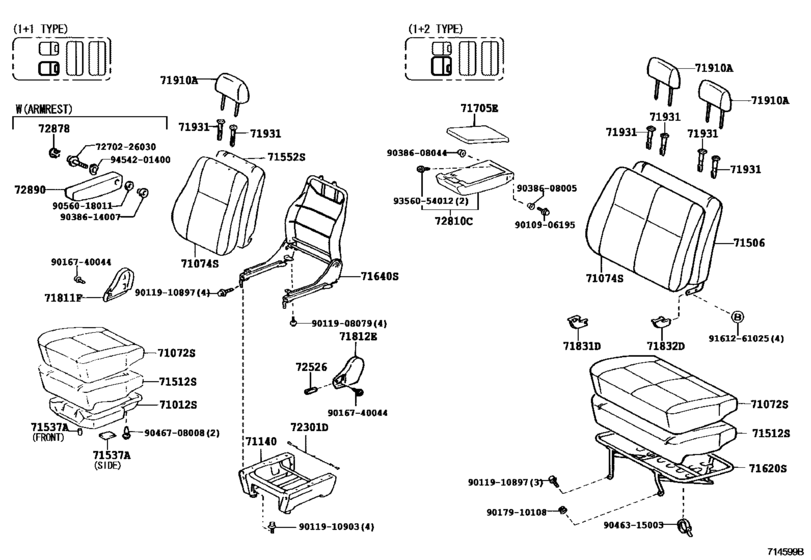

Seat & Seat Track ([08.2006 - ] PASSENGER SEAT (0608- )RHD) 95
#OEMPart name
71012 71011-26040 Frame Sub-Assy, Front Seat Cushion, Rh
71072 71071-2F060-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71071-2F070-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71071-2F071-B1 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71071-2F072-B4 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71071-2F073-B5 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71071-2F074-B6 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-26720-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26730-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26731-B1 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26732-B3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26733-B4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26734-B5 Cover, Front Seat Cushion, Lh(For Separate Type)
71074 70169-26030-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26031-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26032-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26033-B3 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26034-B4 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26100-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26101-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26102-B2 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26103-B3 Cover, Front Seat Back, Lh(For Separate Type)
71074 70169-26104-B4 Cover, Front Seat Back, Lh(For Separate Type)
71074 71027-26010-B0 Cover, Front Seat Back, Rh(For Separate Type)
71074 71027-26011-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71027-26020-B0 Cover, Front Seat Back, Rh(For Separate Type)
71074 71027-26021-B1 Cover, Front Seat Back, Rh(For Separate Type)
71074 71027-26022-B3 Cover, Front Seat Back, Rh(For Separate Type)
71074 71027-26023-B4 Cover, Front Seat Back, Rh(For Separate Type)
71074 71027-26024-B5 Cover, Front Seat Back, Rh(For Separate Type)
71074 71027-26070-B0 Cover, Front Seat Back, Rh(For Separate Type)
71140 71140-26010 Leg Assy, Front Seat, Lh
71506 71505-26040 Pad Sub-Assy, Front Seat Back W/frame, Rh
71506 71505-26080 Pad Sub-Assy, Front Seat Back W/frame, Lh
71512 71511-26060 Pad, Front Seat Cushion, Rh(For Separate Type)
71512 71511-26150 Pad, Front Seat Cushion, Rh(For Separate Type)
71537 71537-26010 Protector, Front Seat Cushion
71537 71695-26050 Protector, Front Seat Cushion
71552 71551-26220 Pad, Front Seat Back, Rh(For Separate Type)
71552 71552-26100 Pad, Front Seat Back, Lh(For Separate Type)
71620 71620-26010 Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71640 71640-26140-C0 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71640-26210-C0 Spring Assy, Front Seat Back, Lh(For Separate Type)
71705 71705-26060-B0 Board Sub-Assy, Front Seat Back
71705 71705-26060-B1 Board Sub-Assy, Front Seat Back
71811 71811-26030-B0 Cover, Reclining Adjuster, Rh
71811 71811-26030-B4 Cover, Reclining Adjuster, Rh
71812 71812-26010-B0 Cover, Reclining Adjuster, Lh
71812 71812-26010-B4 Cover, Reclining Adjuster, Lh
71831 71831-26010-B0 Cover, Front Seat Hinge, Rh
71831 71831-26010-B2 Cover, Front Seat Hinge, Rh
71832 71832-26010-B0 Cover, Front Seat Hinge, Lh
71832 71832-26010-B2 Cover, Front Seat Hinge, Lh
71910 71910-26320-B1 Headrest Assy, Front Seat
71910 71910-26321-B2 Headrest Assy, Front Seat
71910 71910-26322-B4 Headrest Assy, Front Seat
71910 71910-26323-B5 Headrest Assy, Front Seat
71910 71910-26324-B6 Headrest Assy, Front Seat
71910 71910-26350-B0 Headrest Assy, Front Seat
71931 71930-28030-B9 Support, Front Seat Headrest
71931 71930-28030-P1 Support, Front Seat Headrest
71931 71930-28030-C0 Support, Front Seat Headrest
71931 71931-28030-B9 Support, Front Seat Headrest
71931 71931-28030-C0 Support, Front Seat Headrest (BLACK)
71931 71931-28030-P1 Support, Front Seat Headrest
72301 72301-26010 Wire Sub-Assy, Seat Track Equalizing, Rh
72526 72525-26070-B1 Handle, Reclining Adjuster Release, Lh
72526 72525-26070-B5 Handle, Reclining Adjuster Release, Lh
72810 72810-26020-B0 Armrest Assy, Front Seat, Center
72810 72810-26021-B1 Armrest Assy, Front Seat, Center
72810 72810-26022-B2 Armrest Assy, Front Seat, Center
72810 72810-26022-B3 Armrest Assy, Front Seat, Center
72810 72810-26023-B4 Armrest Assy, Front Seat, Center
72878 71877-26020-B6 Cover, Rear Seat Armrest Hole Lh
72878 71877-26020-B9 Cover, Rear Seat Armrest Hole Rh
72890 72890-26200-B0 Armrest Assy, Seat, C Lh
72890 72890-26201-B1 Armrest Assy, Seat, C Lh
72890 72890-26202-B2 Armrest Assy, Seat, C Lh
72890 72890-26202-B3 Armrest Assy, Seat, C Lh
7270226030 72702-26030 Bracket Sub-assy, Rear Seat Back Striker
9010906195 90109-06195 New Genuine Part
9011908079 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011910897 90119-10897 New Genuine Part
9011910903 90119-10903 New Genuine Part
9016740044 90167-40044 BOLT
9017910108 90179-10108 NUT
9038608005 90386-08005 Bush (For Rear Seat Center Armrest)
9038608044 90386-08044 BUSH
9038614007 90386-14007 Bush, Front Seat Armrest, No.1
9046315003 90463-15003 New Genuine Part
9046708008 90467-08008 Clip, Step Plate Cover
9056018011 90560-18011 Spacer, Rear Seat Back Hinge
9161261025 91612-61025 Bolt (For Control Shaft Cover)
9356054012 93560-54012 Screw
9454201400 94542-01400 Spacer, Center Seat Hinge
