KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories
KLH12 ×

← Back to categories

4,821 items

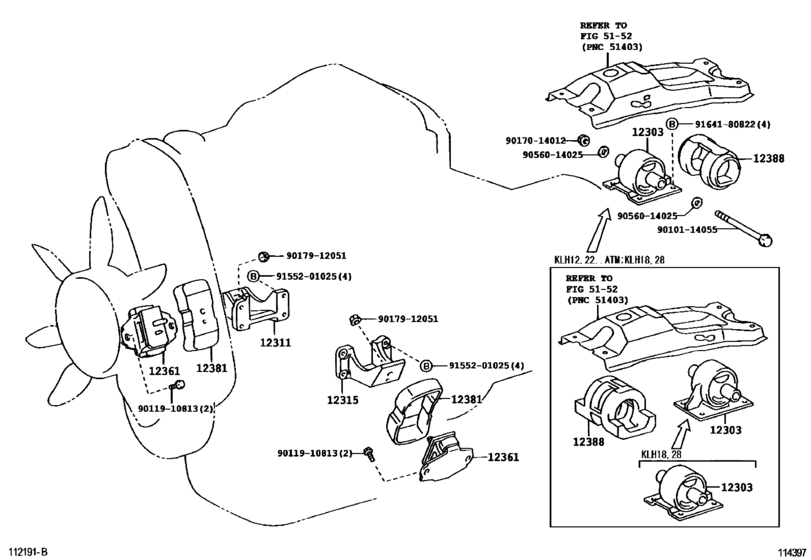

Mounting ([08.2001 - 08.2006] (0108-0608)2KDFTV) 20
#OEMPart name
12303 12303-54050 Bracket Sub-Assy, Engine Mounting, Rear
12311 12311-30050 Bracket, Engine Mounting, Front No.1 Rh
12311 12311-30080 Bracket, Engine Mounting, Front No.1 Rh
12315 12315-30050 Bracket, Engine Mounting, Front No.1 Lh
12315 12315-30080 Bracket, Engine Mounting, Front No.1 Lh
12361 12361-30060 Insulator, Engine Mounting, Front
12361 12361-30090 Insulator, Engine Mounting, Front
12361 12361-67050 Insulator, Engine Mounting, Front
12381 12381-67010 Stabilizer, Engine Mounting
12381 12381-67020 Stabilizer, Engine Mounting
12388 12388-54010 Stopper, Engine Mounting Bracket, Rear
12388 12388-54011 Stopper, Engine Mounting Bracket, Rear
9010114055 90101-14055 New Genuine Part
9011910813 90119-10813 BOLT W-WASHER
9017014012 90170-14012 Nut, Rack End Lock
9017912051 90179-12051 Nut(For Front Stabilizer Link)
9056014025 90560-14025 New Genuine Part
9056014025 90201-14020 WASHER
9155201025 91552-01025 New Genuine Part
9164180822 91641-80822 New Genuine Part
