KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories

4,821 items

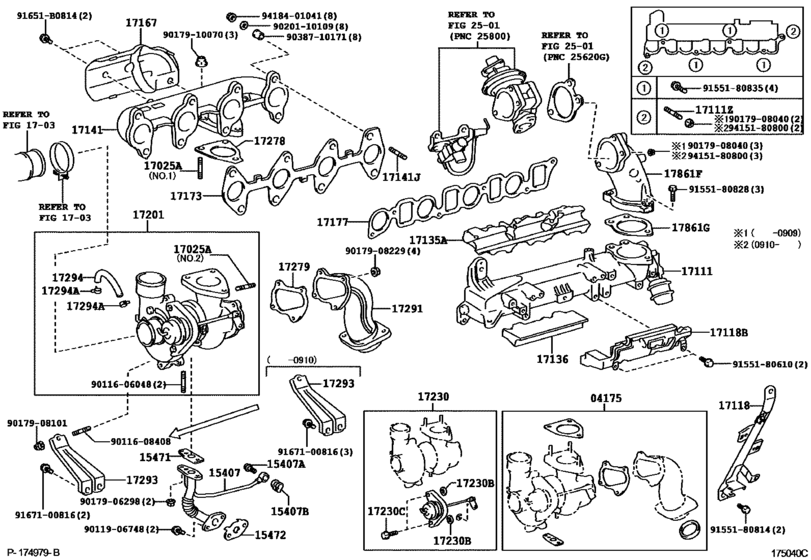

Manifold ([08.2006 - ] (0608- )) 79

#	OEM	Part name
4175	04175-30020	Gasket Kit, Turbocharger
4175	04175-30051	Gasket Kit, Turbocharger
4175	04175-30052	Gasket Kit, Turbocharger
15407	15407-30030	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30033	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30031	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30032	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30060	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30090	Pipe Sub-Assy, Turbo Oil Inlet
15407	15407-30061	Pipe Sub-Assy, Turbo Oil Inlet
15407	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90904-30004	Gasket(For Turbo Oil Inlet Pipe)
15471	15471-30010	Gasket, Turbo Oil Inlet
15471	15471-30011	Gasket, Turbo Oil Inlet
15472	15472-30010	Gasket, Turbo Oil Outlet, No.1
15472	15472-67010	Gasket, Turbo Oil Outlet, No.1
17025	90116-08260	Bolt, Stud(For Turbine Housing)
17025	90116-10175	Bolt, Stud(For Turbine Housing)
17111	17101-30050	Manifold, Intake
17111	17111-30070	Manifold, Intake
17111	17111-30071	Manifold, Intake
17111	92122-80822	Bolt, Stud(For Water Outlet)
17118	17118-30030	Stay, Manifold
17118	17118-30110	Stay, Manifold
17118	17853-30010	Insulator, Intake Manifold
17135	17135-30011	Insulator, Intake Manifold, No.1
17136	17136-30010	Insulator, Intake Manifold, No.2
17141	17141-30030	Manifold, Exhaust
17141	17141-30031	Manifold, Exhaust
17141	90126-10017	Bolt, Stud(For Exhaust Manifold, Rh)
17141	90201-10109	WASHER PLATE
17141	94184-01041	Nut
17141	17141-30060	Manifold, Exhaust
17141	90126-10034	Bolt, Stud(For Exhaust Manifold, Rh)
17141	90126-10037	Bolt, Stud(For Exhaust Manifold, Rh)
17167	17167-30020	Insulator, Exhaust Manifold Heat, No.1
17173	17173-30020	Gasket, Exhaust Manifold To Head
17173	17173-30030	Gasket, Exhaust Manifold To Head
17177	17177-30010	Gasket, Intake Manifold To Head, No.1
17177	17177-30011	Gasket, Intake Manifold To Head, No.1
17201	17201-30030	Turbocharger Sub-Assy
17201	17201-30140	Turbocharger Sub-Assy
17201	17201-30141	Turbocharger Sub-Assy
17230	17230-39025	Actuator Assy, W/bracket
17230	17230-39115	Repair Actuaor Assy, W/bracket
17230	90201-06042	Washer, Plate(For Repair Actuator Set)
17230	90201-06043	Washer, Plate(For Repair Actuator Set)
17230	90201-06044	Washer, Plate(For Repair Actuator Set)
17230	90201-06045	Washer, Plate(For Repair Actuator Set)
17230	91621-60620	Bolt, W/washer(For Repair Actuator Set)
17278	17278-67010	Gasket, Turbo To Exhaust Manifold
17279	17279-30020	Gasket, Turbine Outlet Elbow
17279	17279-30030	Gasket, Turbine Outlet Elbow
17279	17279-30031	Gasket, Turbine Outlet Elbow
17291	17291-30100	Elbow, Turbine Outlet
17293	17293-30080	Stay, Turbocharger
17294	90445-12151	Hose, Actuator
17294	90445-12251	Hose, Actuator
17294	96132-51100	Clip (For Hose)
17861	17861-30100	Connector, Intake Air
17861	26171-30050	Gasket, Diesel Throttle - INTAKE AIR CONNECTOR
91651	91651-B0814	Bolt with washer
91651	90119-A0109	New Genuine Part
9011606048	90116-06048	Bolt, Stud(For Oil Pan)
9011608408	90116-08408	BOLT STUD
9011906748	90119-06748	BOLT WWASHER
9017906298	90179-06298	NUT
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908101	90179-08101	NUT
9017908229	90179-08229	NUT
9017910070	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
9017910070	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
9038710171	90387-10171	Collar(For Exhaust Manifold)
9155180610	91551-80610	BOLT FLANGE
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180828	91551-80828	Bolt, W/washer (For Floor Shift)
9155180835	91551-80835	Bolt (For Front Oil Pump Setting)
9167100816	91671-00816	New Genuine Part
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
04175-30020	Gasket Kit, Turbocharger	Manifold ([08.2006 - ] (0608- ))
04175-30051	Gasket Kit, Turbocharger	Manifold ([08.2006 - ] (0608- ))
04175-30052	Gasket Kit, Turbocharger	Manifold ([08.2006 - ] (0608- ))
15407-30030	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15407-30031	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15407-30032	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15407-30033	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15407-30060	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15407-30061	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15407-30090	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15471-30010	Gasket, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15471-30011	Gasket, Turbo Oil Inlet	Manifold ([08.2006 - ] (0608- ))
15472-30010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2006 - ] (0608- ))
15472-67010	Gasket, Turbo Oil Outlet, No.1	Manifold ([08.2006 - ] (0608- ))
17101-30050	Manifold, Intake	Manifold ([08.2006 - ] (0608- ))
17111-30070	Manifold, Intake	Manifold ([08.2006 - ] (0608- ))
17111-30071	Manifold, Intake	Manifold ([08.2006 - ] (0608- ))
17118-30030	Stay, Manifold	Manifold ([08.2006 - ] (0608- ))
17118-30110	Stay, Manifold	Manifold ([08.2006 - ] (0608- ))
17135-30011	Insulator, Intake Manifold, No.1	Manifold ([08.2006 - ] (0608- ))
17136-30010	Insulator, Intake Manifold, No.2	Manifold ([08.2006 - ] (0608- ))
17141-30030	Manifold, Exhaust	Manifold ([08.2006 - ] (0608- ))
17141-30031	Manifold, Exhaust	Manifold ([08.2006 - ] (0608- ))
17141-30060	Manifold, Exhaust	Manifold ([08.2006 - ] (0608- ))
17167-30020	Insulator, Exhaust Manifold Heat, No.1	Manifold ([08.2006 - ] (0608- ))
17173-30020	Gasket, Exhaust Manifold To Head	Manifold ([08.2006 - ] (0608- ))
17173-30030	Gasket, Exhaust Manifold To Head	Manifold ([08.2006 - ] (0608- ))
17177-30010	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2006 - ] (0608- ))
17177-30011	Gasket, Intake Manifold To Head, No.1	Manifold ([08.2006 - ] (0608- ))
17201-30030	Turbocharger Sub-Assy	Manifold ([08.2006 - ] (0608- ))
17201-30140	Turbocharger Sub-Assy	Manifold ([08.2006 - ] (0608- ))
17201-30141	Turbocharger Sub-Assy	Manifold ([08.2006 - ] (0608- ))
17230-39025	Actuator Assy, W/bracket	Manifold ([08.2006 - ] (0608- ))
17230-39115	Repair Actuaor Assy, W/bracket	Manifold ([08.2006 - ] (0608- ))
17278-67010	Gasket, Turbo To Exhaust Manifold	Manifold ([08.2006 - ] (0608- ))
17279-30020	Gasket, Turbine Outlet Elbow	Manifold ([08.2006 - ] (0608- ))
17279-30030	Gasket, Turbine Outlet Elbow	Manifold ([08.2006 - ] (0608- ))
17279-30031	Gasket, Turbine Outlet Elbow	Manifold ([08.2006 - ] (0608- ))
17291-30100	Elbow, Turbine Outlet	Manifold ([08.2006 - ] (0608- ))
17293-30080	Stay, Turbocharger	Manifold ([08.2006 - ] (0608- ))
17853-30010	Insulator, Intake Manifold	Manifold ([08.2006 - ] (0608- ))
17861-30100	Connector, Intake Air	Manifold ([08.2006 - ] (0608- ))
26171-30050	Gasket, Diesel Throttle - INTAKE AIR CONNECTOR	Manifold ([08.2006 - ] (0608- ))
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.2006 - ] (0608- ))
90116-06048	Bolt, Stud(For Oil Pan)	Manifold ([08.2006 - ] (0608- ))
90116-08260	Bolt, Stud(For Turbine Housing)	Manifold ([08.2006 - ] (0608- ))
90116-08408	BOLT STUD	Manifold ([08.2006 - ] (0608- ))
90116-10175	Bolt, Stud(For Turbine Housing)	Manifold ([08.2006 - ] (0608- ))
90119-06748	BOLT WWASHER	Manifold ([08.2006 - ] (0608- ))
90119-A0109	New Genuine Part	Manifold ([08.2006 - ] (0608- ))
90126-10017	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2006 - ] (0608- ))
90126-10034	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2006 - ] (0608- ))
90126-10037	Bolt, Stud(For Exhaust Manifold, Rh)	Manifold ([08.2006 - ] (0608- ))
90179-06298	NUT	Manifold ([08.2006 - ] (0608- ))
90179-08040	Nut, Cap(For Cylinder Head Cover)	Manifold ([08.2006 - ] (0608- ))
90179-08101	NUT	Manifold ([08.2006 - ] (0608- ))
90179-08229	NUT	Manifold ([08.2006 - ] (0608- ))
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([08.2006 - ] (0608- ))
90201-06042	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2006 - ] (0608- ))
90201-06043	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2006 - ] (0608- ))
90201-06044	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2006 - ] (0608- ))
90201-06045	Washer, Plate(For Repair Actuator Set)	Manifold ([08.2006 - ] (0608- ))
90201-10109	WASHER PLATE	Manifold ([08.2006 - ] (0608- ))
90387-10171	Collar(For Exhaust Manifold)	Manifold ([08.2006 - ] (0608- ))
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([08.2006 - ] (0608- ))
90445-12151	Hose, Actuator	Manifold ([08.2006 - ] (0608- ))
90445-12251	Hose, Actuator	Manifold ([08.2006 - ] (0608- ))
90904-30004	Gasket(For Turbo Oil Inlet Pipe)	Manifold ([08.2006 - ] (0608- ))
91551-80610	BOLT FLANGE	Manifold ([08.2006 - ] (0608- ))
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Manifold ([08.2006 - ] (0608- ))
91551-80828	Bolt, W/washer (For Floor Shift)	Manifold ([08.2006 - ] (0608- ))
91551-80835	Bolt (For Front Oil Pump Setting)	Manifold ([08.2006 - ] (0608- ))
91621-60620	Bolt, W/washer(For Repair Actuator Set)	Manifold ([08.2006 - ] (0608- ))
91651-B0814	Bolt with washer	Manifold ([08.2006 - ] (0608- ))
91671-00816	New Genuine Part	Manifold ([08.2006 - ] (0608- ))
92122-80822	Bolt, Stud(For Water Outlet)	Manifold ([08.2006 - ] (0608- ))
94151-80800	Nut (For Transmission Control Cable)	Manifold ([08.2006 - ] (0608- ))
94184-01041	Nut	Manifold ([08.2006 - ] (0608- ))
96132-51100	Clip (For Hose)	Manifold ([08.2006 - ] (0608- ))
