KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories
KLH12 ×

← Back to categories

4,821 items

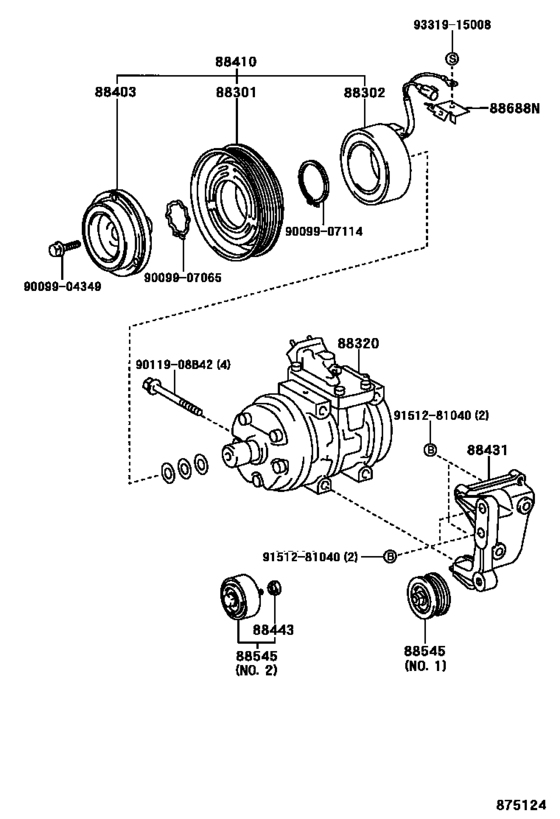

Heating & Air Conditioning - Compressor ([08.2001 - 08.2006] (0108-0608)KLH1#,2#) 17
#OEMPart name
88301 88412-28090 Rotor Sub-Assy, Magnet Clutch
88302 88411-44010 Stator Sub-Assy, Magnet Clutch
88320 88320-25110 Compressor Assy, Cooler
88320 88320-2F060 Compressor Assy, Cooler
88403 88403-32010 Hub Sub-Assy, Magnet Clutch
88410 88410-28200 Clutch Assy, Magnet
88431 88431-25240 Bracket, Compressor Mounting, No.1
88431 88420-35161 Bracket, Compressor Mounting, No.1
88545 88440-25060 Pulley Assy, Idle No.2
88545 88440-35090 Pulley Assy, Idle
88688 88569-35170 Bracket, Cooler Compressor
9011908 90119-08B42 BOLT WWASHER
9009904349 90099-04349 Bolt, Magnet Clutch Setting
9009907065 90099-07065 SNAP RING
9009907114 90099-07114 Ring, Snap (For Magnet Clutch)
9151281040 91512-81040 BOLTFLANGE
9331915008 93319-15008 SCREW
