Search › Model › KLH12

KLH12

Toyota HIACE · 2001 · 4,821 parts · 269 categories

4,821 items

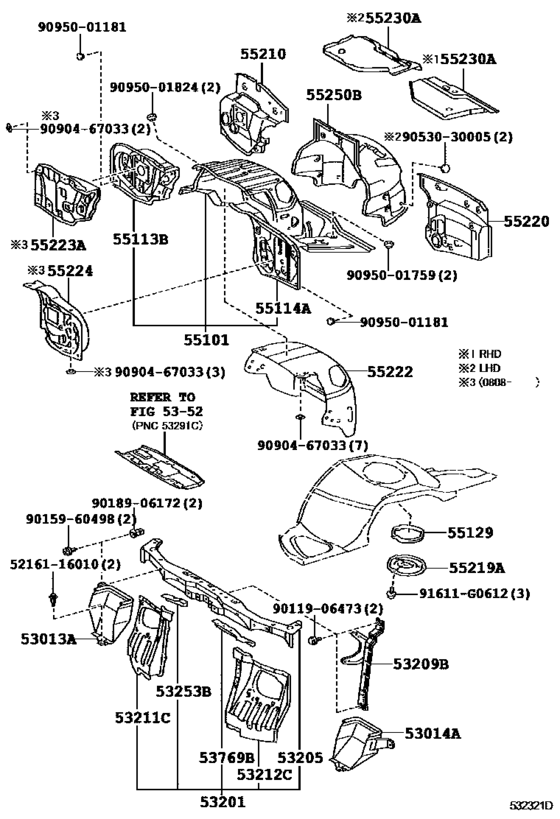

Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )) 60

#	OEM	Part name
53013	53013-26030	Guide Sub-Assy, Front Side Air, Rh
53014	53014-26030	Guide Sub-Assy, Front Side Air, Lh
53201	53201-26011	Support Sub-Assy, Radiator
53201	53201-26040	Support Sub-Assy, Radiator
53201	53201-26030	Support Sub-Assy, Radiator
53205	53216-26010	Support Sub-Assy, Radiator, Upper
53205	53216-26030	Support Sub-Assy, Radiator, Upper
53209	53209-26020	Brace Sub-Assy, Hood Lock Support
53209	53209-26060	Brace Sub-Assy, Hood Lock Support
53211	53211-26041	Support, Radiator, Rh
53211	53211-26060	Support, Radiator, Rh
53212	53212-26041	Support, Radiator, Lh
53212	53212-26060	Support, Radiator, Lh
53253	53253-26010	Bracket, Radiator Mounting, Upper
53253	53253-26030	Bracket, Radiator Mounting, Upper
53769	53769-26010	Bracket, Power Steering Reservoir Tank Mounting
53769	53769-26060	Bracket, Power Steering Reservoir Tank Mounting
55101	55110-26651	Panel Sub-Assy, Dash
55101	55110-26652	New Genuine Part
55101	87268-26020	Cock, Water Hose Drain(for Rear Heater)
55101	55110-26C30	Panel Sub-Assy, Dash
55101	55110-26C31	Panel Sub-Assy, Dash
55113	55113-26050	Panel Sub-Assy, Dash Side, Rh
55113	55113-26110	Panel Sub-Assy, Dash Side, Rh
55113	55113-26111	Panel Sub-Assy, Dash Side, Rh
55114	55018-26040	Panel Sub-Assy, Dash Side, Lh
55114	55018-26130	Panel Sub-Assy, Dash Side, Lh
55114	55018-26131	Panel Sub-Assy, Dash Side, Lh
55129	55129-26010	Cover, Dash Panel Hole
55210	55210-26070	Insulator Assy, Dash Panel
55210	55210-26140	Insulator Assy, Dash Panel
55210	55210-26141	Insulator Assy, Dash Panel
55210	55210-26142	Insulator Assy, Dash Panel
55219	55219-26010	Packing, Dash Panel Hole Cover
55220	55220-26020	Insulator Assy, Dash Panel, No.2
55220	55220-26120	Insulator Assy, Dash Panel, No.2
55220	55220-26121	Insulator Assy, Dash Panel, No.2
55220	55220-26122	Insulator Assy, Dash Panel, No.2
55222	55222-26010	Insulator, Dash Panel, Outer Center
55222	55222-26050	Insulator, Dash Panel, Outer Center
55222	55222-26051	Insulator, Dash Panel, Outer Center
55223	55223-26060	Insulator, Dash Panel, Outer
55224	55224-26040	Insulator, Dash Panel, Outer Lh
55230	55230-26010	Insulator Assy, Dash Panel, No.4
55230	55230-26011	Insulator Assy, Dash Panel, No.4
55250	55250-26090	Insulator Assy, Dush Panel, No.3
55250	55250-26150	Insulator Assy, Dush Panel, No.3
55250	55250-26151	Insulator Assy, Dush Panel, No.3
91611	91611-G0612	Bolt
5216116010	52161-16010	Clip
5216116010	52161-0K040	Clip
5216116010	52161-02020	Clip
9011906473	90119-06473	BOLTWWASHER
9015960498	90159-60498	SCREW W-WASHER
9018906172	90189-06172	GROMMET
9053030005	90530-30005	New Genuine Part
9090467033	90904-67033	Clip(For Deck Board No.1)
9095001181	90950-01181	Plug, Hole(For Front Fender Apron)
9095001759	90950-01759	PLUG
9095001824	90950-01824	PLUG HOLE

OEM	Part name	Category
52161-02020	Clip	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
52161-0K040	Clip	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
52161-16010	Clip	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53013-26030	Guide Sub-Assy, Front Side Air, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53014-26030	Guide Sub-Assy, Front Side Air, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53201-26011	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53201-26030	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53201-26040	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53209-26020	Brace Sub-Assy, Hood Lock Support	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53209-26060	Brace Sub-Assy, Hood Lock Support	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53211-26041	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53211-26060	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53212-26041	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53212-26060	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53216-26010	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53216-26030	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53253-26010	Bracket, Radiator Mounting, Upper	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53253-26030	Bracket, Radiator Mounting, Upper	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53769-26010	Bracket, Power Steering Reservoir Tank Mounting	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
53769-26060	Bracket, Power Steering Reservoir Tank Mounting	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55018-26040	Panel Sub-Assy, Dash Side, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55018-26130	Panel Sub-Assy, Dash Side, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55018-26131	Panel Sub-Assy, Dash Side, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55110-26651	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55110-26652	New Genuine Part	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55110-26C30	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55110-26C31	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55113-26050	Panel Sub-Assy, Dash Side, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55113-26110	Panel Sub-Assy, Dash Side, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55113-26111	Panel Sub-Assy, Dash Side, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55129-26010	Cover, Dash Panel Hole	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55210-26070	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55210-26140	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55210-26141	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55210-26142	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55219-26010	Packing, Dash Panel Hole Cover	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55220-26020	Insulator Assy, Dash Panel, No.2	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55220-26120	Insulator Assy, Dash Panel, No.2	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55220-26121	Insulator Assy, Dash Panel, No.2	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55220-26122	Insulator Assy, Dash Panel, No.2	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55222-26010	Insulator, Dash Panel, Outer Center	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55222-26050	Insulator, Dash Panel, Outer Center	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55222-26051	Insulator, Dash Panel, Outer Center	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55223-26060	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55224-26040	Insulator, Dash Panel, Outer Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55230-26010	Insulator Assy, Dash Panel, No.4	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55230-26011	Insulator Assy, Dash Panel, No.4	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55250-26090	Insulator Assy, Dush Panel, No.3	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55250-26150	Insulator Assy, Dush Panel, No.3	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
55250-26151	Insulator Assy, Dush Panel, No.3	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
87268-26020	Cock, Water Hose Drain(for Rear Heater)	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
90119-06473	BOLTWWASHER	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
90159-60498	SCREW W-WASHER	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
90189-06172	GROMMET	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
90530-30005	New Genuine Part	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
90904-67033	Clip(For Deck Board No.1)	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
90950-01181	Plug, Hole(For Front Fender Apron)	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
90950-01759	PLUG	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
90950-01824	PLUG HOLE	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))
91611-G0612	Bolt	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- ))

Source: Public OEM parts-catalog data
Variants: 1 / 28
Category: 269
Collected: 2026-08-03
